Electrical characteristics

STM32F427xx STM32F429xx

158/231

DocID024030 Rev 6

General PCB design guidelines

Power supply decoupling should be performed as shown in Figure 52 or Figure 53,

depending on whether VREF+ is connected to VDDA or not. The 10 nF capacitors should be

ceramic (good quality). They should be placed them as close as possible to the chip.

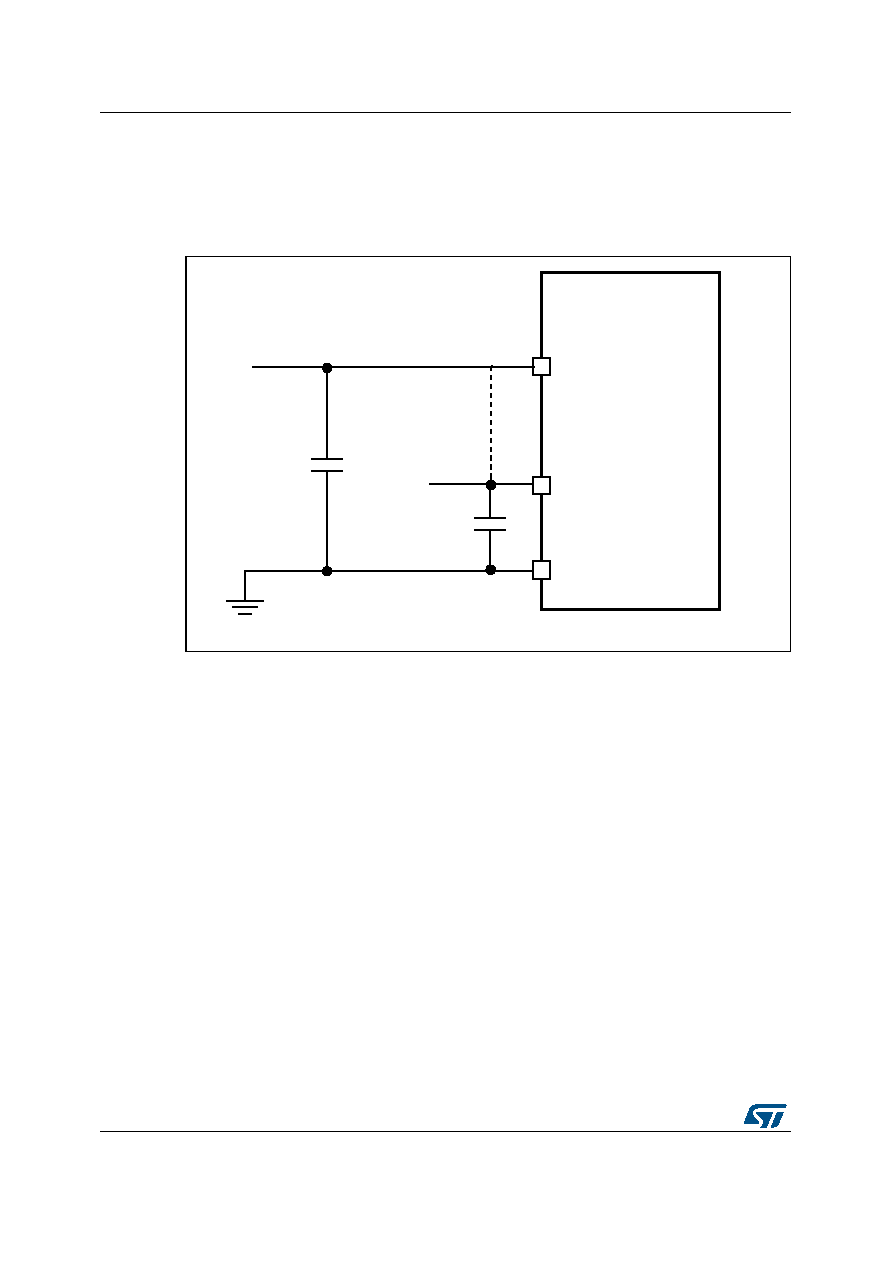

Figure 52. Power supply and reference decoupling (VREF+ not connected to VDDA)

1. VREF+ and VREF– inputs are both available on UFBGA176. VREF+ is also available on LQFP100, LQFP144,

and LQFP176. When VREF+ and VREF– are not available, they are internally connected to VDDA and VSSA.
