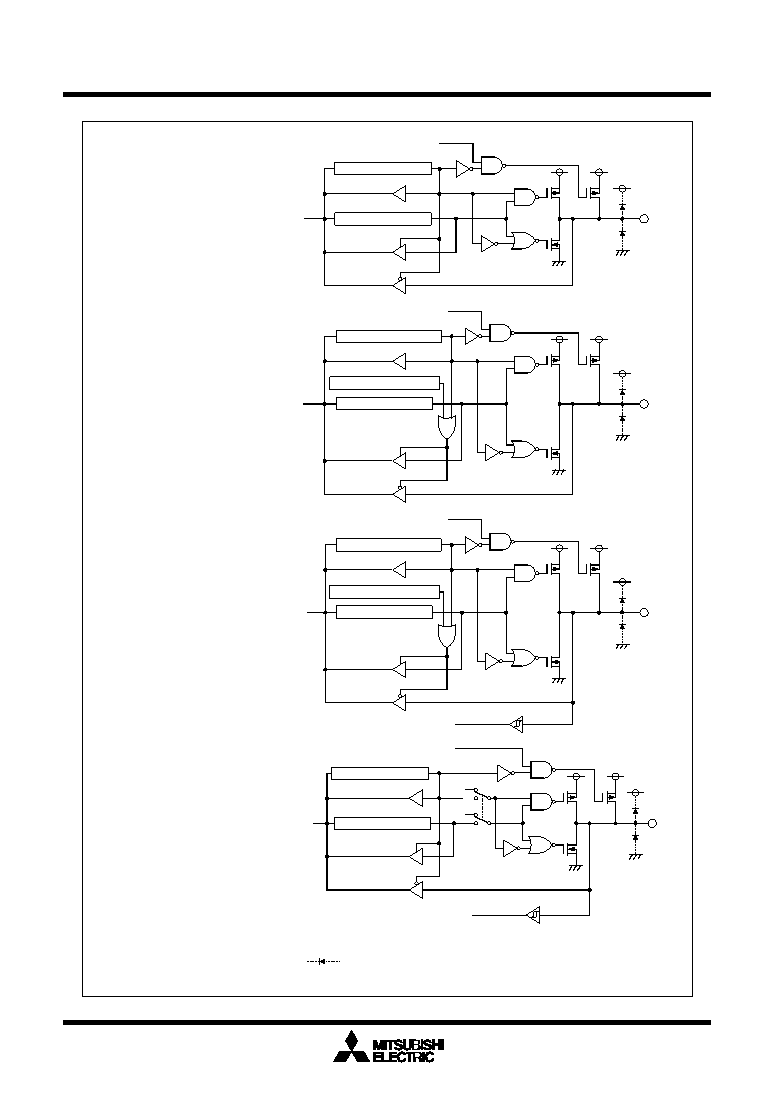

162 / 274 page  Mitsubishi microcomputers M16C / 62A Group SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER Programmable I/O Port 162 Figure 1.20.1. Programmable I/O ports (1) P00 to P07, P20 to P27, P30 to P37, P40 to P47, P50 to P54, P56 P10 to P14 P15 to P17 P57, P60, P61, P64, P65, P72 to P76, P80, P81, P90, P92 Data bus Direction register Pull-up selection Port latch Data bus Direction register Pull-up selection Port latch Port P1 control register Direction register Port latch Port P1 control register Pull-up selection Data bus Input to respective peripheral functions Direction register Port latch Pull-up selection Data bus Input to respective peripheral functions Note :1 symbolizes a parasitic diode. Do not apply a voltage higher than Vcc to each port. "1" Output (Note) (Note) (Note) (Note) |
|
