19. Pin Definitions
19.1. Pin Definitions

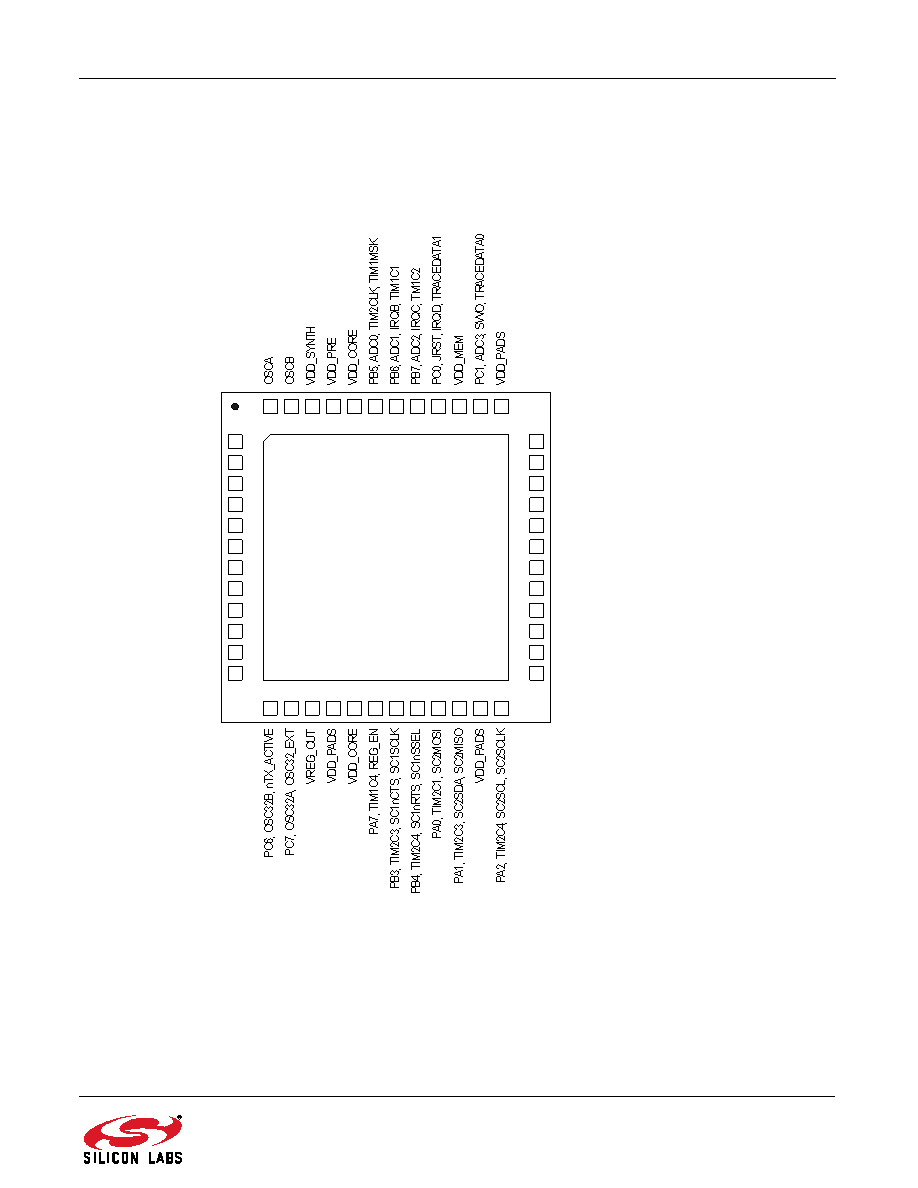

Figure 19.1. EM35x Pin Definitions
Refer to "7. GPIO (General Purpose Input/Output)" on page 50 for details about selecting GPIO pin functions.
