21. Top Marking

Figure 21.1 shows the part marking for the EM35x Series. The circle in the top corner indicates Pin 1. Pins are

numbered counter-clockwise from Pin 1 with 12 pins per package edge.

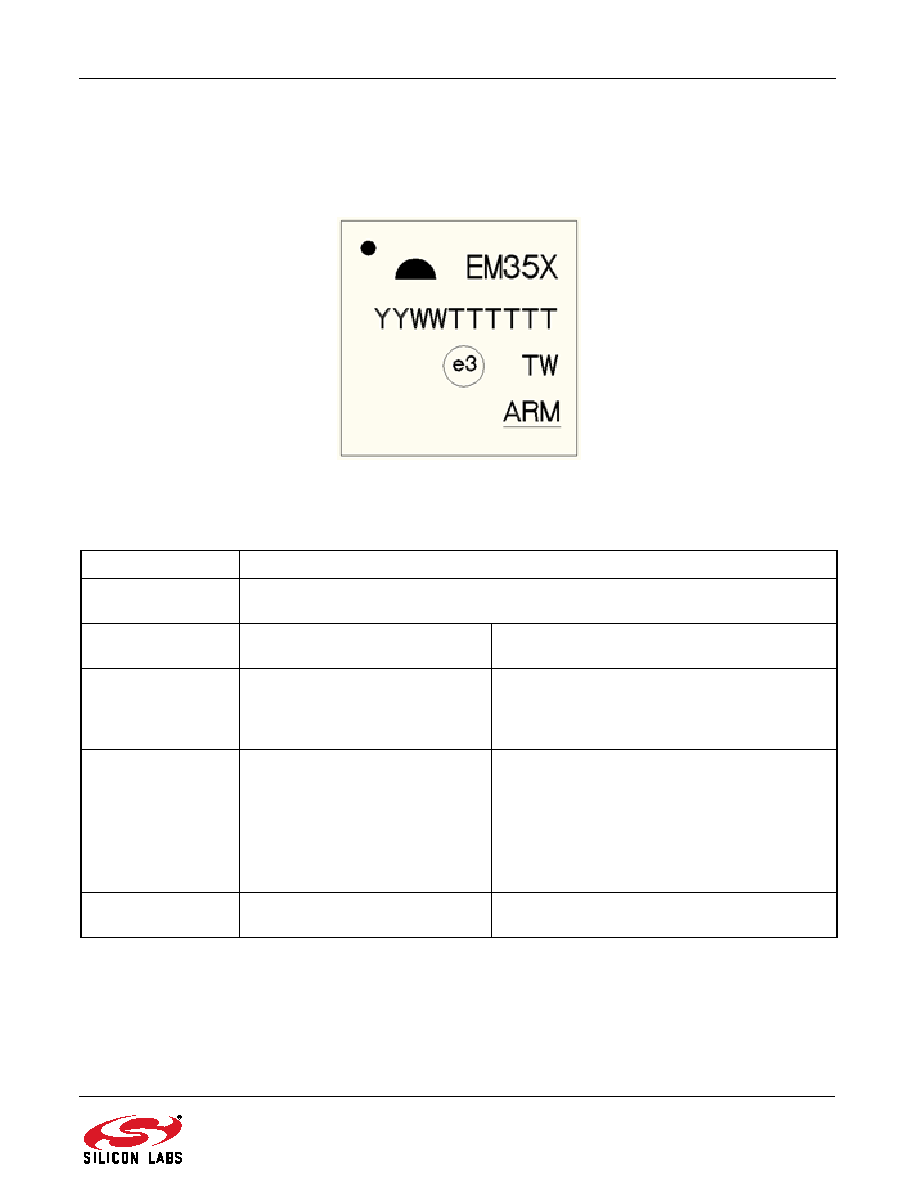

Figure 21.1. Part Marking for EM35x

Table 21.1. 48-Pin QFN Top Marking Explanation

Mark Method:

Laser

Pin 1 Marking:

Circle = 0.40 mm Diameter

(Top-Left Justified)

Line 1 Marking:

Logo and Device Part Number

Right Justified

Half circle logo. EM35x is the orderable part num-

ber variant (EM357/EM351).

Line 2 Marking:

TTTTTT = Mfg Code

YY=Year

WW-Work Week

Manufacturing Code from the Assembly Purchase

form. Assigned by the Assembly House. Corre-

sponds to the year and work week.

Right Justified

Line 3 Marking:

Circle = 1.3 mm Diameter

Center Justified

Country of Origin

ISO abbreviation

Right Justified

“e3” indicates Sn solder finish.

Line 4 Marking:

ARM

Right Justified

ARM right justified with underline.
