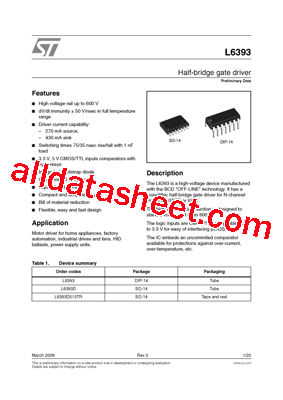

Description

The L6393 is a high-voltage device manufactured with the BCD “OFF-LINE” technology. It is a single chip half-bridge gate driver for N-channel power MOSFET or IGBT.

Features

■ High voltage rail up to 600 V

■ dV/dt immunity ± 50 V/nsec in full temperature range

■ Driver current capability:

– 290 mA source,

– 430 mA sink

■ Switching times 75/35 nsec rise/fall with 1 nF load

■ 3.3 V, 5 V CMOS/TTL inputs comparators with hysteresis

■ Integrated bootstrap diode

■ Uncommitted comparator

■ Adjustable dead-time

■ Compact and simplified layout

■ Bill of material reduction

■ Flexible, easy and fast design

Application

■ Motor driver for home appliances

■ Factory automation

■ Industrial drives and fans

■ HID ballasts

■ Power supply units
