Metal Alloy Current Sensors

www.ctparts.com

CTCSS

Series

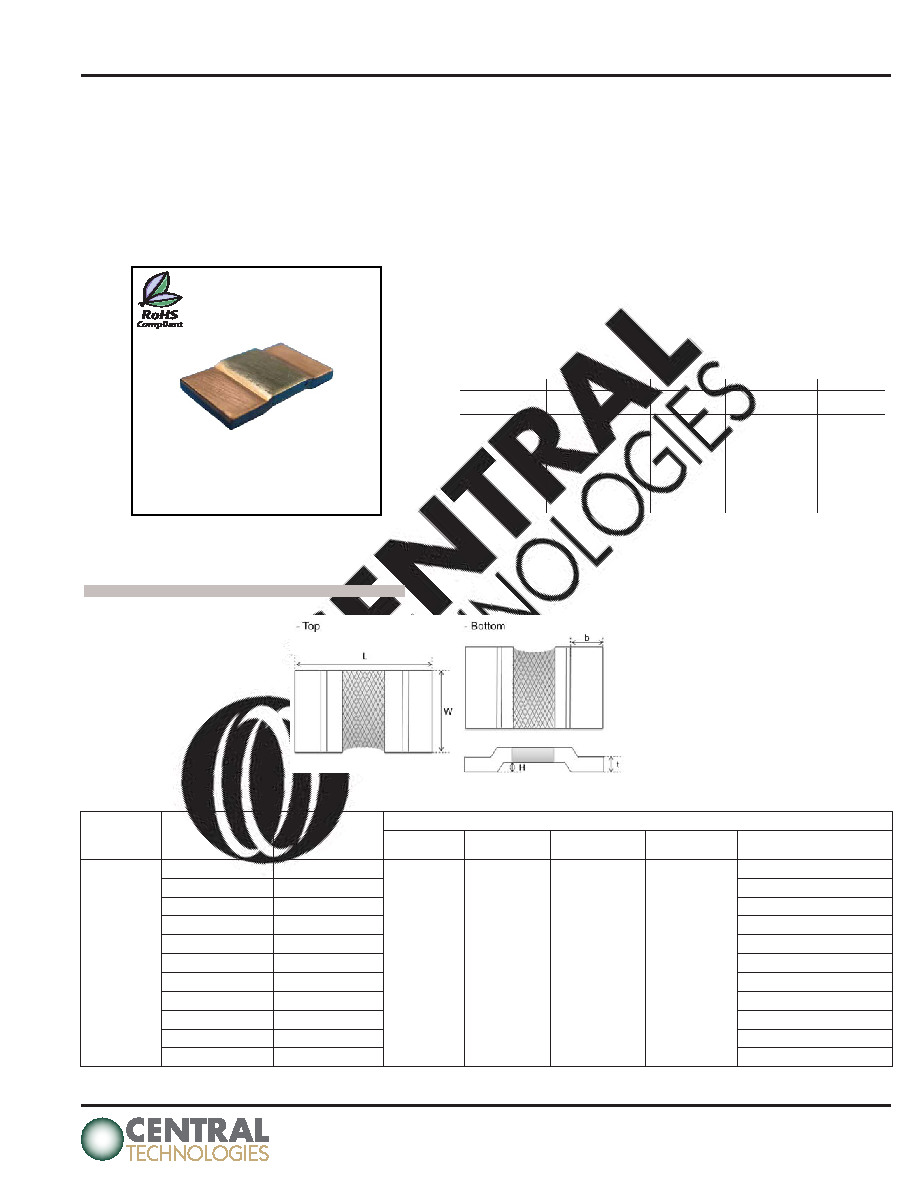

CONFIGURATION AND DIMENSIONS

Not Shown at Actual Size

CHARACTERISTICS

Description: Metal Alloy Current Sensors

Features:

•

LOW T.C.R.

•

Wide Resistance range

•

Short time over load for 5 seconds

•

High Surge Power

•

RoHS, PFOS, PFOA, Halogen Free and REACH Compliant

•

Anti-sulfurated

Operating Temperature: -55°C to +170°C

Applications: Power Converter, Overload Protection, Linear Motor Control,

SwitchingConverter,PowerAmplifier,RFTotalPower

Samples available. See website for ordering information.

PRODUCT IDENTIFICATION

CTCSS

3921

4

R001XX

F

Product Series

Dimensions Code

(Inch)

Rated

Power

Resistance

(6 Digits)

Tolerance

Metal Alloy

3921

2=2.0W

R001XX=1mΩ

F=±1%

Low Resistance

5931

3=3.0W

R002XX=2mΩ

G=±2%

Shunt Resistor

4=4.0W

R003XX=3mΩ

J=±5%

5=5.0W

R005XX=5mΩ

6=6.0W

R00002=0.2mΩ

7=7.0W

R00005=0.5mΩ

9=9.0W

10=10W

CTCSS3921/5931

Type

Maximum Power

Rating

(Watts)

Resistance Range

(mΩ)

Dimensions - in Inches (millimeters)

L

W

H

b

t

CTCSS3921

9

0.2

0.394±0.01

(10±0.254)

0.205±0.01

(5.2±0.254)

0.0197±0.004

(0.5±0.1)

0.0787±0.024

(2±0.6)

0.051±0.006(1.3±0.15)

9

0.3

0.051±0.006(1.3±0.15)

5

0

0.039±0.006(1.0±0.15)

5

0.2

0.051±0.006(1.3±0.15)

5

0.3

0.051±0.006(1.3±0.15)

5

0.5

0.033±0.006(0.88±0.15)

4

1

0.017±0.006(0.43±0.15)

4

2

0.027±0.006(0.69±0.15)

3

3

0.017±0.006(0.43±0.15)

3

4

0.014±0.006(0.35±0.15)

2

5

0.014±0.006(0.35±0.15)
