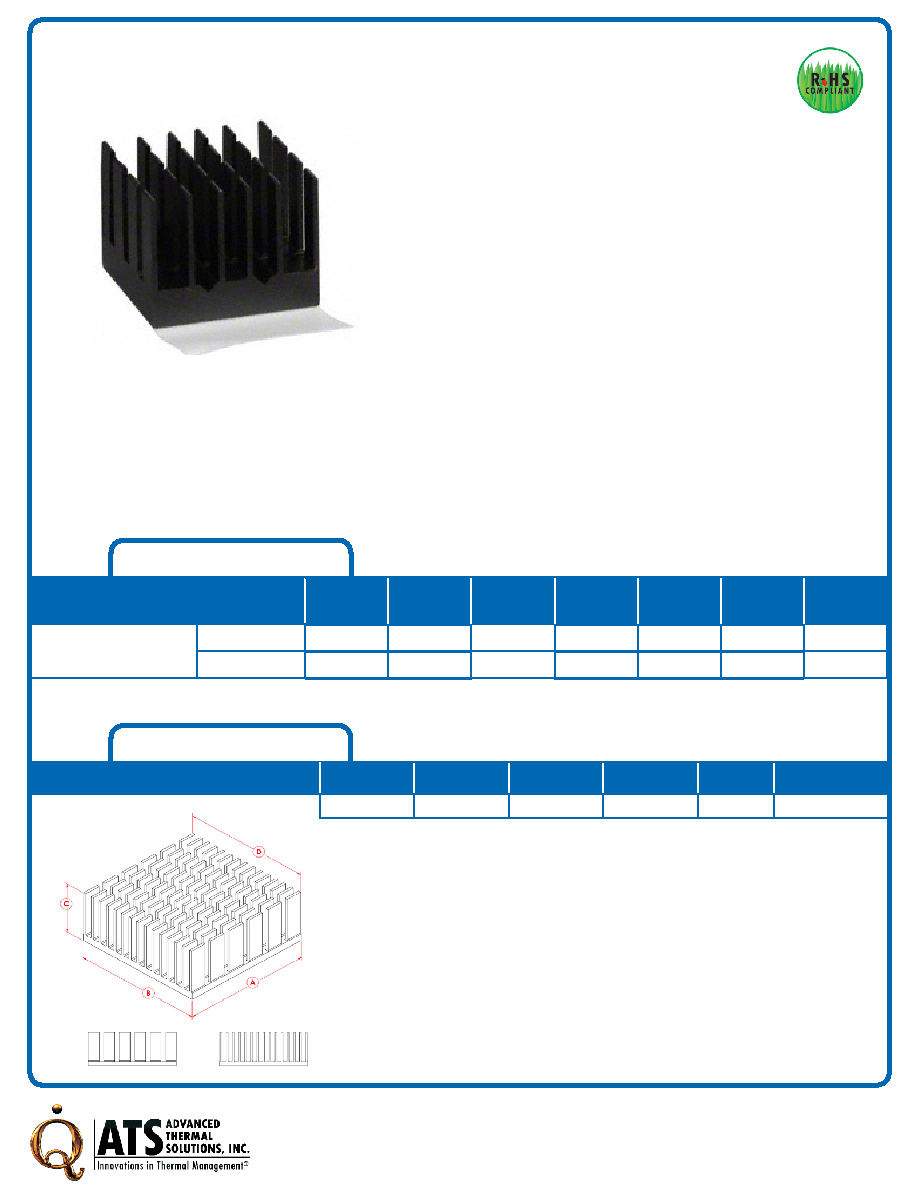

High Performance BGA Cooling Solutions

REV1_1116

Features & Benefits

*Image above is for illustration purposes only.

ATS Part#:

ATS-55190K-C0-R0

Description:

High Performance X-CUT -

Heat Sink, BLACK-ANODIZED

Heat Sink Type:

Cross-Cut

Heat Sink Attachment:

N/A

Equivalent Part Number:

None

Product Details

SCHEMATIC IMAGE

Dimension A Dimension B Dimension C Dimension D

TIM

Finish

19.0 mm

19.0 mm

14.5 mm

19.0 mm

N/A

Black-Anodized

NOTES:

1)

Dimension A and B refer to component size.

2)

Dimension C is the heat sink height from the bottom of the base to the top of the fin field.

3)

Thermal performance data are provided for reference only. Actual performance may vary

byapplication.

4)

ATS reserves the right to update or change its products without notice to improve the

design orperformance.

5)

ATS certifies that this heat sink assembly is RoHS-6 and REACH compliant.

6)

Contact ATS to learn about custom options available.

Thermal Performance

AIR VELOCITY

@200 LFM

1.0 M/S

@300 LFM

1.5 M/S

@400 LFM

2.0 M/S

@500 LFM

2.5 M/S

@600 LFM

3.0 M/S

@700 LFM

3.5 M/S

@800 LFM

4.0 M/S

THERMAL RESISTANCE

Unducted Flow

13.1°C/W

11.5°C/W

10.0°C/W

9.1°C/W

8.4°C/W

7.8°C/W

7.3°C/W

Ducted Flow

n/a

n/a

n/a

n/a

n/a

n/a

n/a

For further technical information, please contact Advanced Thermal Solutions, Inc.

89-27 ACCESS ROAD, NORWOOD, MA 02062 USA | T: 781.769. 2800 F: 781.769.9979 | WWW.QATS.COM
