Cool-Power® ZVS Switching Regulators

Rev 1.5

Page 20 of 41

03/2018

PI352x-00

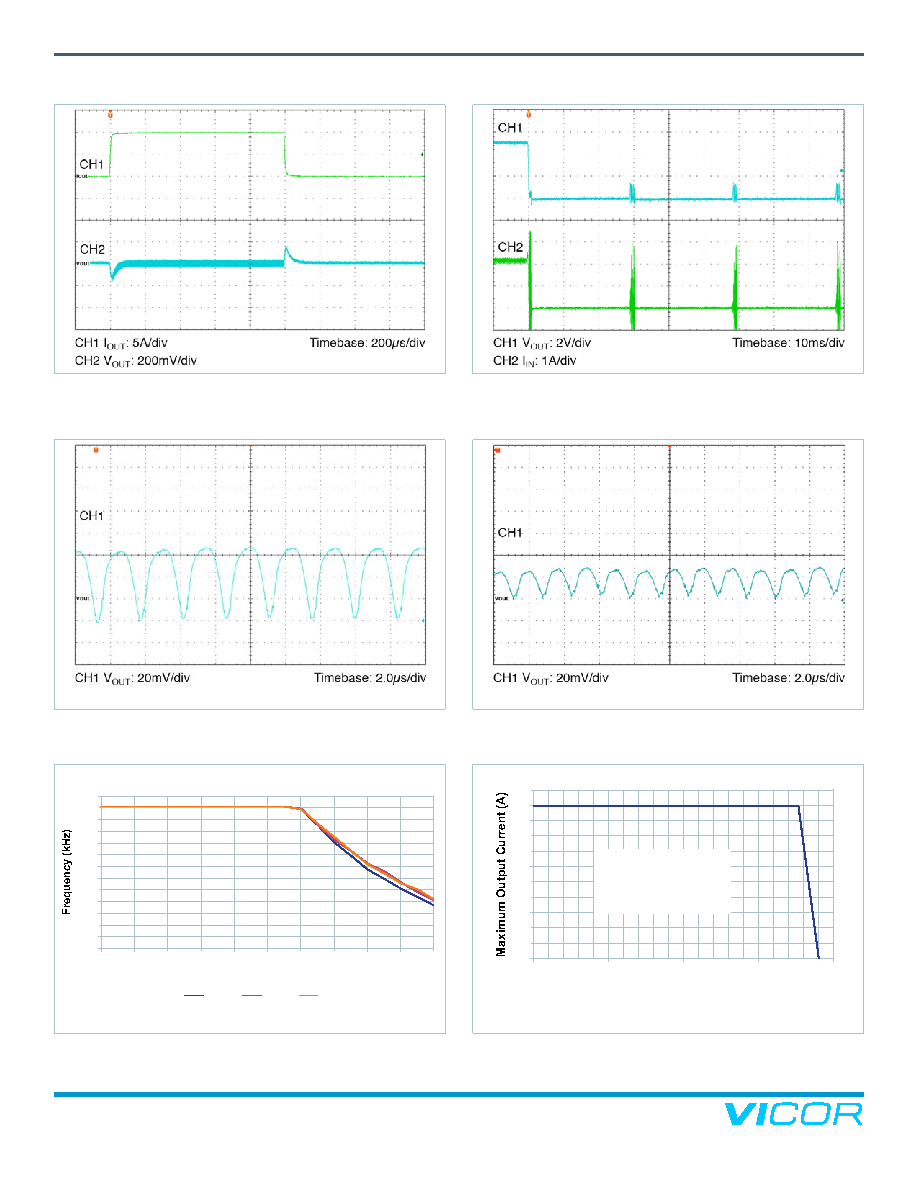

Figure 48 — Transient Response: 50% to 100% load, at 1A/µs.

Nominal Line, Nominal Trim,

COUT = 12 x 47µF Ceramic

Figure 52 — Output Voltage Ripple: Nominal Line, Nominal Trim,

50% load, COUT = 12 x 47µF Ceramic

Figure 51 — Output Short Circuit, Nominal Line

Figure 49 — Output Voltage Ripple: Nominal Line, Nominal Trim,

100% load, COUT = 12 x 47µF Ceramic

Figure 50 — Switching Frequency vs. Load, Nominal Trim

Figure 53 — System Thermal Specified Operating Area: Max IOUT

at Nominal Trim vs. temperature at locations noted

PI3525-00 (5VOUT) Electrical Characteristics (Cont.)

Temperature of Isothermal SiP VIN and VS1 pins,

and PCB at Inductor (ºC)

100125

Note:

SiP is based on VIN and VS1 paths

only. Inductor is based on base with

inclusion of GEL 30 interface

resistance (0.15mm thick; 3.5W/m-K

thermal conductivity), and all leads.

Load Current (A)

30V

48V

60V

300

325

350

375

400

425

450

475

500

525

550

575

600

625

8101214161820
