4100 Series

Toroidal Surface Mount Inductors

Murata Power Solutions, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other

technical information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply

the granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without

notice.

© 2018 Murata Power Solutions, Inc.

Murata Power Solutions, Inc.

11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.

ISO 9001 and 14001 REGISTERED

www.murata-ps.com/support

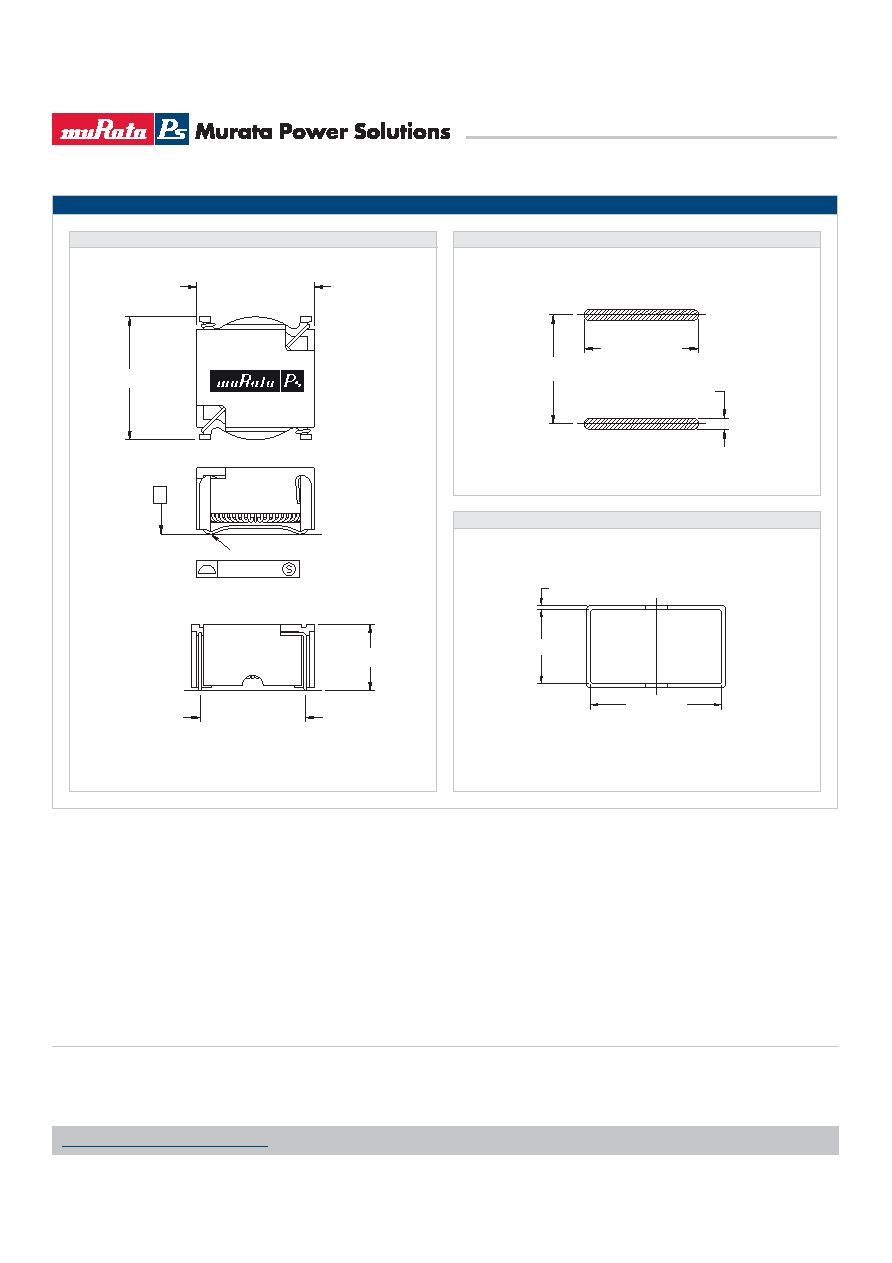

PACKAGE SPECIFICATIONS

MECHANICAL DIMENSIONS

RECOMMENDED FOOTPRINT DETAILS

TUBE OUTLINE DIMENSIONS

All dimensions in mm (inches).

Package weight 5.6g Typ.

All dimensions in mm (inches).

Tube quantity: 25

Tube material: Antistatic coated clear PVC

Tube length: 475±2mm (18.701±0.079)

All dimensions in mm (inches).

16.76 (0.660) Max.

17.53 (0.690) Max.

XYYWW

41330C

0.127 (0.005)

x4 Places

S

15.58 (0.614)

14.01 (0.552)

9.91 (0.390) Max.

15.75 (0.620)

14.99 (0.590)

1.52 (0.060)

18.00 (0.709)

10.10 (0.398)

0.60±0.15 (0.024±0.006)
