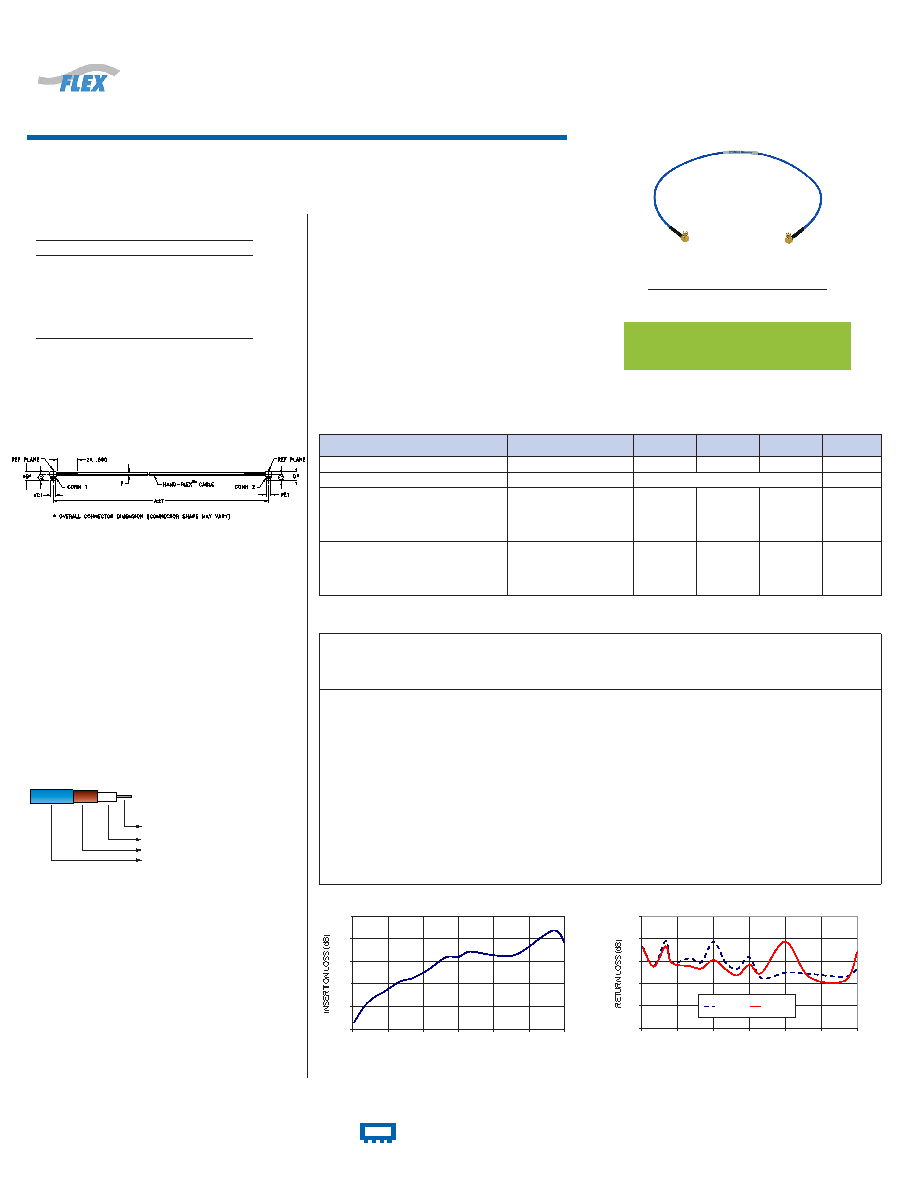

50Ω

6 inch

DC to 18 GHz

Coaxial Cable

REV. OR

M166698

047-6SMPR+

WP/RS/CP

180316

0.0

0.2

0.4

0.6

0.8

1.0

0

3000

6000

9000

12000

15000

18000

FREQUENCY (MHz)

047-6SMPR+

INSERTION LOSS

Frequency

(MHz)

Insertion Loss

(dB)

Return Loss

(dB)

Right angle

SMP-Female

Right angle

SMP-Female

0

10

20

30

40

50

0

3000

6000

9000

12000

15000

18000

FREQUENCY (MHz)

047-6SMPR+

RETURN LOSS

SMPR-FEM

SMPR-FEM

047-6SMPR+

100

0.06

36.2

35.9

1000

0.21

27.6

27.5

2000

0.29

39.1

36.7

2500

0.32

29.4

29.2

4000

0.42

31.3

27.8

5000

0.45

29.6

26.7

6000

0.50

39.0

30.6

7000

0.57

29.4

26.5

8000

0.64

26.7

23.6

9000

0.64

31.8

28.5

10000

0.69

22.3

24.7

12000

0.65

24.9

38.8

14000

0.66

24.4

22.8

17000

0.87

23.0

21.3

18000

0.77

26.7

34.0

Outline Dimensions (

)

inch

mm

CASE STYLE: BZ2421H6

Cable Construction

Center Conductor: Silver Plated Copper Clad Steel

Dialectric: Solid PTFE

Outer Shield: Copper braid, tin soaked

Jacket: FEP, Blue (Unjacketed cable also available

upon request)

Connectors: Coupling Nut: Stainless Steel Passivated

Body: Stainless Steel Gold Plated

Center Pin: Brass Gold Plated

Outline Drawing

HAND

TM

Features

• Wideband frequency coverage, DC to 18 GHz

• Low Loss, 0.77 dB at 18 GHz

• Excellent Return Loss, 26 dB at 18 GHz

• Hand formable to almost any custom shape without

special bending tools

• 3.2mm bend radius for tight installations

• Connector interface, meets MIL-STD-348

•

Ideal for interconnect of assembled systems

Applications

• Replacement for custom bent 0.047" semi-rigid cables

• Communication receivers and transmitters

• Military and aerospace system

• Environmental and test chambers

Maximum Ratings

Operating Temperature

-45°C to 85°C

Storage Temperature

-45°C to 85°C

Power Handling at 25°C, 22.5W at 0.5 GHz

Sea Level

15.5W at

1 GHz

11W at

2 GHz

5.5W at

6 GHz

4.6W at 10 GHz

4.5W at 18 GHz

Permanent damage may occur if any of these limits are exceeded.

+RoHS Compliant

The +Suffix identifies RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualifications

Electrical Specifications at 25°C

Parameter

Condition (GHz)

Min.

Typ.

Max.

Unit

Frequency Range

DC

18

GHz

6

Inches

Insertion Loss

DC - 2

—

0.21

0.52

dB

2 - 6

—

0.37

0.97

6 - 10

—

0.55

1.22

10 - 18

—

0.75

1.66

Return Loss

DC - 2

20

30

—

dB

2 - 6

20

33

—

6 - 10

17

31

—

10 - 18

17

25

—

Typical Performance Data

1. Custom sizes available, consult factory.

A

B

C1

C2

D

E1

6.0

.14

.135

.287

.14

.135

152.40

3.56

3.43

7.29

3.56

3.43

E2

F

T

wt

.289

.069

0.05

grams

7.34

1.75

1.27

2.20

Connectors

Model

Right Angle SMP-Female

047-6SMPR+

Notes

A. Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.

B. Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

C. The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled

to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
