ST4G3234
2/11

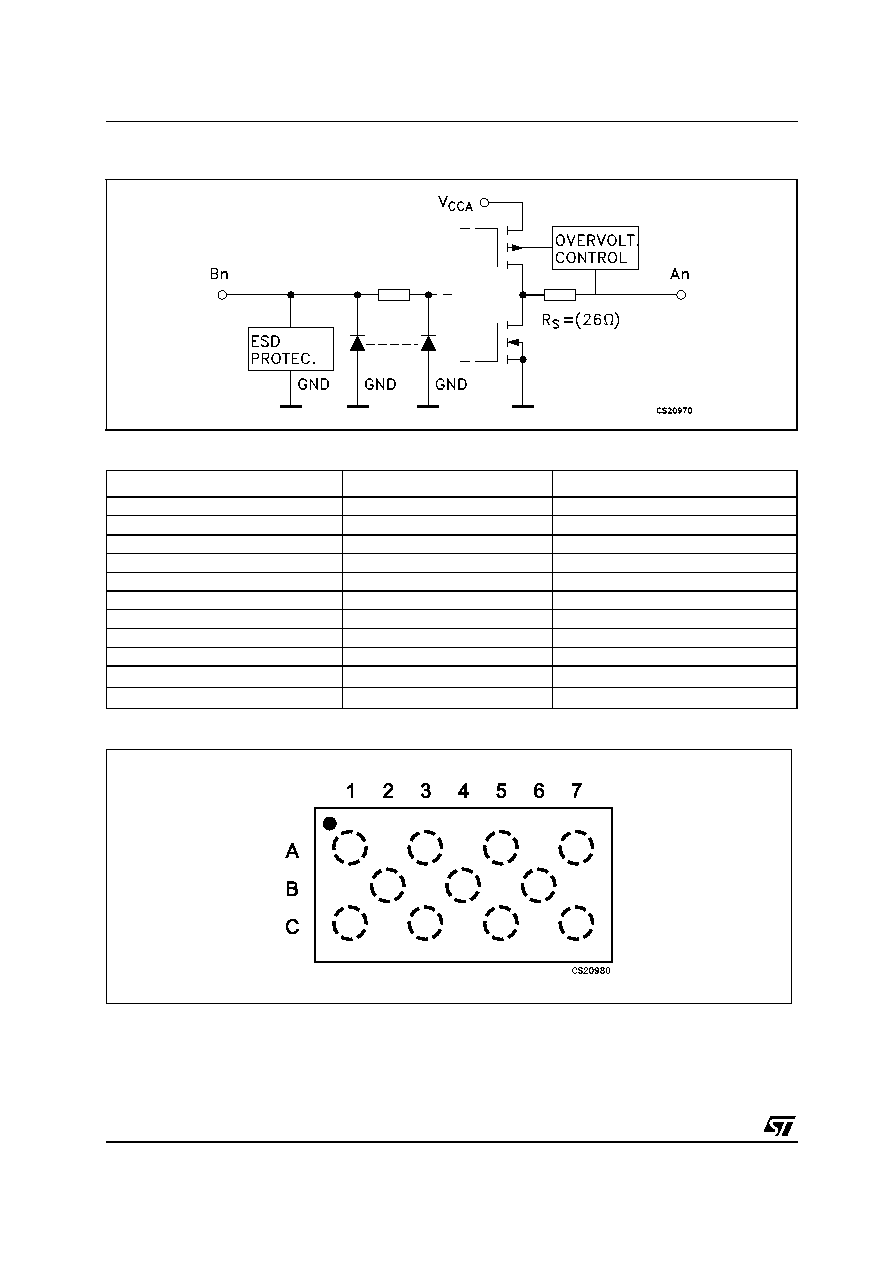

Figure 2: Input And Output Equivalent Circuit
Table 2: Pin Description
Figure 3: Pin Connection (top through view)
PIN°
SYMBOL
NAME AND FUNCTION
A1
A4
Data Output
A3
A3
Data Output
A5
A2
Data Output
A7
A1
Data Output
C1
B4
Data Input
C3
B3
Data Input
C5
B2
Data Input
C7
B1
Data Input
B2
GND
Ground (0V)
B6
VCCA
Positive Supply Voltage
B4
VCCB
Positive Supply Voltage
