LR18220L-AD-S08-R Arkusz danych(PDF) 2 Page - Unisonic Technologies

Numer części LR18220L-AD-S08-R
Szczegółowy opis  2A ULTRA LOW DROPOUT LINEAR REGULATOR
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  UTC [Unisonic Technologies]
Strona internetowa  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

LR18220L-AD-S08-R Arkusz danych(HTML) 2 Page - Unisonic Technologies

  LR18220L-AD-S08-R Datasheet HTML 1Page - Unisonic Technologies LR18220L-AD-S08-R Datasheet HTML 2Page - Unisonic Technologies LR18220L-AD-S08-R Datasheet HTML 3Page - Unisonic Technologies LR18220L-AD-S08-R Datasheet HTML 4Page - Unisonic Technologies
Zoom Inzoom in Zoom Outzoom out
 2 / 4 page
background image

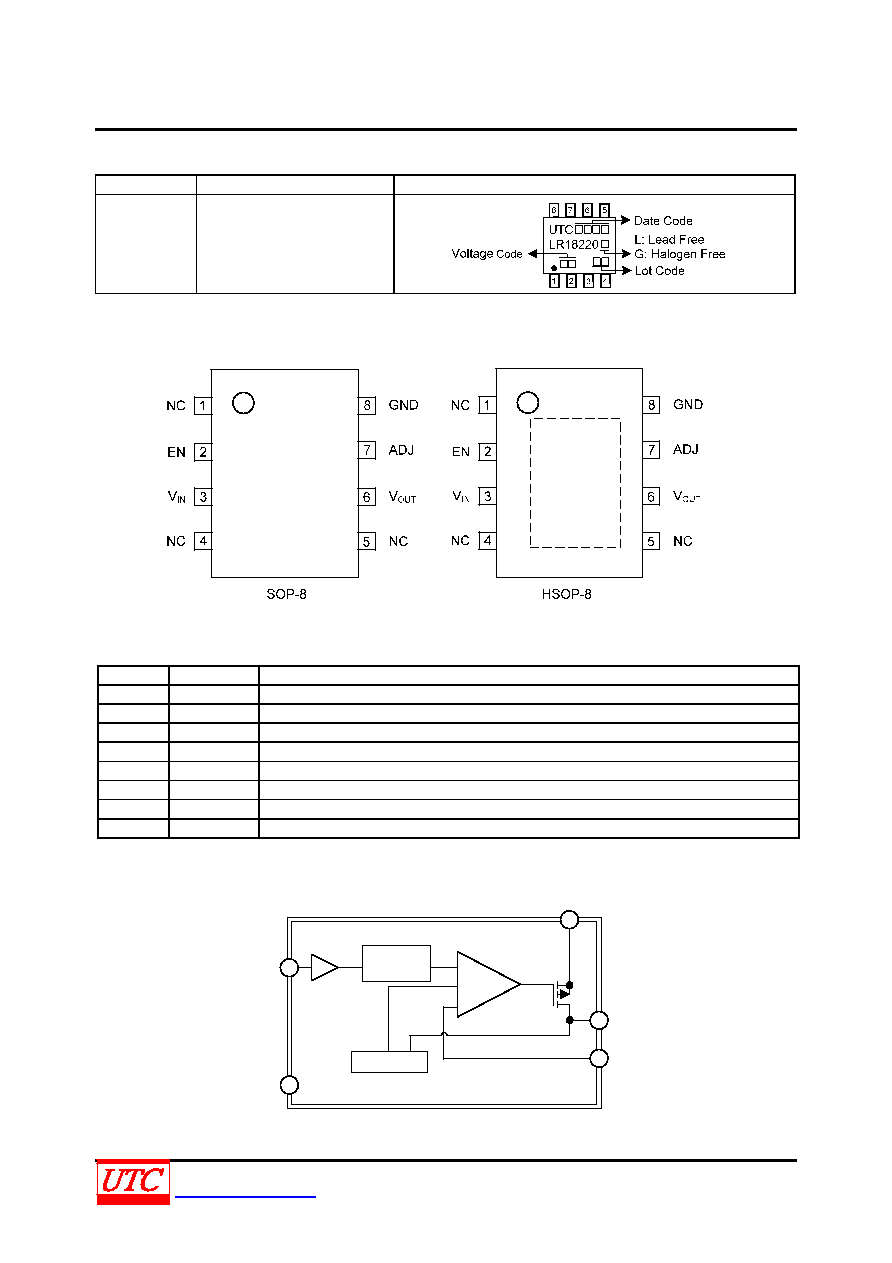

LR18220
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 4
www.unisonic.com.tw
QW-R102-073.c
MARKING INFORMATION
PACKAGE
VOLTAGE CODE
MARKING
SOP-8
HSOP-8
AD: ADJ
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
N.C
No connect
2
EN
Chip Enable Pin
3
VIN
Input Supply Voltage Pin.
4
N.C
No connect
5
N.C
No connect
6
VOUT
Voltage Regulator Output Pin
7
ADJ
Feedback Pin
8
GND
Ground Pin
BLOCK DIAGRAM
EN
GND
VOUT
ADJ
VIN
Error
AMP
OCP/TSD
Reference
(0.8V)
