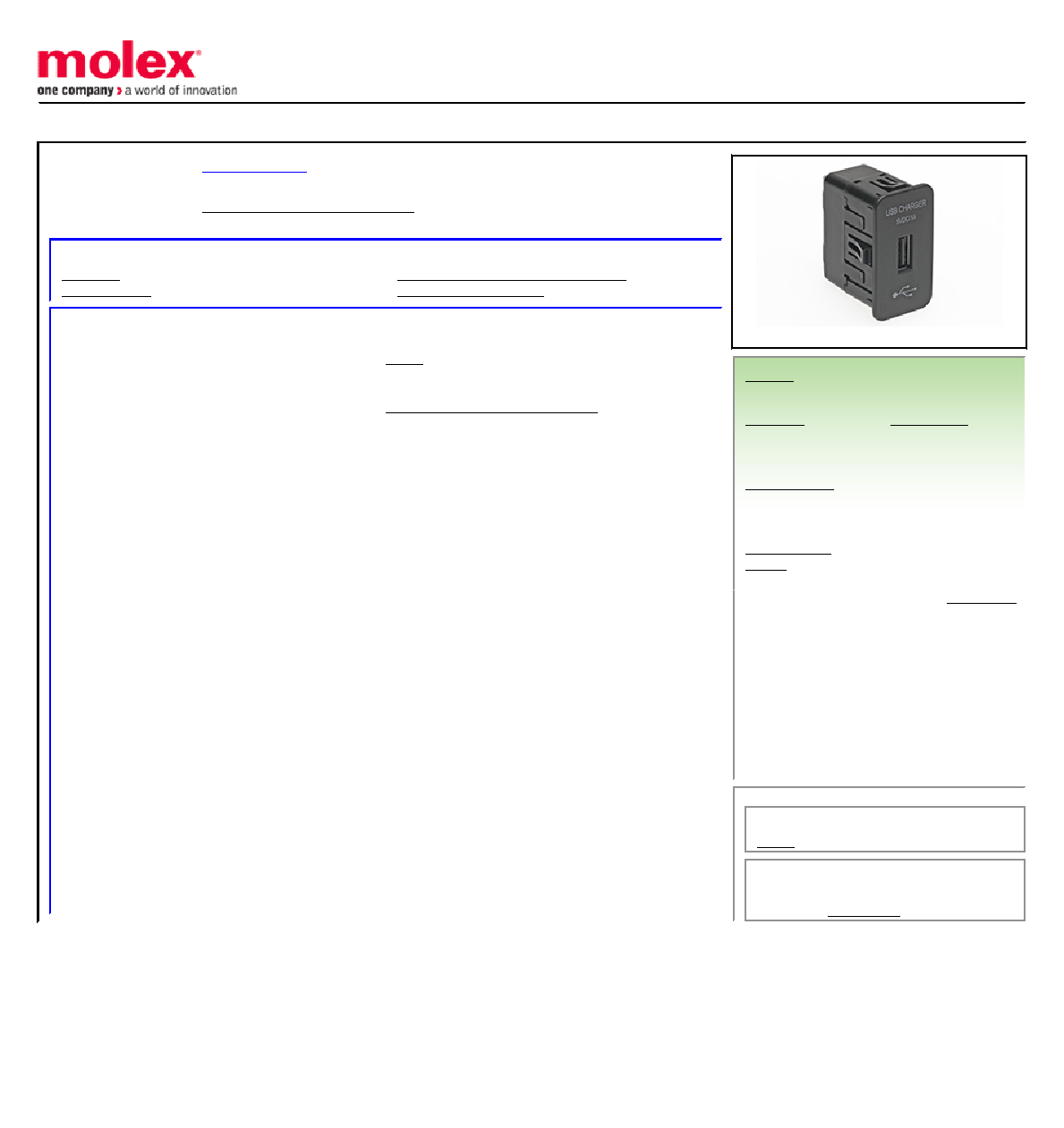

0795405015 datasheet(1/1 Pages) MOLEX1

Numer części	0795405015

Szczegółowy opis	In-Vehicle Single Port USB Battery Charger with Backlight, 1.0A

PDF	1 Pages

Scroll/Zoom	100%

Producent	MOLEX1 [Molex Electronics Ltd.]

Strona internetowa	http://www.molex.com

Logo

1 / 1 page

This document was generated on 10/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

0795405015

Status:

Active

Overview:

In-Vehicle Smart Charging Modules

Description:

In-Vehicle Single Port USB Battery Charger with Backlight, 1.0A

Documents:

3D Model

RoHS Certificate of Compliance (PDF)

Drawing (PDF)

Product Literature (PDF)

General

Product Family

I/O Connectors

Series

79540

Application

Module-to-Wire

Component Type

USB Charger

Overview

In-Vehicle Smart Charging Modules

Product Literature Order No

987651-6673

Product Name

Micro-Fit 3.0, USB

Type

A

UPC

887191430973

Physical

Circuits (Loaded)

3

Circuits (maximum)

5

Color - Resin

Black

Durability (mating cycles max)

5000

Lock to Mating Part

Yes

Material - Plating Mating

N/A

Material - Resin

ABS, PC

Net Weight

23.200/g

Number of Rows

1

Orientation

Vertical

Packaging Type

Bag

Panel Mount

Yes

Pitch - Mating Interface

N/A

Polarized to Mating Part

Yes

Ports

1

Temperature Range - Operating

-40° to +85°C

Termination Interface: Style

N/A

Electrical

Current - Maximum per Contact

1.0A

Voltage - Maximum

16V DC

Material Info

Reference - Drawing Numbers

Sales Drawing

SD-79540-5015

Series image - Reference only

EU ELV

Not Reviewed

EU RoHS

China RoHS

Compliant with

Exemption 7(c)-

I,7(a)*

REACH SVHC

Not Contained Per -

ED/61/2018 (27 June

2018)*

Halogen-Free

Status

Not Low-Halogen*

For more information, please visit Contact US

CUST_NOTE

*Product contains

part(s) with customer

managed

CUST_NOTE1

EHS data. These part(s)

are excluded from

CUST_NOTE2

product compliance

status evaluation.

China ROHS

50 Image

ELV

Not Reviewed

RoHS Phthalates

Not Contained*

Search Parts in this Series

79540 Series

Mates With

USB Type A (Front)<br>Micro-Fit 3.0

Receptacle 43645-0500 (Rear)

This document was generated on 10/02/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
