UB2012CL-S08-R Arkusz danych(PDF) 3 Page - Unisonic Technologies

Numer części UB2012CL-S08-R
Szczegółowy opis  ADVANCED LINEAR CHARGE MANAGEMENT IC
PDF  17 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  UTC [Unisonic Technologies]
Strona internetowa  http://www.utc-ic.com
Logo UTC - Unisonic Technologies

UB2012CL-S08-R Arkusz danych(HTML) 3 Page - Unisonic Technologies

  UB2012CL-S08-R Datasheet HTML 1Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 2Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 3Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 4Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 5Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 6Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 7Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 8Page - Unisonic Technologies UB2012CL-S08-R Datasheet HTML 9Page - Unisonic Technologies Next Button
Zoom Inzoom in Zoom Outzoom out
 3 / 17 page
background image
UB2012
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
3 of 17
www.unisonic.com.tw
QW-R121-018 .G

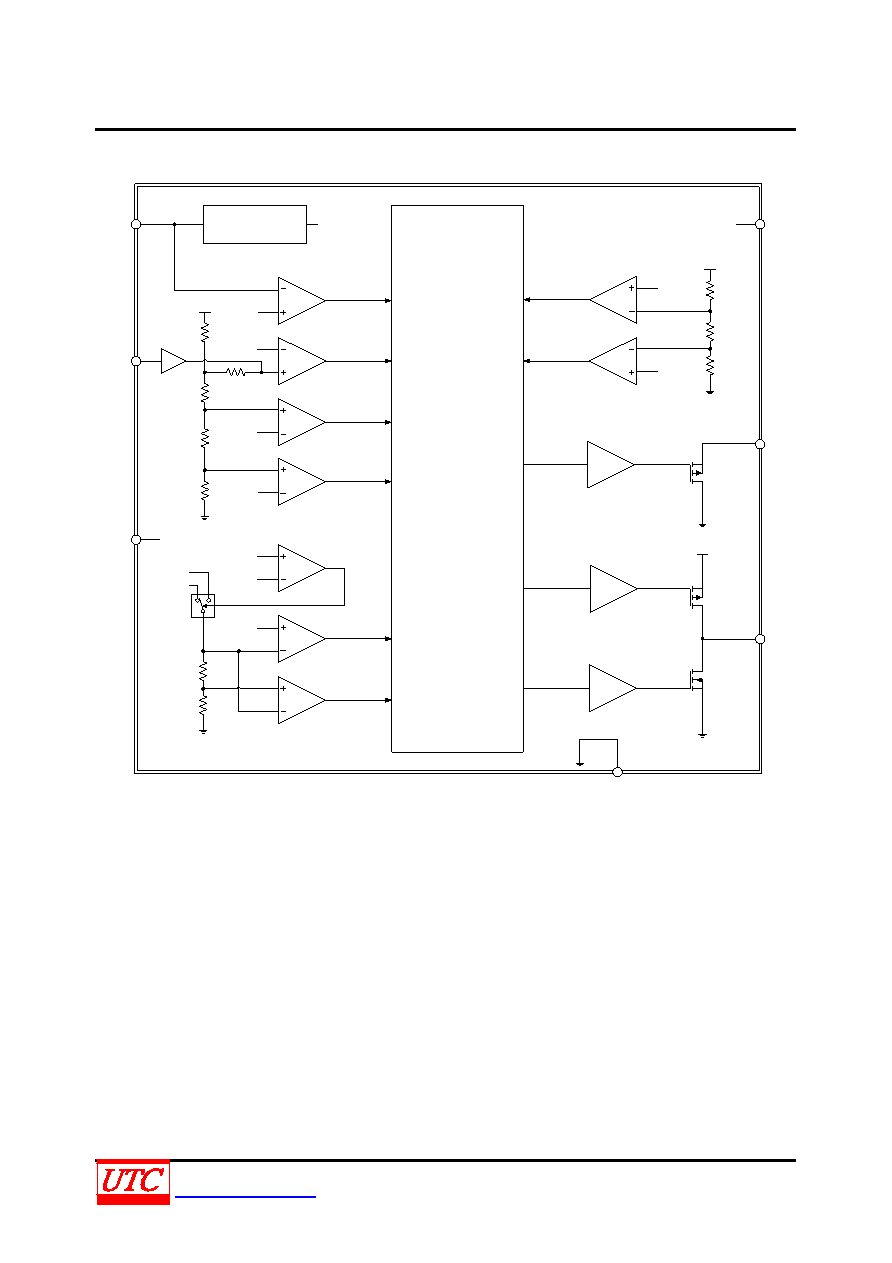

BLOCK DIAGRAM
VCC
V(BAT)
V(BAT)
V(BAT)
V(BAT)
VO(REG)
V(TS)
V(TS)
VCC
COMP
TS
V(TS)
SNS
V(SNS)
V(SNS)
V(SNS)
VCC-V(SNS)
VSS-V(SNS)
Control
Logic
VCC
Current Regulation
Voltage Termination
VCC/2
TS2
TS1
High/Low SNS Set
Battery Conditioning
Battery Recharge
Voltage Regulation
Sleep Mode
G(COMP)
Reference
VO(REG)
VSS
STAT
CC
Driver
Driver
Driver
