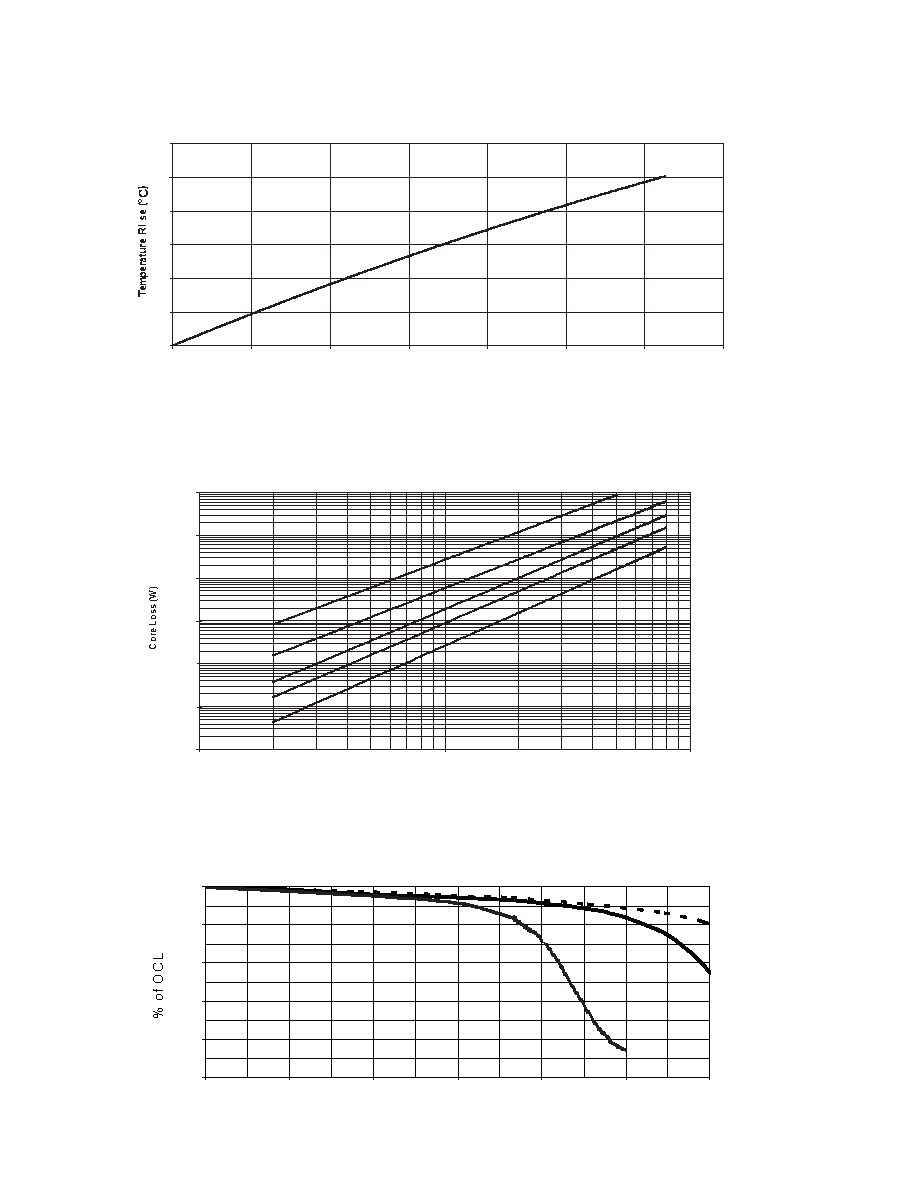

3 / 4 page  3 www.eaton.com/electronics Technical Data 4338 Effective June 2017 Core loss vs Bp-p Inductance characteristics FP1006 High frequency, high current power inductor Temperature rise vs total loss 60 50 40 30 20 10 0 0 0.2 0.4 0.6 0.8 1 1.2 1.4 Total Loss (W) 1MHz 10 500kHz 300kHz 200kHz 1 100kHz 0.1 0.01 0.001 0.0001 0.00001 100 1000 10,000 Bp-p (Gauss) % of O C L v s. % of Isat 1 100% -40°C 80% 60% +25°C 40% 20% +125°C 0% 0% 20% 40% 60% 80% 100% 120% % of Isat1 |
|
|
