TS4975
Electrical Characteristics
13/33

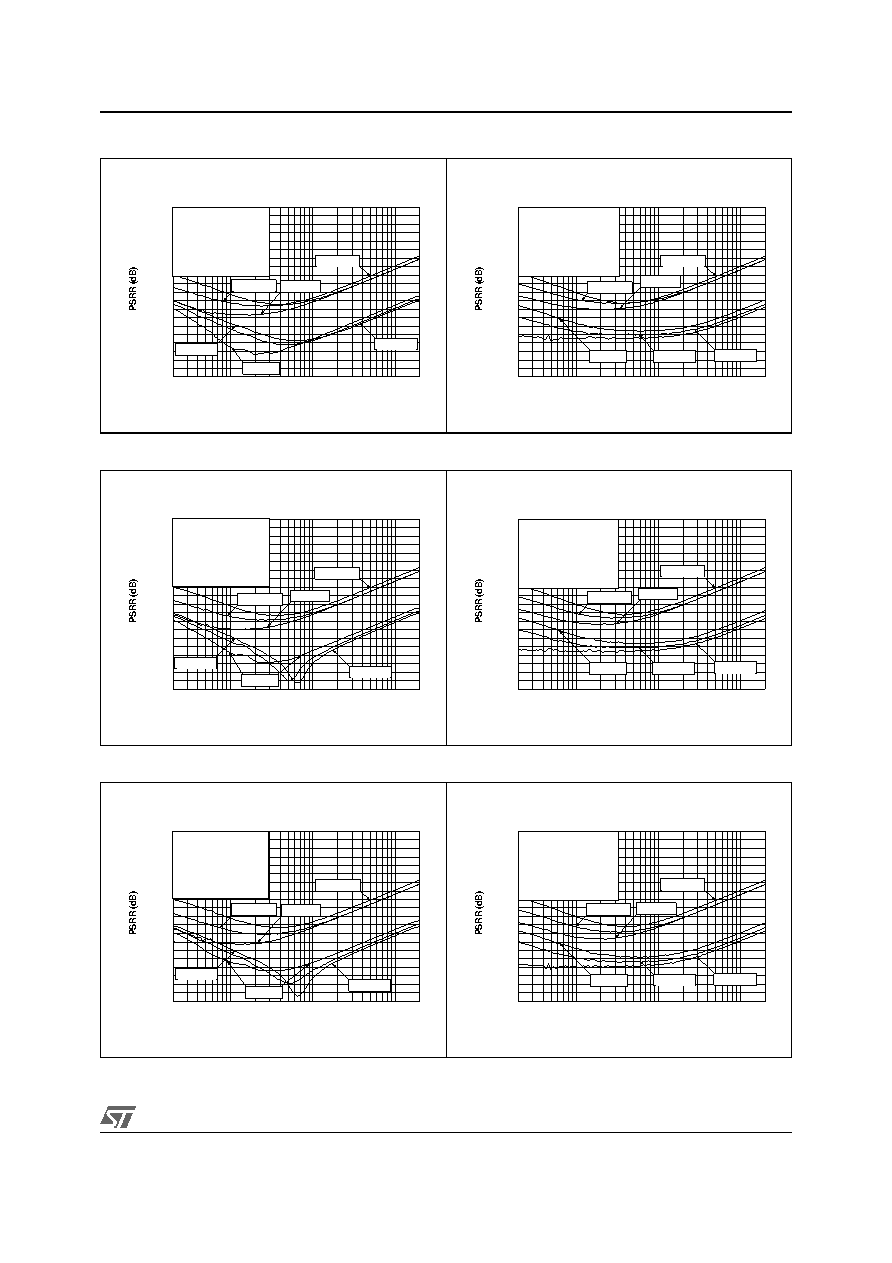

Figure 30. PSSR versus frequency
Figure 31. PSSR versus frequency
Figure 32. PSSR versus frequency
Figure 33. PSSR versus frequency
Figure 34. PSSR versus frequency
Figure 35. PSSR versus frequency
100
1000
10000
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20
G=-34dB
G=-10dB
G=-2dB
G=+18dB
G=+10dB
G=+2dB
Vcc = 2.5V
RL
≥ 16Ω
Output mode 1 - 8
SE, Inp. grounded
Vripple = 200mVpp
Frequency (Hz)
100
1000
10000
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20
G=-34dB
G=-10dB
G=-2dB
G=+18dB
G=+10dB
G=+2dB
Vcc = 2.5V
RL
≥ 16Ω
Output mode 1 - 8
PHG, Inp. grounded
Vripple = 200mVpp
Frequency (Hz)
100
1000
10000
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20
G=-34dB
G=-10dB
G=-2dB
G=+18dB
G=+10dB
G=+2dB
Vcc = 3.3V
RL
≥ 16Ω
Output mode 1 - 8
SE, Inp. grounded
Vripple = 200mVpp
Frequency (Hz)
100
1000
10000
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20
G=-34dB
G=-10dB
G=-2dB
G=+18dB
G=+10dB
G=+2dB
Vcc = 3.3V
RL
≥ 16Ω
Output mode 1 - 8
PHG, Inp. grounded
Vripple = 200mVpp
Frequency (Hz)
100
1000
10000
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20
G=-34dB
G=-10dB
G=-2dB
G=+18dB
G=+10dB
G=+2dB
Vcc = 5V
RL
≥ 16Ω
Output mode 1 - 8
SE, Inp. grounded
Vripple = 200mVpp
Frequency (Hz)
100
1000
10000
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
20
G=-34dB
G=-10dB
G=-2dB
G=+18dB
G=+10dB
G=+2dB
Vcc = 5V
RL
≥ 16Ω
Output mode 1 - 8
PHG, Inp. grounded
Vripple = 200mVpp
Frequency (Hz)
