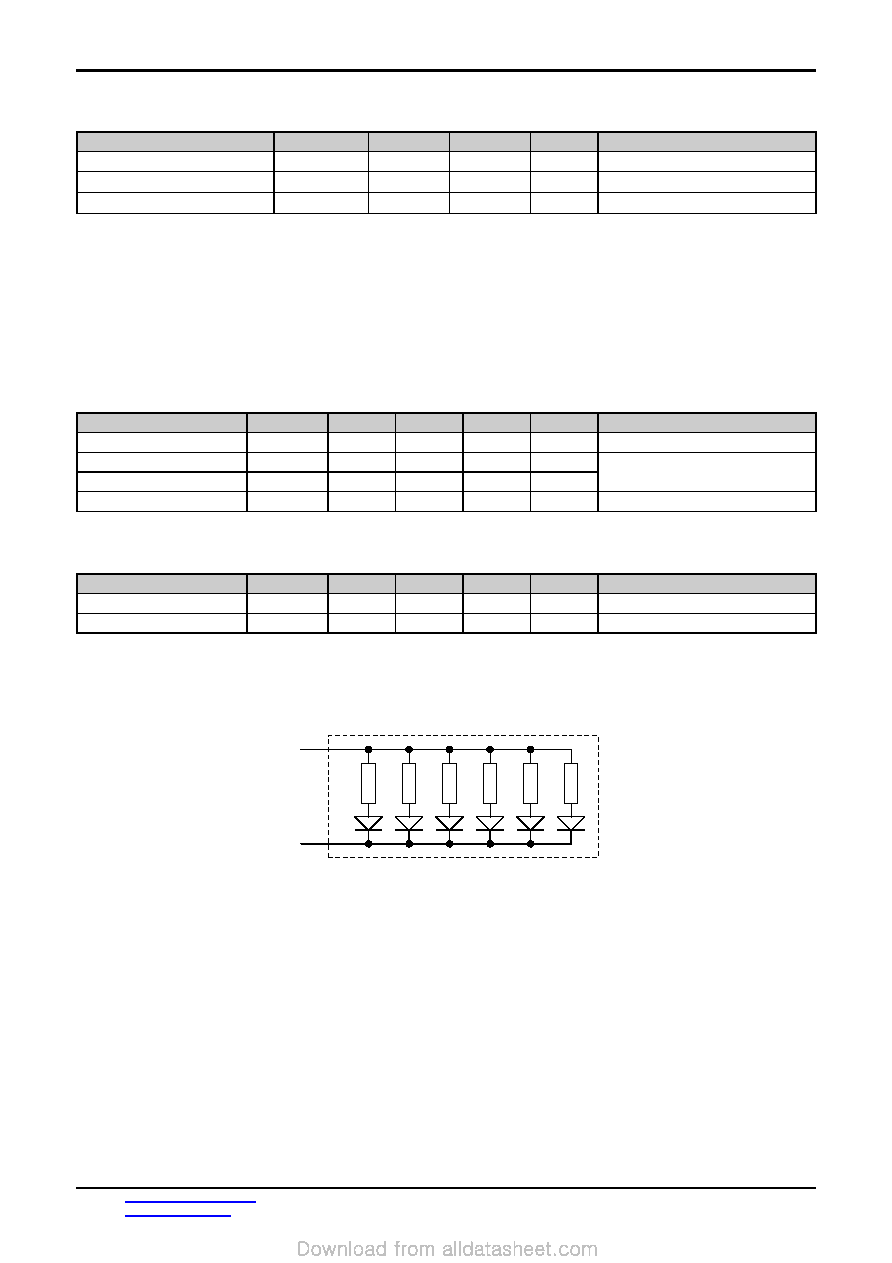

background image
TOPWAY
LCD Module User Manual
LM6800AFW-5
URL: www.topwaydisplay.com
www.topwaysz.com
Document Name: LM6800AGW-6-Manual-Rev0.1.DOC
Page: 5 of 10
2. Absolute Maximum Ratings
Items
Symbol
Min.
Max.
Unit
Condition
Supply Voltage
VDD
0
7.0
V
VSS = 0V
Operating Temperature
TOP
-20
70
°C
No Condensation
Storage Temperature
TST
-30
80
°C
No Condensation
Cautions:
Any Stresses exceeding the Absolute Maximum Ratings may cause substantial damage to the
device. Functional operation of this device at other conditions beyond those listed in the
specification is not implied and prolonged exposure to extreme conditions may affect device
reliability.
3. Electrical Characteristics
3.1
DC Characteristics
VSS=0V, VDD =5V, TOP =25°C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Operating Voltage
VDD
4.8
5.0
5.2
V
VDD
Input High Voltage
VIH
3.5
-
VDD
V
Input Low Voltage
VIL
0
-
0.4
V
RS, R/W, E, DB0-DB7
CSA, CSB, CSC
Operating Current
IDD
-
5.2
16
mA
VDD, VSS
3.2
LED Backlight Circuit Characteristics
VSS=0V, IfBLA=54mA, TOP =25°C
Items
Symbol
MIN.
TYP.
MAX.
Unit
Applicable Pin
Forward Voltage
VfBLA
-
5.0
-
V
BLA
Forward Current
IfBLA
-
54
120
mA
BLA
Cautions:
Exceeding the recommended driving current could cause substantial damage to the backlight and
shorten its lifetime.
VSS
BLA
