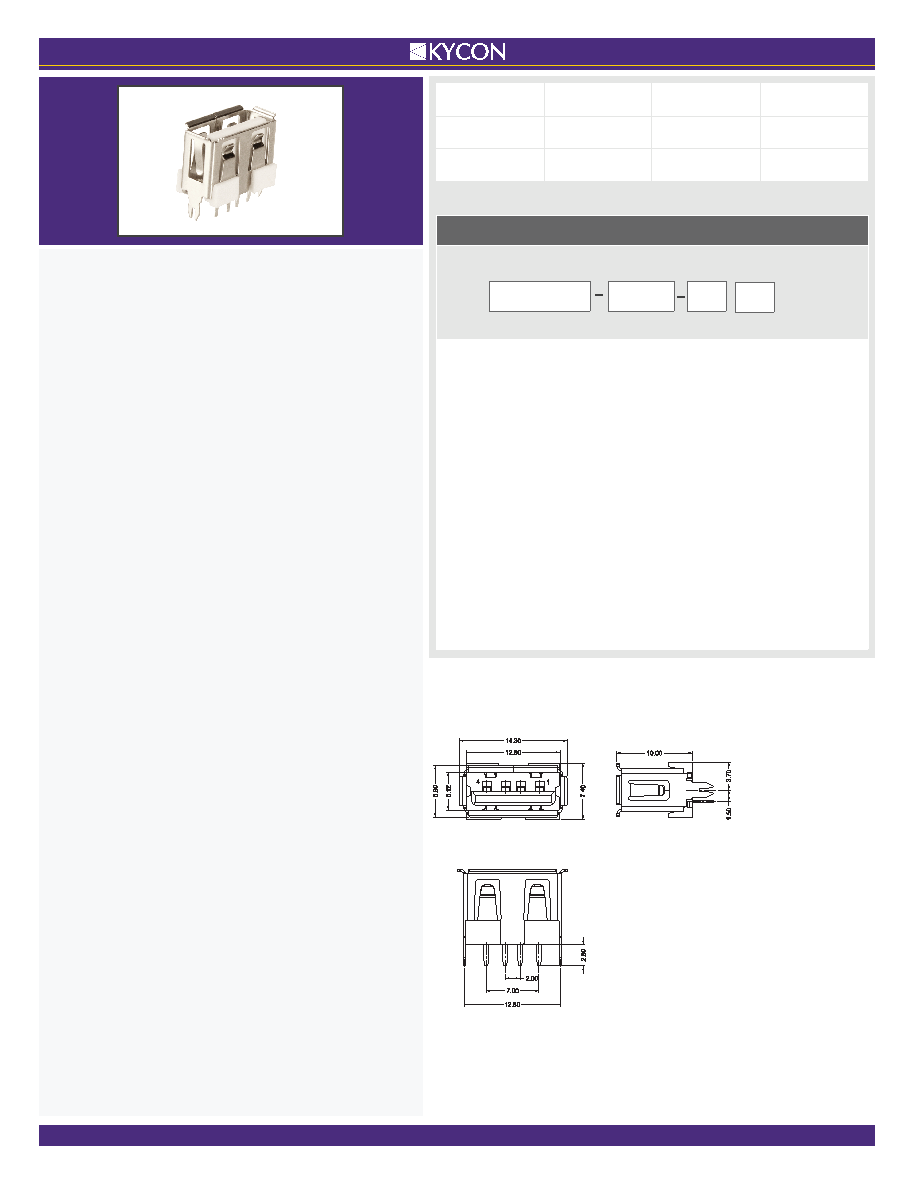

KUSBVLPX

Dimensions in mm

Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 0918

UNIVERSAL SERIAL BUS: KUSBVLPX Series

VERTICAL, A TYPE, LOW PROFILE USB

Product Features

Vertical

Low Profile

10mm Height

Through hole

Performance Specifications

Materials and Finish

Insulator

UL94V-0 Rated, Thermoplastic, Color White or Black

Contact Material

Copper Alloy

Plating Options

Standard: Gold flash on contact area, Tin on Soldertails

all over 40

µ" nickel min.

30 Option: 30µ" Gold on contact area, Tin on Soldertails

all over 40

µ" nickel min.

Shield

Nickel Plating

Electrical Characteristics

Rated Voltage

: 30V AC

Contact Current Rating

: 3A Max.

Contact Resistance: 30 milliohms Max

Insulation Resistance: 1000 Megohms Min.

Dielectric Withstanding: 250V AC for 1 minute

Mechanical Characteristics

Insertion Force: 3.57kg max.

Extraction

Force: 1.02kg min.

Durability: 1500 Mating Cycles

Operating

Temperature: -55°C to +85°C

Contact Kycon for other options

Series

KUSBVLPX - Vertical Low Profile

Type

AS1N - Single A Type

Insulator Color Option

B - Black

W - White

Plating Option

Blank - Gold Flash

30 - 30µ" Gold Plating

Generated Part Number

Part Number Builder

Series

Type

Insulator

Color Option

Plating

Option

2D Drawing

Check Stock

IGES

Solder Profile

STEP

Request a Sample

CofC RoHS Compliant

CofC REACH Compliant

UL Plastic File

Certificate of Origin

Send Us An Email

3D PDF

KUSBVLPX-AS1N-B

KUSBVLPX

AS1N

B
