Sealed Choke Coil SDET25201B type

Features

Low profile

：2.5 mm x 2.0 mm x 1.2 mm

Low coil resistance with large currents.

High magnetic shield construction should actualize high resolution for EMC protection.

100% lead (Pb) free meet RoHS standard

Application

Cellular phones, LCD displays, HDDs, DVCs, DSCs, PDAs etc..

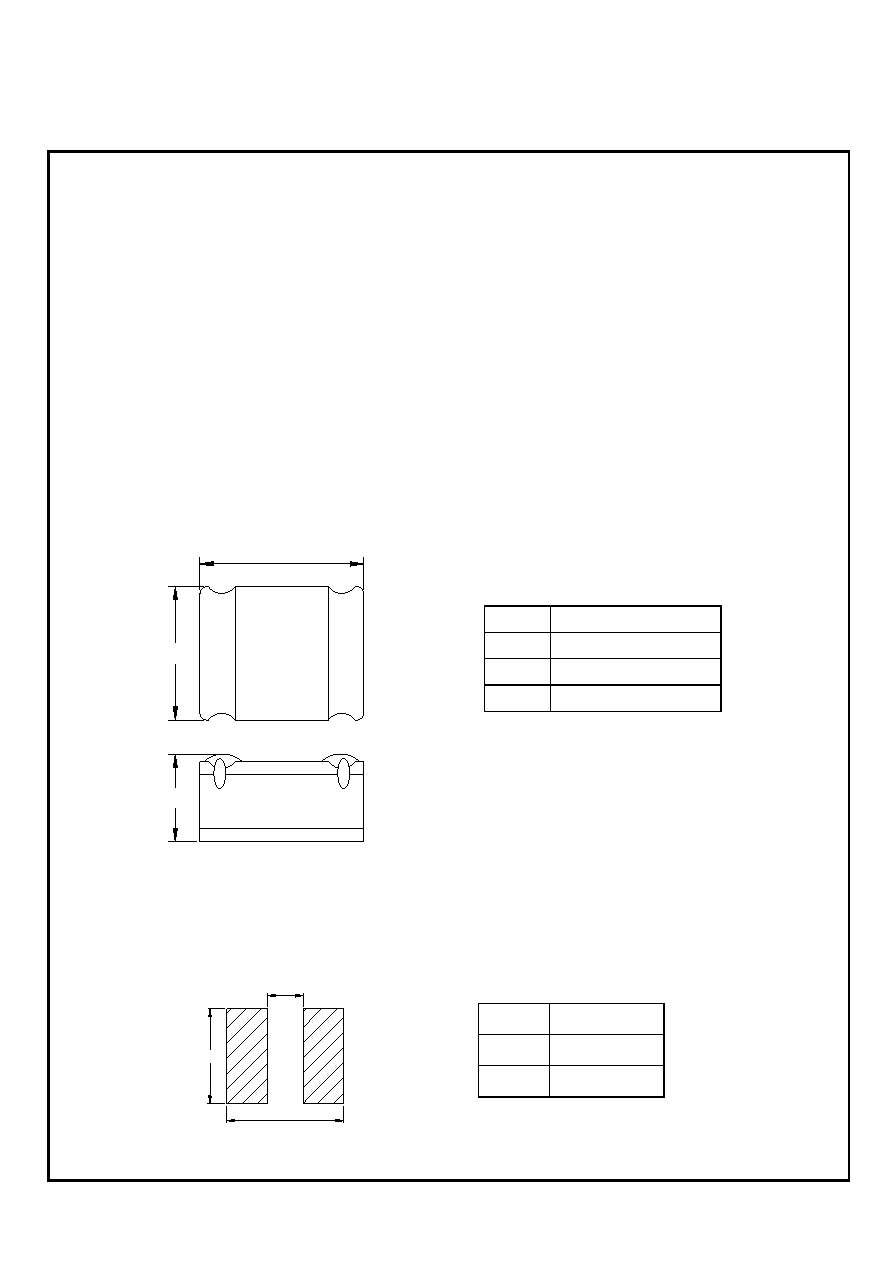

Outline Dimensions

L

T

W

Note

：This graph is in regard to outline dimensions spec. For outer appearance, please refer to actual product.

Recommend Land Pattern Dimensions

The customer shall determine the land dimensions shown below after confirming and safety.

B

A

C

Code

Dimensions(mm)

L

2.0 ± 0.2

W

2.5 ± 0.2

T

1.2 Max.

A

2.1

B

0.8

C

2.6

Unit : mm
