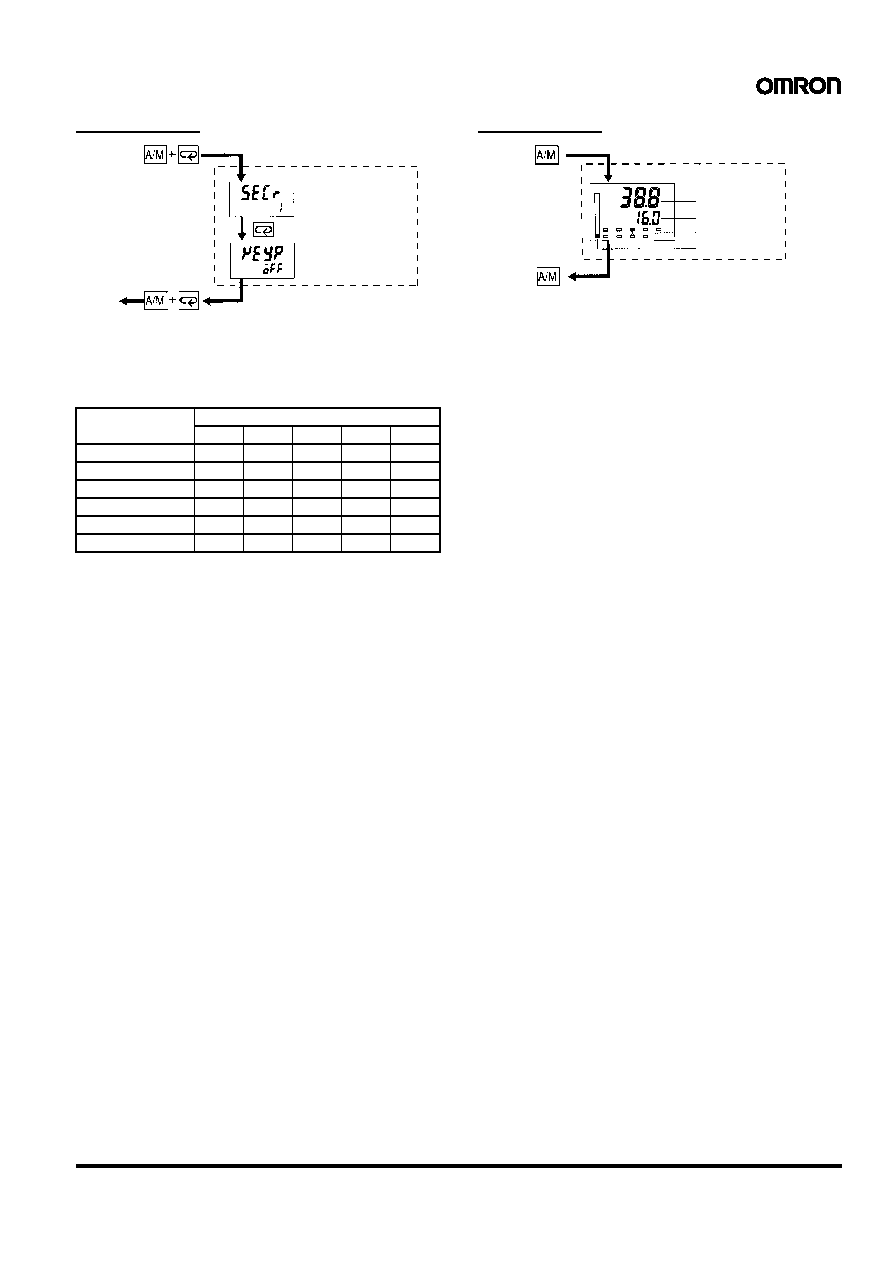

Digital Controller

E5AK/E5EK

Protect Mode

Security

Any mode marked with “X” in the following table is not displayed on

the menu when this parameter is set to “0” to “3.”

The Unit will be in only level 0 mode and the menu will not be avail-

able when this parameter is set to “4” to “6.”

Only the “PV/SP” parameter in the level 0 mode can be used when

this parameter is set to “5.”

Only the “PV/SP” parameter in the level 0 mode can be used when

this parameter is set to “6.”

A/M Key Protect

Invalidate the function of the A/M Key.

Manual Mode

Mode

Set value

01234

Calibration

---

xxxx

Option

---

Expansion

---

Setup

---

Level 2

---

Level 1, 0

---

Security

A/M Key protect

To level 0

Press twice

for 1 s min.

Press twice

for 1 s min.

Process value

MANU indicator

Bar graph (see note)

1 s min.

Note: Only for E5AK

Manipulated variable/

Valve opening
