IS25LP064A/032A
Integrated Silicon Solution, Inc.- www.issi.com
47
Rev. A
11/06/2015

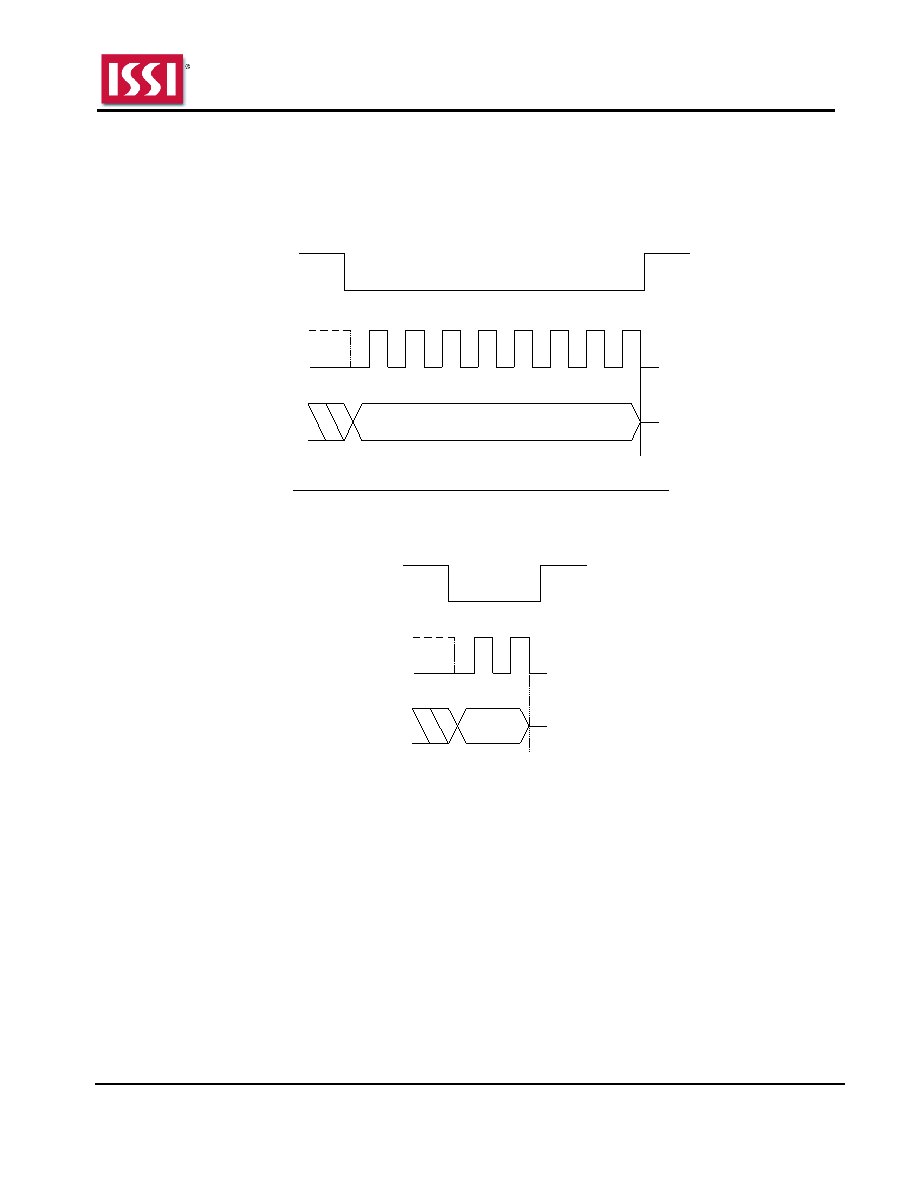

8.15 WRITE DISABLE OPERATION (WRDI, 04h)
The Write Disable (WRDI) instruction resets the WEL bit and disables all write instructions. The WRDI
instruction is not required after the execution of a write instruction, since the WEL bit is automatically reset.
Figure 8.24 Write Disable Sequence
Instruction = 04h
CE#
SCK
SI
0
1
2
3
4
5
6
7
Mode 3
Mode 0
SO
High Impedance
Figure 8.25 Write Disable QPI Sequence
04h
CE#
SCK
IO[3:0]
0
1
Mode 3
Mode 0
