Silicom Ltd. Connectivity Solutions

Page

2

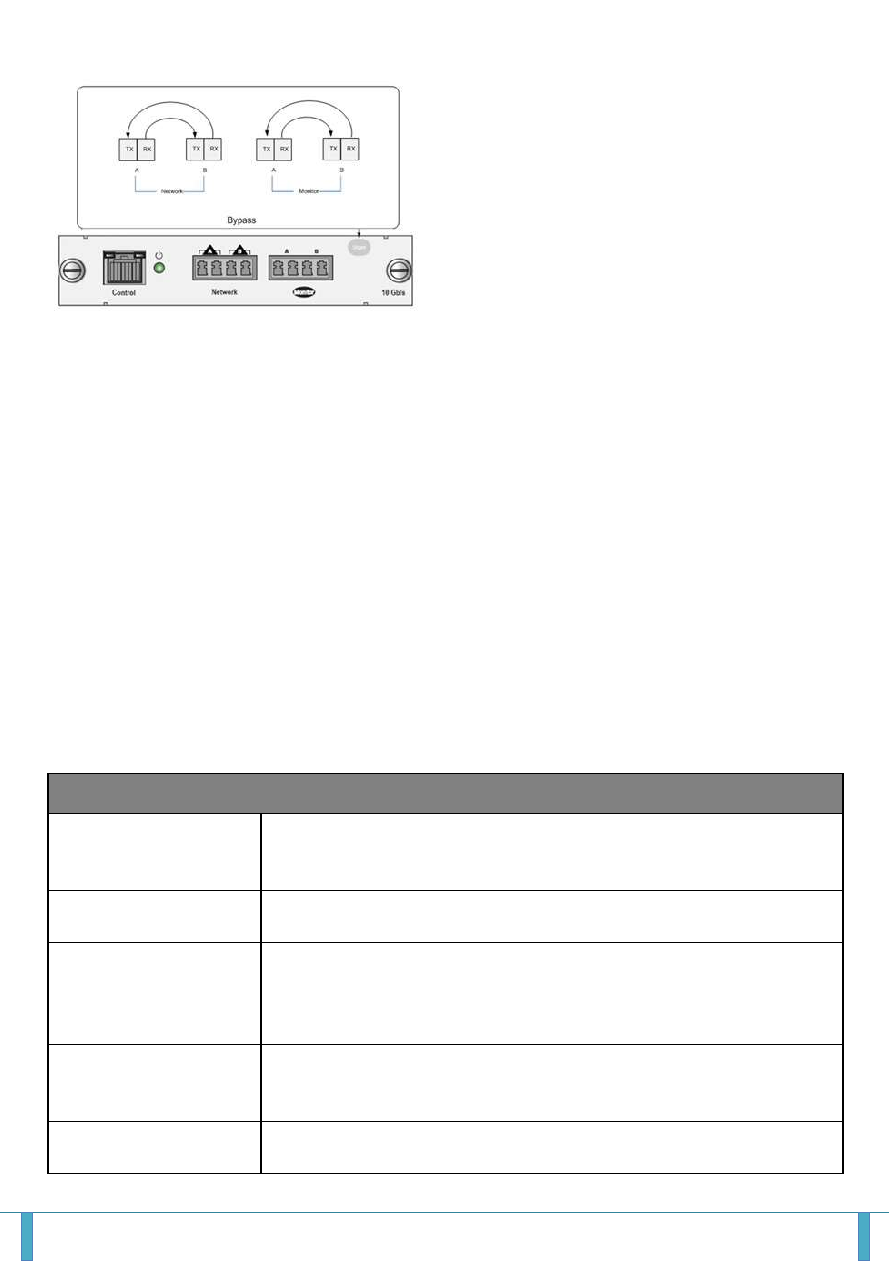

Figure: 2

– Bypass Mode Functional Block Diagram

Key Features

Bypass:



Bypass Ethernet ports on Power lose



Software Reliable Passive solution



High speed switching



Low insertions loss



Throughput not affected and no added delay

PBSSF-S-R:



Supports Fiber Gigabit Ethernet (1000Base-LX)



Supports Long Range Fiber 10 Gigabit Ethernet (10GBase-LR)

Technical Specifications

Fiber Gigabit Ethernet Technical Specifications

– (1000Base-LX) Adapters

IEEE Standard / Network

topology

Fiber Gigabit Ethernet, 1000Base-LX (1310nM)

Data Transfer Rate

2000Mbit/s in full duplex mode per port

Cables and Operating distance

Single-Mode fiber: 9um

2500m maximum at 9um **

** Theoretical Distance

– Defined as half a distance as stated by the IEEE 802.3 standard

Insertion loss (Normal Mode)

Typical: 1.2 dB

Maximum: 1.6 dB

Insertion Loss (Bypass Mode)

Typical: 1.2 dB
