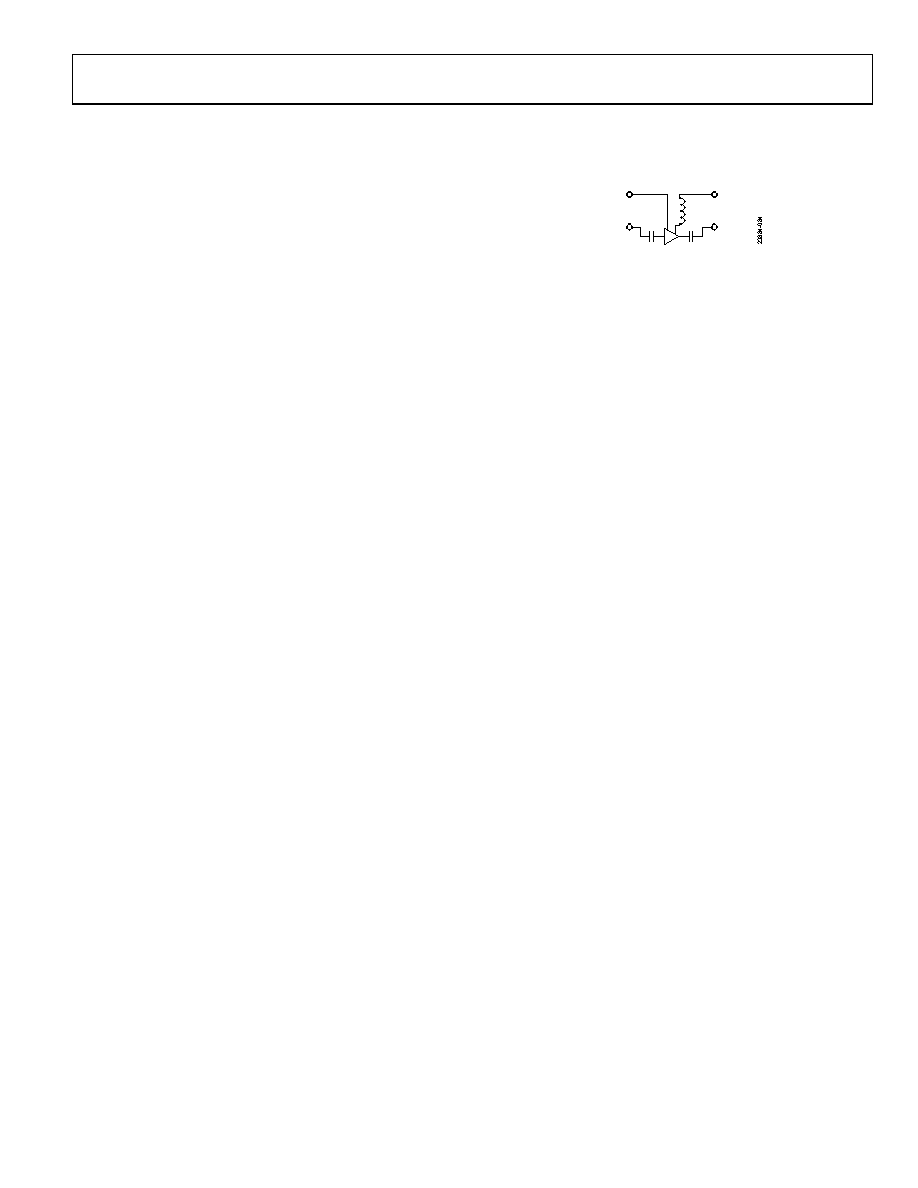

background image
Data Sheet
ADL8104
Rev. 0 | Page 21 of 23
THEORY OF OPERATION
The ADL8104 is a GaAs, MMIC, pHEMT, low noise wideband
amplifier with integrated ac-coupling capacitors and a bias
inductor. Figure 86 shows a simplified schematic.
The ADL8104 has ac-coupled, single-ended input and output
ports with impedances that are nominally equal to 50 Ω over
the 0.4 GHz to 7.5 GHz frequency range. No external matching
components are required. To adjust the quiescent current,
connect an external resistor between the RBIAS and VDD pins.
RFIN
RFOUT
RBIAS
VDD
Figure 86. Simplified Schematic
