MODEL: M2AS

M2AS SPECIFICATIONS

ES-5063 Rev.11 Page 3/5

http://www.m-system.co.jp/

EXTERNAL VIEW

Output Setpoint Adj.

Deadband Adj.

Output Monitor LED

Reset Control

9

9

9

9

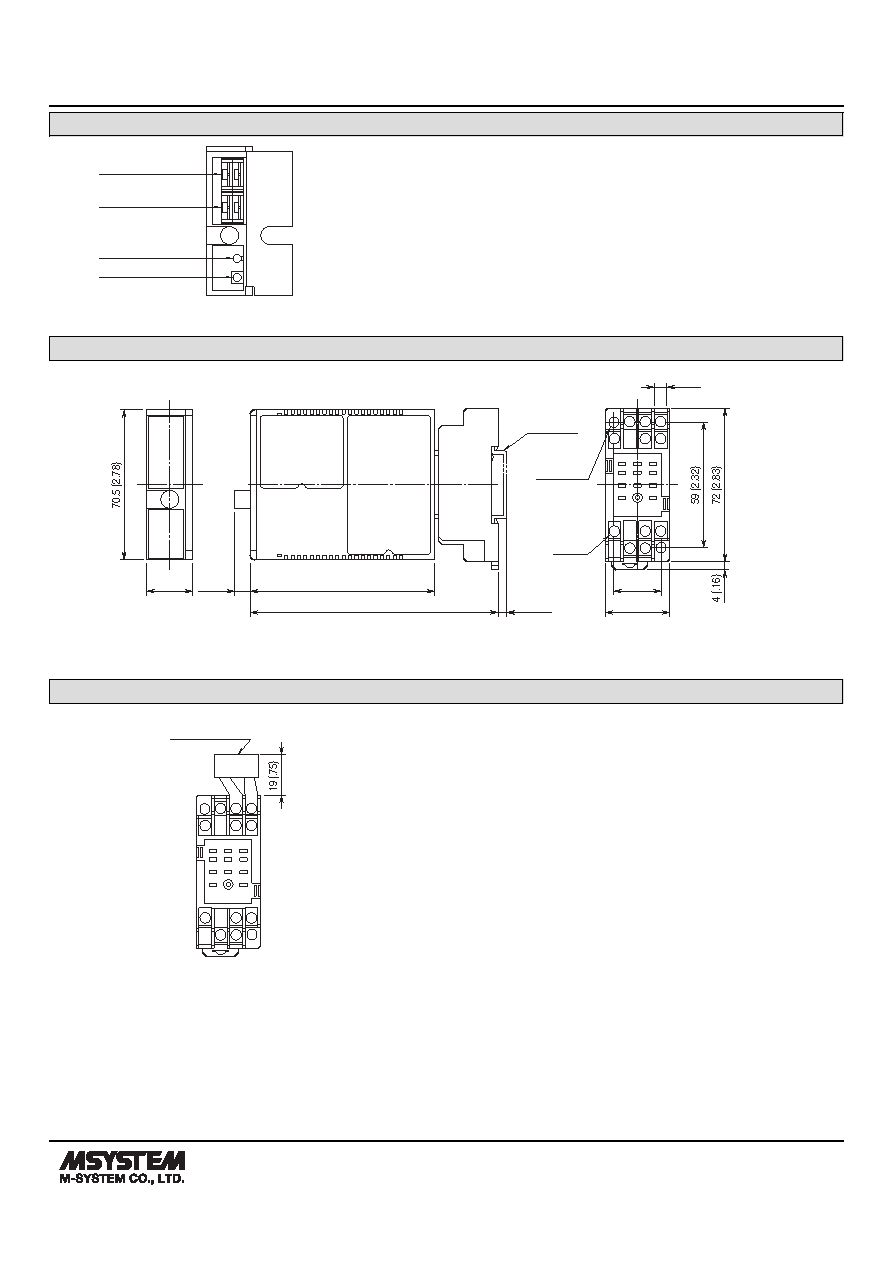

EXTERNAL DIMENSIONS unit: mm (inch)

4

8 7

10

11

5

6

1

2

3

9

21.5 (.85)

86.7 (3.41)

7.3 (.29)

22 (.87)

6 (.23)

DIN RAIL

35mm wide

[4 (.16)]

11–M3

SCREW

29.5 (1.16)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

116.7 (4.59)

• When mounting, no extra space is needed between units.

TERMINAL ASSIGNMENTS unit: mm (inch)

4

6

8 7

10

11

3

5

9

1

2

INPUT RESISTOR

(model: REM2)

Input shunt resistor attached

for current input.
