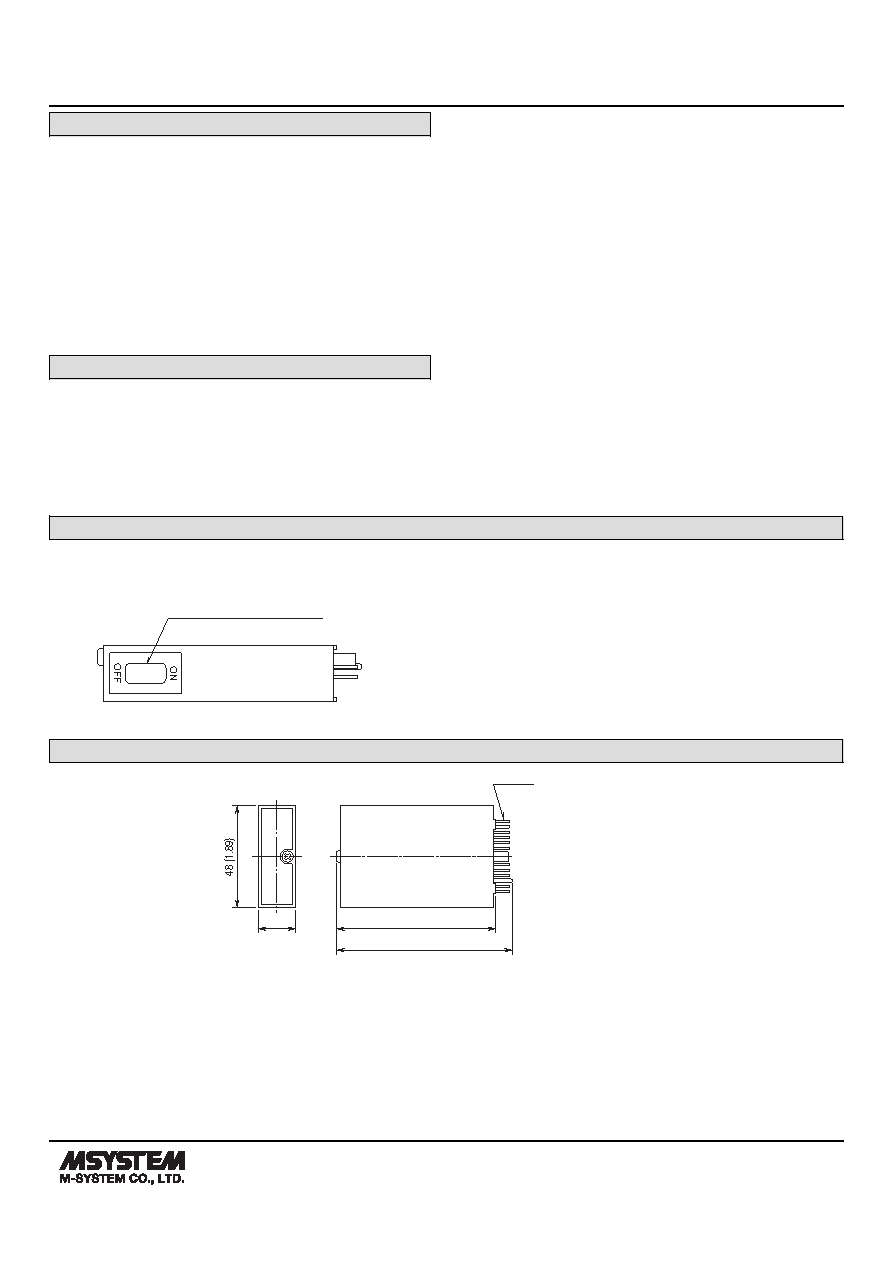

MODEL: M8DY1

M8DY1 SPECIFICATIONS

ES-5375 Rev.4 Page 2/3

http://www.m-system.co.jp/

PERFORMANCE in percentage of span

Accuracy: ±0.1 %

Temp. coefficient: ±0.02 %/°C (±0.01 %/°F)

Response time: ≤ 15 msec. (0 – 90 %)

Line voltage effect: ±0.1 % over voltage range

Insulation resistance: ≥ 100 MΩ with 500 V DC

Dielectric strength:

1500 V AC @1 minute (input to output 1 or output 2 or

power to ground)

500 V AC @1 minute (output 1 to output 2 to power)

SWC test: ANSI/IEEE-C37.90.1-1989

STANDARDS & APPROVALS

EU conformity:

EMC Directive

EMI EN 61000-6-4

EMS EN 61000-6-2

RoHS Directive

EN 50581

BOTTOM VIEW

• Transmitter Power Supply Switch

This switch is provided only when the option is specified

in ordering. Turn the switch right for ON, left for OFF.

Transmitter Power Supply Switch

EXTERNAL DIMENSIONS unit: mm (inch)

I/O PINS

17.5(.69)

75 (2.95)

83 (3.27)
