MODEL: 61D
61D SPECIFICATIONS
ES-6629 Rev.14 Page 4/4
https://www.m-system.co.jp/

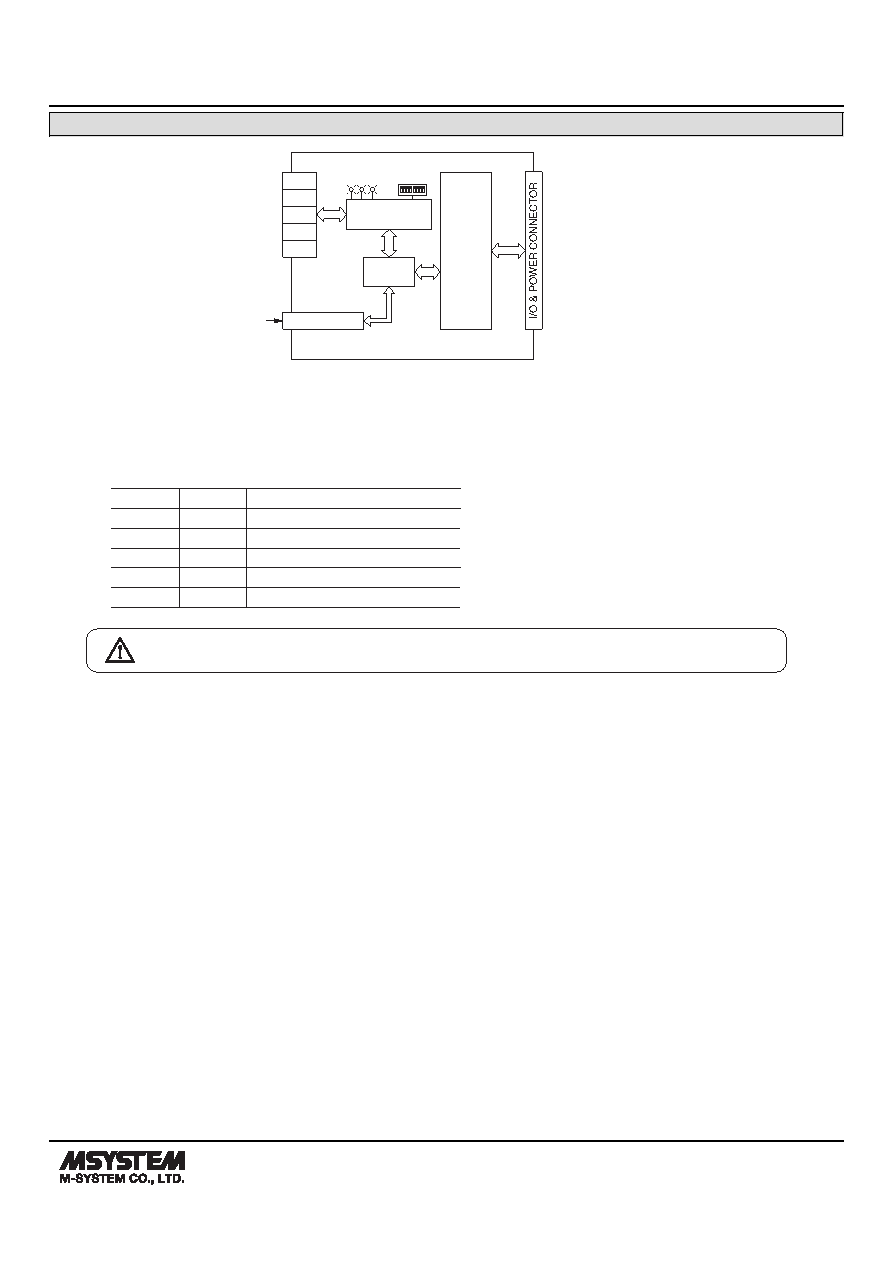

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM
A / D
or
D / A
Conv.
I / O
CPU
DeviceNet
Comm. CPU
SERIAL
TRANSMISSION
LINE
MODULAR JACK
DIP SW
INDICATOR
LED
V+
CAN_H
Drain
CAN_L
V–
To Other
DeviceNet
Devices
To
Installation
Base
PU-2x
■ CABLE IDENTIFICATION
The following table defines wire insulation colors and
designations. The terminal block is labeled also in
the same colors so that the correct assignment can
be confirmed.
COLOR
DESIG.
DESCRIPTION
black
V –
Power (–)
blue
CAN_L
Signal Low
bare
Drain
Shield
white
CAN_H
Signal High
red
V +
Power (+)
Specifications are subject to change without notice.
