MODEL: 73VR3100

73VR3100 SPECIFICATIONS

ES-7397 Rev.30 Page 13/14

http://www.m-system.co.jp/

• Writing/Reading Setting

The recorder’s present setting can be stored in a USB flash-

memory. Setting stored in the memory can be read in to the

73VR3100.

• Trend View Storing Data

Display trend view data storable in CF card even while

"stop" operating status (only in Chart speed: 4 or 1)

■ STORABLE TIME DURATION IN 1GB CF CARD

STORING

RATE

APPROXIMATE TIME DURATION

4 ch input

8 ch input

16 ch input

32 ch input

64 ch input

20 millisec.

approx. 9 days

approx. 5 days, 8 hours

approx. 3 days

---

---

0.1 seconds

approx. 46 days

approx. 27 days, 16 hours approx. 15 days 8 hours

---

---

0.5 seconds

approx. 231 days

approx. 138 days

approx. 77 days

40 days

20 days, 16 hours

1 second

approx. 1 year, 97 days

approx. 277 days

approx. 154 days

81 days, 16 hours

approx. 42 days

10 seconds

10 years minimum

approx. 7 years, 222 days approx. 4 years, 83 days

approx. 2 years, 86 days approx. 1 year 55 days

1 minute

10 years minimum

10 years minimum

10 years minimum

10 years minimum

approx. 6 years 335 days

--- : Not Applicable

Note 1: Data are calculated ones, and thus not guaranteed.

Note 2: Assuming 4 bytes per data per channel.

Note 3: A year is calculated as 365 days.

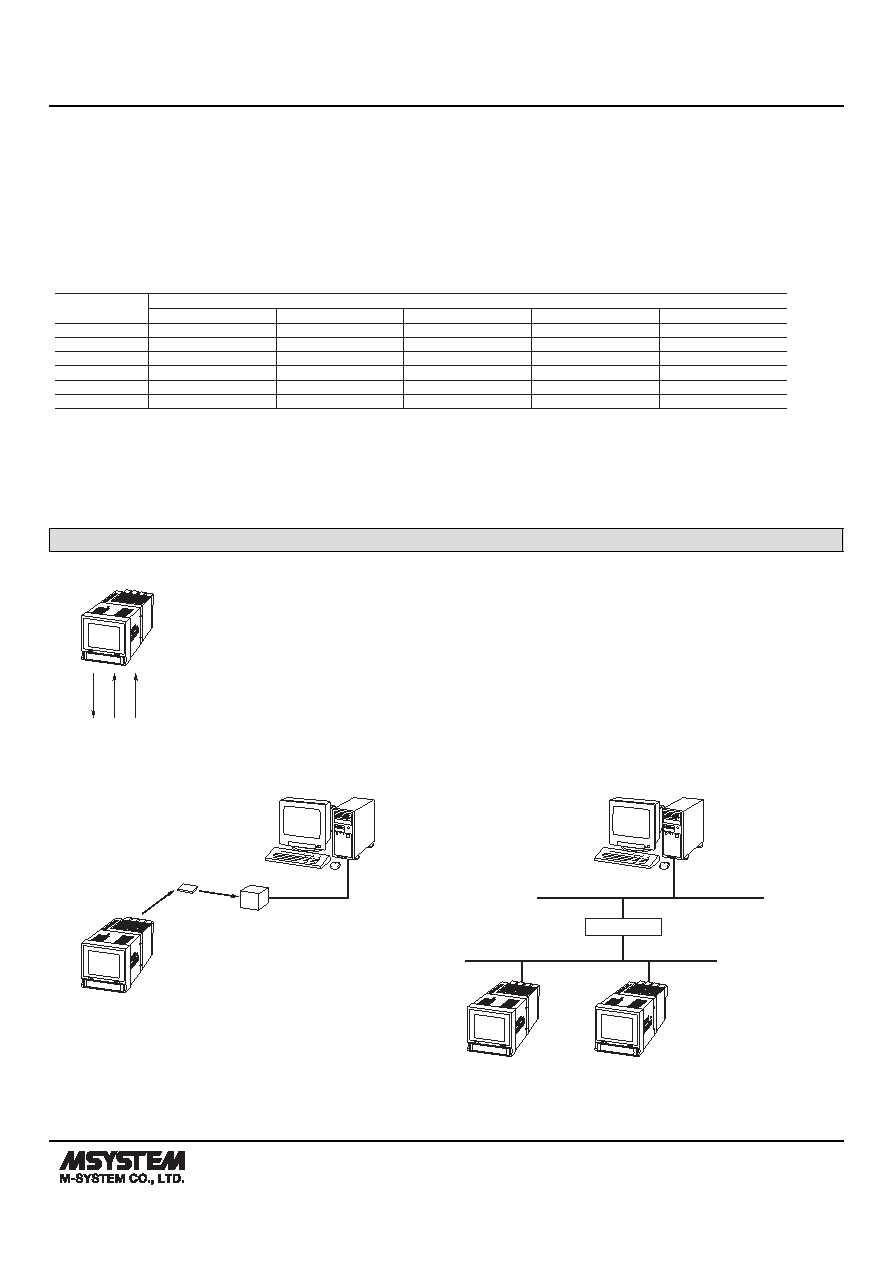

SYSTEM CONFIGURATION EXAMPLES

• Ethernet Connection

Ethernet

Ethernet

Card Reader

CF Card

■ INTERFACING WITH A PC

• Reading Data from CF Card

■ INDEPENDENTLY USED

Paperless Recorder

(models: 73VR3100)

Data Viewer

(model: 73VRWV)

PC Recorder Software

(model: MSR128)

Paperless Recorder

(models: 73VR3100)

Paperless Recorder

(models: 73VR3100)

Note: It is recommended to connect the 73VR3100 to the PC using

straight cables via a switch/hub on the Ethernet.

Switch / Hub
