ADRF6614
Data Sheet
Rev. 0 | Page 54 of 61

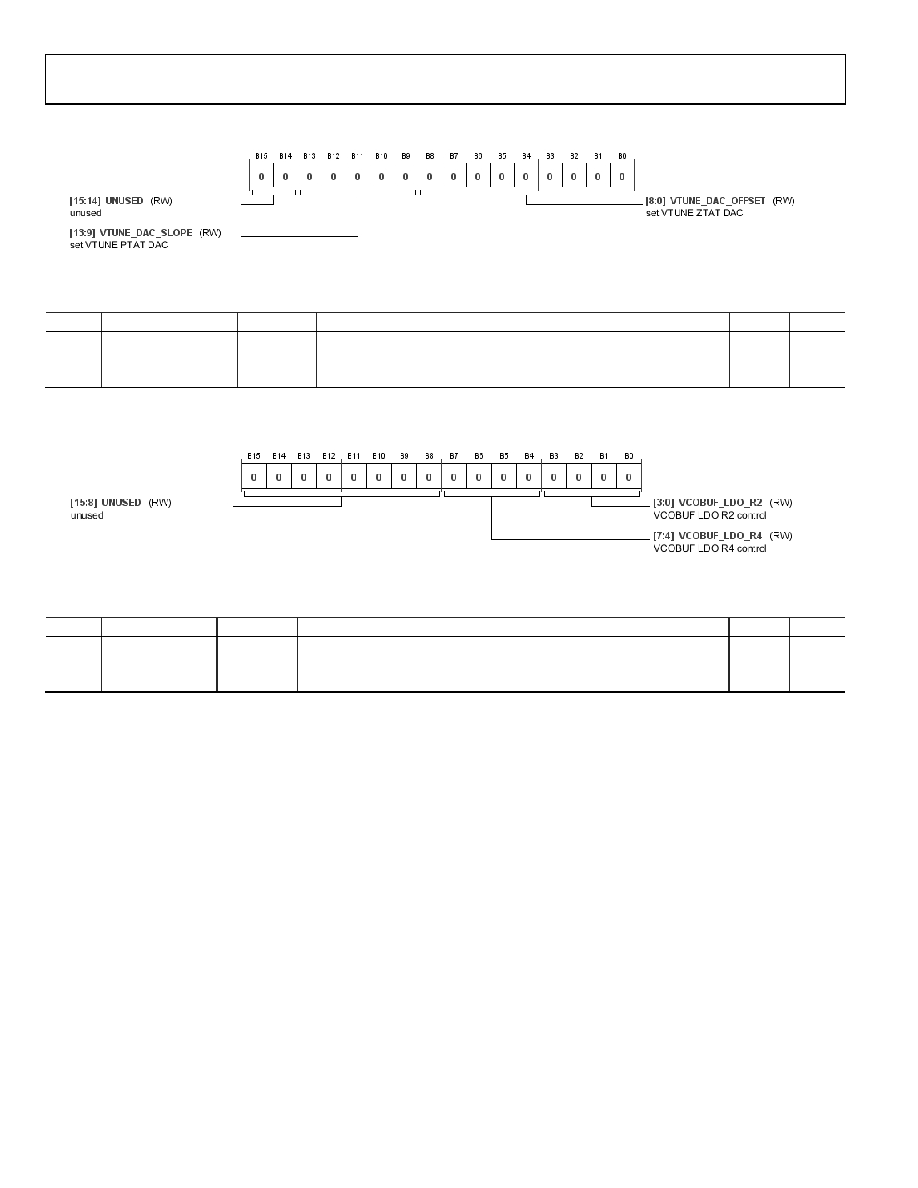

Address: 0x49, Reset: 0x0000, Name: VTUNE_DAC_CTRL
Table 45. Bit Descriptions for VTUNE_DAC_CTRL
Bits
Bit Name
Settings
Description
Reset
Access
[15:14]
UNUSED
Unused.
0x0
RW
[13:9]
VTUNE_DAC_SLOPE
Set VTUNE proportional to absolute temperature (PTAT) DAC.
0x0
RW
[8:0]
VTUNE_DAC_OFFSET
Set VTUNE zero to absolute temperature (ZTAT) DAC.
0x0
RW
Address: 0x4A, Reset: 0x0000, Name: VCO_BUF_LDO
Table 46. Bit Descriptions for VCO_BUF_LDO
Bits
Bit Name
Settings
Description
Reset
Access
[15:8]
UNUSED
Unused.
0x0
RW
[7:4]
VCOBUF_LDO_R4
VCOBUF LDO R4 control.
0x0
RW
[3:0]
VCOBUF_LDO_R2
VCOBUF LDO R2 control.
0x0
RW
