3312 - 2 mm SMD Trimming Potentiometer

CFN Series Metal Foil, Current Sensing Chip Resistor

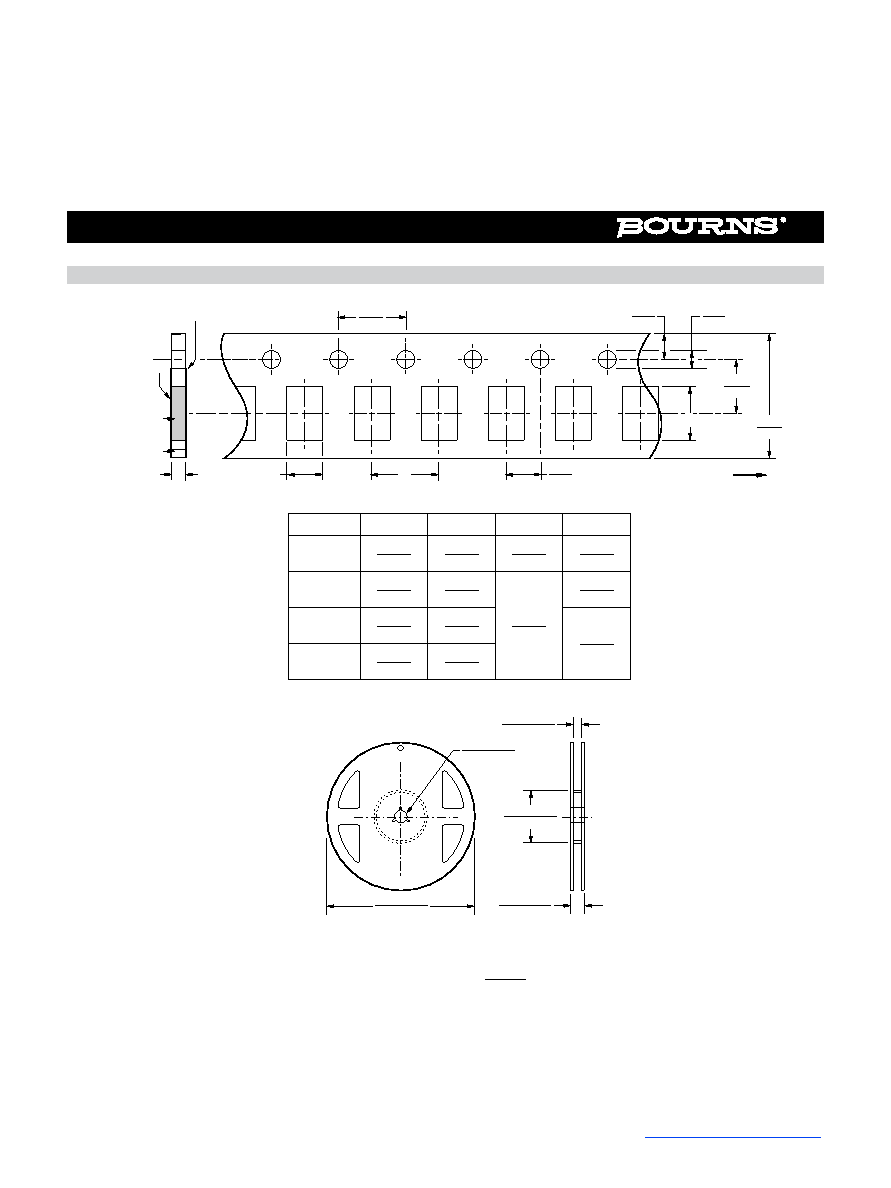

Packaging Dimensions (Conforms to EIA RS-481A)

9.0±1.0

(.354±.039)

60.0±1.0

(2.362±.039)

DIA.

DIA.

DIA.

11.5±1.0

(.453±.039)

178±2.0

(7.008±.079)

13.0±1.0

(.512±.039)

Specificationsaresubjecttochangewithoutnotice.

Usersshouldverifyactualdeviceperformanceintheirspecificapplications.

Theproductsdescribedhereinandthisdocumentaresubjecttospecificlegaldisclaimersassetforthonthelastpageofthisdocument,andatwww.bourns.com/docs/legal/disclaimer.pdf.

DIMENSIONS:

MM

(INCHES)

DIRECTION OF UNREELING

AP1

T

Top Tape

Bottom Tape

2.00

(.079)

8.00

(.315)

3.50

(.138)

B

1.75

(.069)

1.50

(.059)

4.00

(.157)

DIA.

Resistor

Paper Tape

Model

A

B

P1

T

CFN0402

0.75

(.030)

1.30

(.051)

2.00

(.079)

0.65

(.026)

CFN0603

1.10

(.043)

1.90

(.075)

4.00

(.157)

0.85

(.034)

CFN0805

1.60

(.063)

2.40

(.094)

1.05

(.041)

CFN1206

2.00

(.079)

3.60

(.142)
