Data Sheet

ADA4570

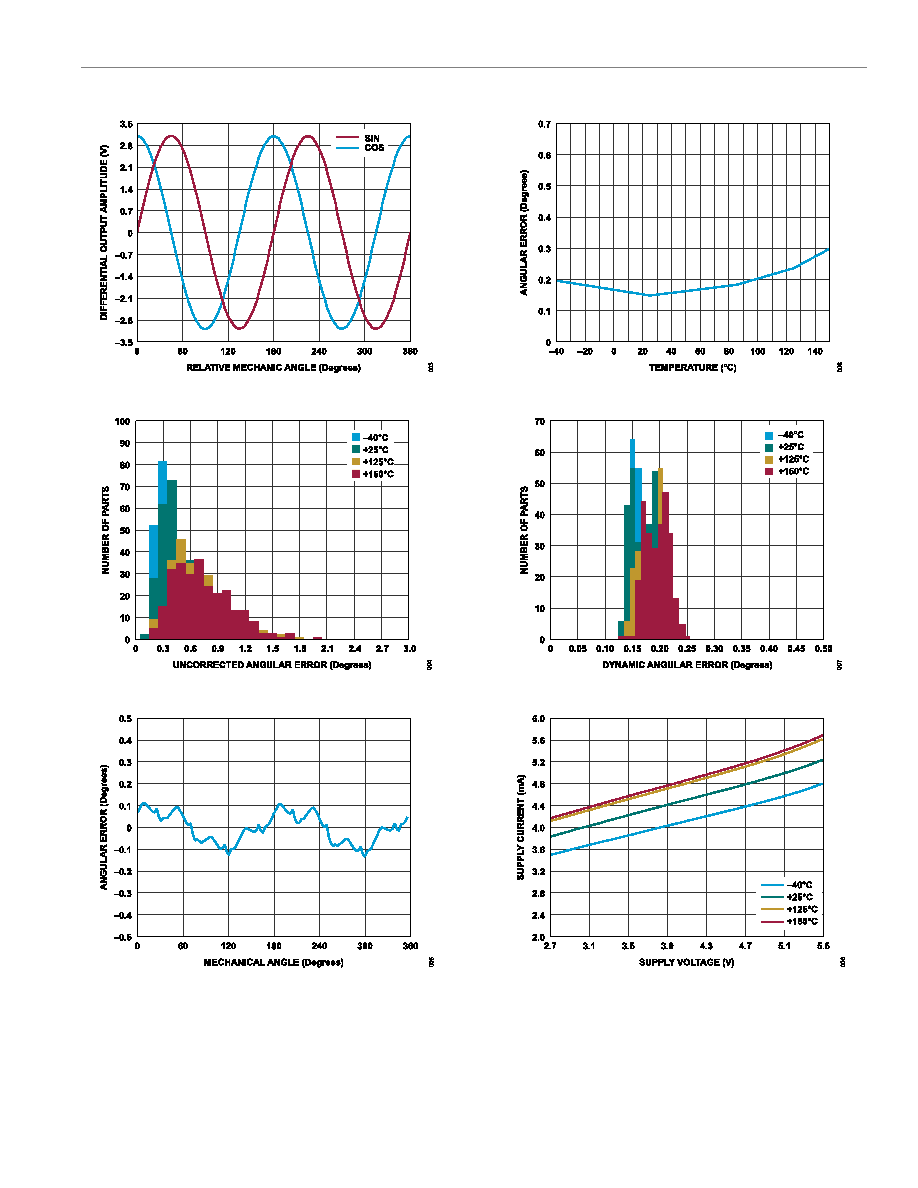

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 7 of 14

Figure 3. Differential Output Amplitude vs. Relative Mechanical Angle

Figure 4. Uncorrected Angular Error Histogram

Figure 5. Angular Error vs. Mechanical Angle After Offset Correction

Figure 6. Single Point Calibration Angular Error vs. Temperature

Figure 7. Dynamic Angular Error Histogram

Figure 8. Supply Current vs. Supply Voltage
