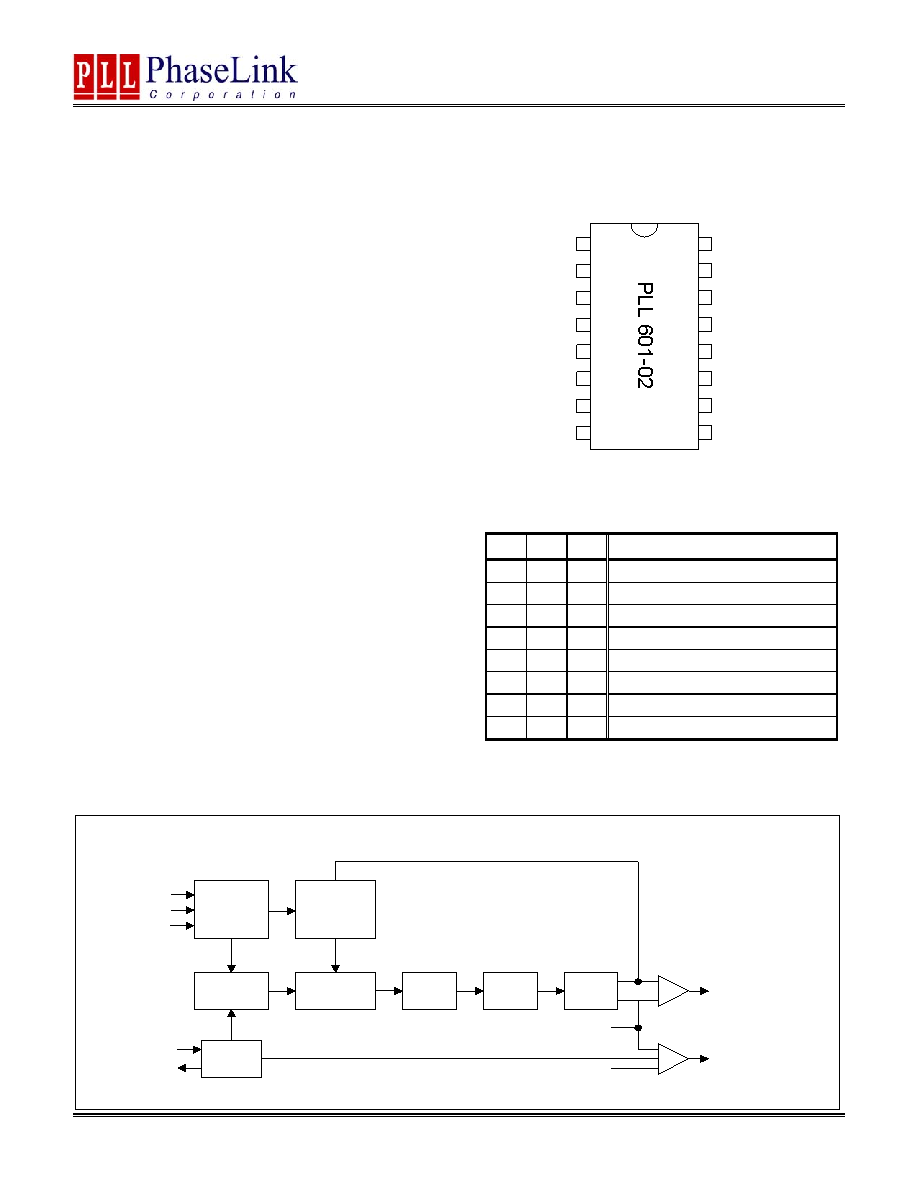

PLL601-02

Low Phase Noise PLL Clock Multiplier

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 09/03/04 Page 1

FEATURES

• Low phase noise XO

• Input from crystal or clock at 10-27MHz.

• Integrated crystal load capacitor: no external

load capacitor required.

• Output clocks up to 160MHz.

• Low phase noise (-125dBc/Hz @ 1kHz).

• Output Enable function.

• Low jitter (RMS): 6.4ps (period), 9.4ps (accum.)

• Advanced low power sub-micron CMOS process.

• 3.3V operation.

• Available in 16-Pin SOIC or TSSOP.

DESCRIPTION

The PLL601-02 is a low cost, high performance and

low phase noise clock synthesizer with 4x or 8x mul-

tiplier. Using PhaseLink’s proprietary analog and

digital Phase Locked Loop techniques, this IC can

produce up to a 160MHz out put. Ideal for

155.52MHz applications.

PIN CONFIGURATION

MULTIPLIER SELECT TABLE

S2

S1

S0

CLK

0

Test

0

1

Reserved

0

1

0

4x Input (Low Frequency VCO*)

0

1

8x Input (Low Frequency VCO*)

1

0

Reserved

1

0

1

XO Frequency Pass through

1

0

4x Input (High Frequency VCO*)

1

8x Input (High Frequency VCO*)

*: Low Frequency VCO is advised for best performance at 155.52MHz

BLOCK DIAGRAM

1

2

3

4

5

6

7

8

CLK

9

10

11

12

13

14

15

16

REFEN

VDD

XOUT

S1^

XIN

GND

REFOUT

OE^

S0^

S2^

GND

Reference

Divider

Phase

Comparator

Charge

Pump

Loop

Filter

VCO

ROM Based

Multipliers

VCO

Divider

XTAL

OSC

CLK

REFOUT

OE

REFEN

S2

S1

S0

XIN

XOUT
