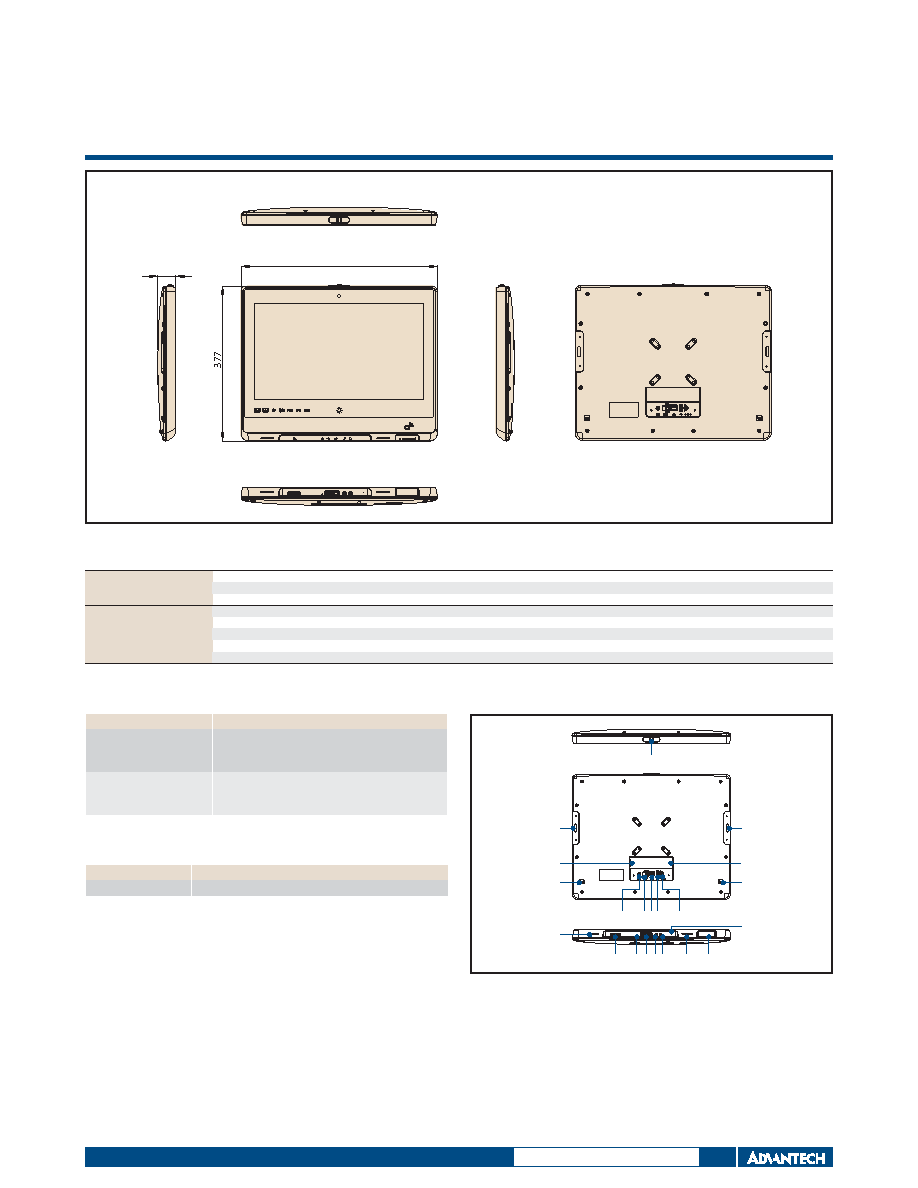

Dimensions

Unit: mm

HIT-R181

Specifications (Cont.)

Power Supply

AC/DC Adapter

Input Voltage

Output Voltage

Environment

Operating Temperature

0 ~ 40° C

IP Rating

IP65 Front Panel

Vibration

1 G

Shock

10 G peak acceleration (11 msec, duration)

EMC & Safety Cert.

CE, FCC, CCC, BSMI, CB, UL ITE & Medical, EN 60950 & 60601-1 approved

Ordering Information

Part Number

Description

HIT-R181BR-AMW1E

18.5" Wide Screen, Intel J1900, Resistive Touch, 4G

RAM, 500G HDD, Smart Card Reader, Camera, WiFi,

BT, RFID, Medical Adapter, Win8 Embedded Standard

HIT-R181BP-AMW1E

18.5" Wide Screen, Intel J1900, Pcap Touch, 4G

RAM, 500G HDD, Smart Card Reader, Camera, WiFi,

BT, RFID, Medical Adapter, Win8 Embedded Standard

Accessories

Part Number

Description

HIT-R181-HSK0E

HIT-R181 Handset Kit

Fully- Integrated I/O

A. Camera Cover Button

B. Handset Docking

C. RJ12 Handset Connector

D. TV SMA Jack (Optional)

E. Phoenix Port

F. RJ45

G. USB 3.0 (BayTrail Only)

USB 2.0 (iMX6)

H. DC-In

I. Speaker

J. SD Slot (iMX6 Only)

K. Power Button

L. USB 2.0 x2 (BayTrail)

USB 2.0 x1 (iMX6)

M. Mic In

N. Headphone Out

O. Smart Card Reader

P. Internal Mic

Q. HDMI (Optional)

A

B

C

Q

I

I

O

J

K L MN

D

EF G

H

B

C

P

Q

477.4

44.3
