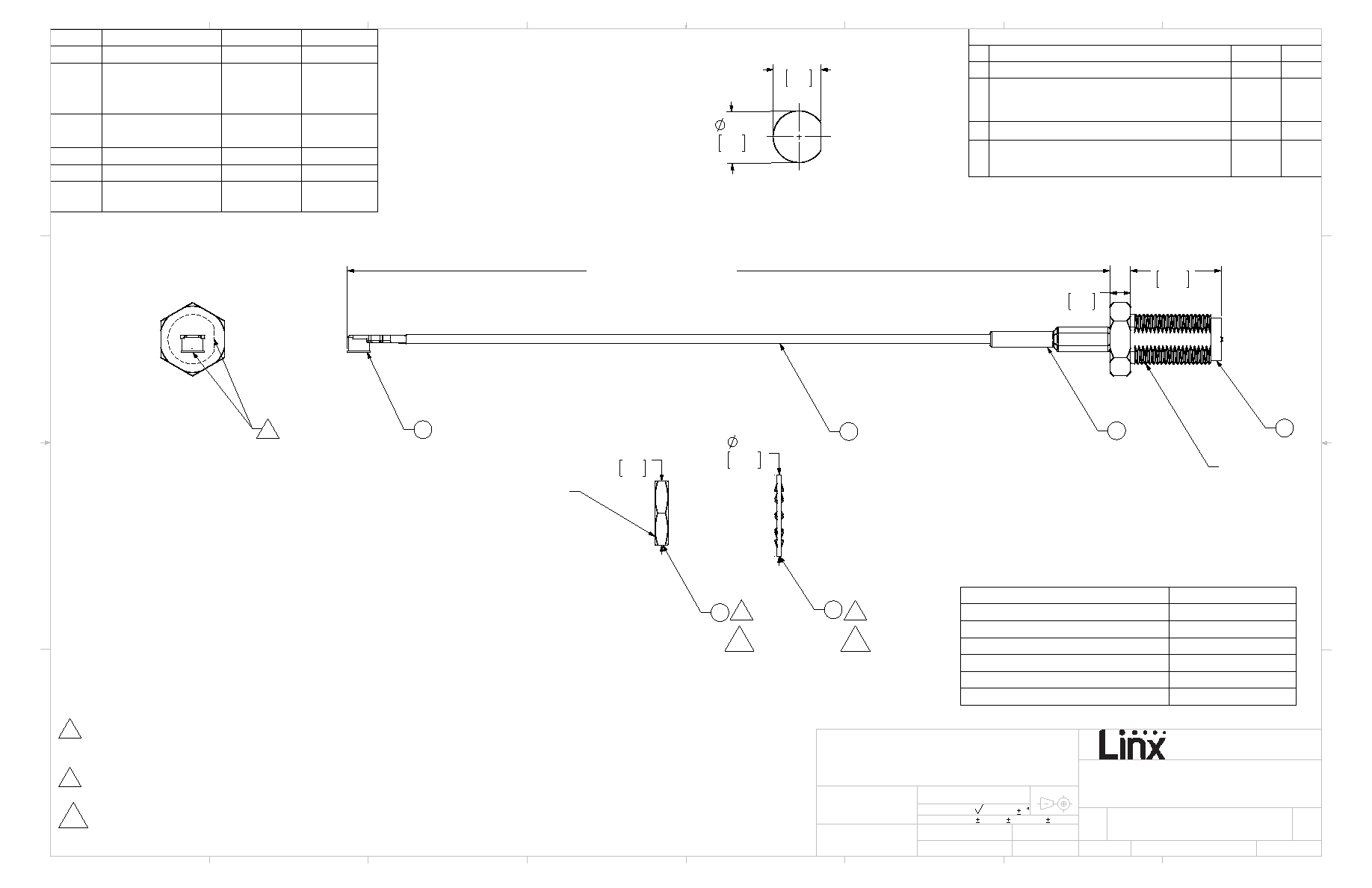

1 / 1 page  SEE PART NUMBER TABLE 0.10 2.6 0.45 11.4 A B C F 1/4 - 36UNS -2A THREADS H 0.31 8.0 D 1/4 - 36UNS - 2B THREADS 0.40 10.2 E 88 0.24 6.0 0.26 6.5 NOTES: (UNLESS OTHERWISE SPECIFIED) 1. ALL DIMENSIONS ARE IN INCHES [mm]. 2. DIMENSIONS APPLY AFTER FINISHING. 3. MANUFACTURE TO BE COMPLIANT WITH EU RoHS DIRECTIVE,USE MATERIALS THAT DO NOT CONTAIN REACH SUBSTANCES OF VERY HIGH CONCERN >1000ppm, AND USE DRC CONFLICT-FREE SOURCED MATERIALS. 4. MINIMUM FREQUENCY RANGE: DC TO 3GHz. 5. CABLE ASSEMBLY SPECIFICATIONS; - CHARACTERISTIC IMPEDANCE: 50Ω ± 3Ω - INSERTION LOSS: 100mm - 0.34√f IN GHz TYP. 200mm - 0.56√f IN GHz TYP. 300mm - 0.73√f IN GHz TYP. 6. CONNECTORS TO BE APPLIED IN ACCORDANCE WITH CONNECTOR SUPPLIER RECOMMENDED PROCEDURE 7. TORQUE SPECIFICATIONS: - BULKHEAD MOUNTING NUT TORQUE: 7 TO 10 in-lbs. - RECOMMENDED MATING TORQUE: 7 TO 10 in-lbs. 8 CONNNECTORS TO BE ORIENTED WITH U.FL CONNECTOR MATING FACE 90° CLOCKWISE FROM BULKHEAD CONNNECTOR THREAD FLAT FACE, AS SHOWN. 9 INSTALL WASHER (ITEM E) AND NUT (ITEM D) ONTO CONNECTOR BODY (ITEM B). 10 -B PART NUMBERS ONLY: SHIP WASHERS (ITEM E) AND NUTS (ITEM D) IN SEPARATE BAGS OF 100 PIECES EACH. 9 9 10 10 -B ONLY -B ONLY RECOMMENDED MOUNTING HOLE REVISIONS REV DESCRIPTION DATE APPV A INITIAL RELEASE OF LINX INTERNAL DRAWING 14-MAY-15 SAH B UPDATED NOTES NUMBERING; UPDATED NOTE 5; ADDED FLAG NOTE 7 AND VIEW TO ILLUSTRATE CONNECTOR ORIENTATION; ADDED DIMESIONS; UPDATED DESCRIPTION TABLE 1-SEP-15 SAH C UPDATED TO ADD DIMENSIONS TO NUT AND WASHER 13-JUL-16 SAH D UPDATED NOTES TO ADD TORQUE SPECIFICATIONS AND PACKAGING INSTRUCTIONS; ADDED MOUNTING HOLE; ADDED "-B" PART NUMBERS; UPDATED DIMENSIONS 27-OCT-17 CLL ITEM DESCRIPTION MATERIAL FINISH A U.FL PLUG BRASS GOLD B RP-SMA FEM. BULKHEAD MOUNT CONNECTOR BRASS GOLD C CABLE 1.13mm COAXIAL GRAY D NUT BRASS GOLD E WASHER BRASS GOLD F HEAT SHRINK TUBING POLYOLEFIN BLACK PART NUMBER CABLE LENGTH CSI-RGFB-100-UFFR 100mm ± 1.5mm CSI-RGFB-200-UFFR 200mm ± 3.0mm CSI-RGFB-300-UFFR 300mm ± 4.5mm CSI-RGFB-100-UFFR-B 100mm ± 1.5mm CSI-RGFB-200-UFFR-B 200mm ± 3.0mm CSI-RGFB-300-UFFR-B 300mm ± 4.5mm D C B A A B C D 1 2 3 4 5 6 7 8 8 7 6 5 4 3 2 1 PROJECTION: FINISH: MATERIAL: DT: 14-MAY-15 DT: 14-APR-15 ENGR: C.LEWIS DRAWN: B.MURPHY INTERPRET DIMENSIONS AND TOLERANCES PER ASME Y14.5. TOLERANCES: .X .1 .XX .01 .XXX .005 ANGLES: 1 SURFACE FINISH: 32 159 ORT LANE MERLIN, OR 97532 BLKHD RP-SMA, 1.13mm CBL CABLE ASSEMBLY, U.FL TO FEM. D CSI-RGFB-ccc-UFFR-p DO NOT SCALE DRAWING REV DWG. NO. SIZE TITLE: B SCALE: 2.5:1 LDCFDFB_C SHEET 1 OF 1 WARNING: THIS DRAWING CONTAINS PROPRIETARY INFORMATION THAT IS THE SOLE PROPERTY OF LINX TECHNOLOGIES, AND SHALL BE TREATED AS SUCH. NO DISCLOSURE OR REPRODUCTION OF THIS DOCUMENT IS PERMITTED, IN WHOLE OR IN PART, WITHOUT THE EXPRESS WRITTEN PERMISSION OF LINX TECHNOLOGIES OR ITS DESIGNATED AGENTS. |
