HDP Industrial Series

ANT-2/5-HDP-2000-ccc

Product Dimensions

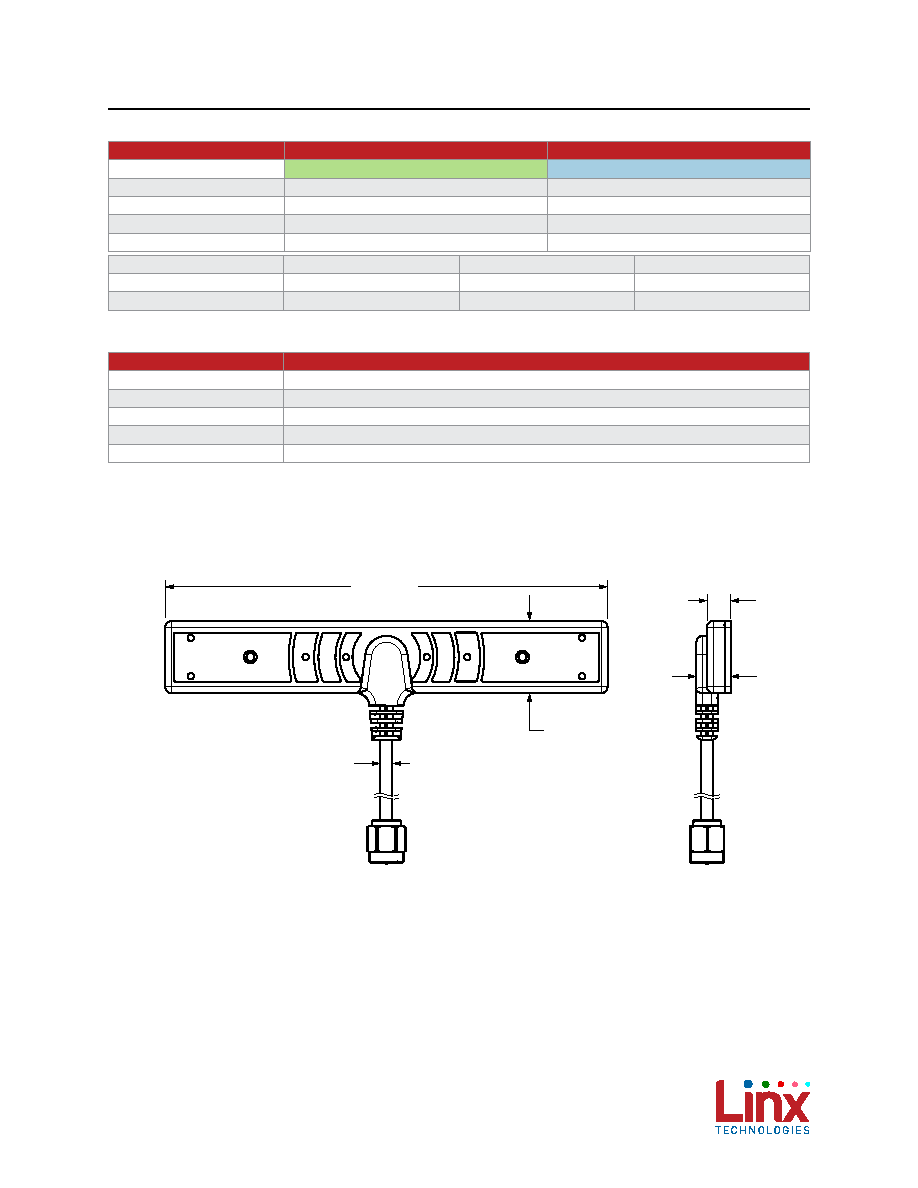

Figure 1 provides dimensions of the ANT-2/5-HDP-2000. The antenna comes with 2 m (78.74 in) of RG-

174/U low-loss coaxial cable terminated by an SMA plug (male pin) or RP-SMA plug (female socket)

connector.

104.0 mm

(4.09 in)

17.0 mm

(0.67 in)

Ø2.8 mm

(0.11 in)

8.0 mm

(0.32 in)

5.5 mm

(0.22 in)

Figure 1. ANT-2/5-HDP-2000 Antenna Dimensions

Antenna Mounting

The remote adhesive-mount HDP industrial series antenna mounts permanently to non-conductive surfaces

using the integrated adhesive patch. The mounting surface should be clean, dry and free of oil residue for

ideal adhesion.

Packaging Information

The HDP industrial series antennas are packaged in bags of 50. Distribution channels may offer alternative

packaging options.

Table 1. Electrical Specifications

ANT-2/5-HDP-2000

2.4 GHz

5 GHz

Frequency Range

2.4 GHz to 2.485 GHz

5.15 GHz to 5.85 GHz

VSWR (max)

1.5

1.4

Peak Gain (dBi)

4.3

2.3

Average Gain (dBi)

-4.6

-8.6

Efficiency (%)

37

15

Polarization

Linear

Radiation

Omnidirectional

Impedance

50

Ω

Max Power

10 W

Wavelength

1/2-wave

Electrical Type

Dipole

Table 2. Mechanical Specifications

ANT-2/5-HDP-2000

Dual Band WiFi

Connection

SMA plug (male pin) or RP-SMA plug (female socket)

Cable

2.0 m (78.74 in) of RG-174/U low-loss coaxial cable

Operating Temp. Range

-40 °C to +85 °C

Weight

42.0 g (1.48 oz)

Dimensions

104.0 mm x 17.0 mm x 5.5 mm (4.09 in x 0.67 in x 0.22 in)
