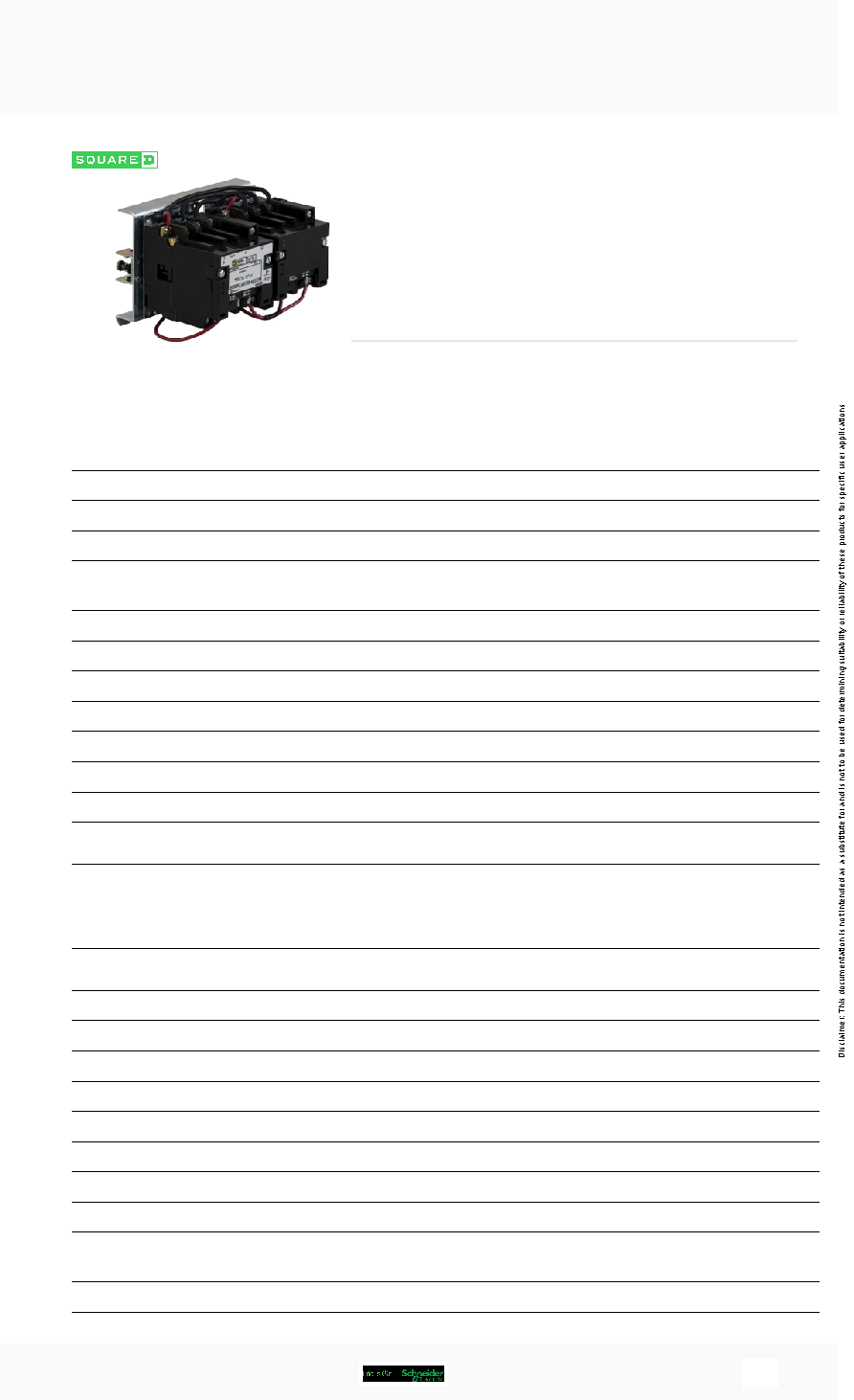

Product data sheet

Specifications

NEMA Contactor, Type S, reversing,

horizontal, Size 1, 27A, 3 HP at 230

VAC, single phase, 2 pole, 120 VAC

coil, open style

8702SCO2V02S

Product availability : Non-Stock - Not normally stocked in

distribution facility

Main

Product Type

Contactor

Product Range

Type S

Contactor Type

Reversing

Complementary

NEMA Size

1

Rated Current

27 A

Number of Poles

2P

Mounting Orientation

Horizontal

Wiring Mode

3 wires

Maximum Voltage Rating

600 V AC

Phase

1 phase

Horsepower Rating

2 HP 115 V AC

3 HP 230 V AC

SCCR

Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC

Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC

Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC

Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC

Coil Voltage

110 V AC 50 Hz

120 V AC 60 Hz

Control Circuit Type

Separate control circuit

Control Units

No control units

Pilot Light

No indicator

Other Equipment

Fuse not supplied

Terminal Type

Screw clamp terminals

Height

5.00 in (127.00 mm)

Width

7.13 in (181.10 mm)

Depth

5.31 in (134.87 mm)

Environment

Enclosure Type

Not rated (open device)

May 19, 2022

1
