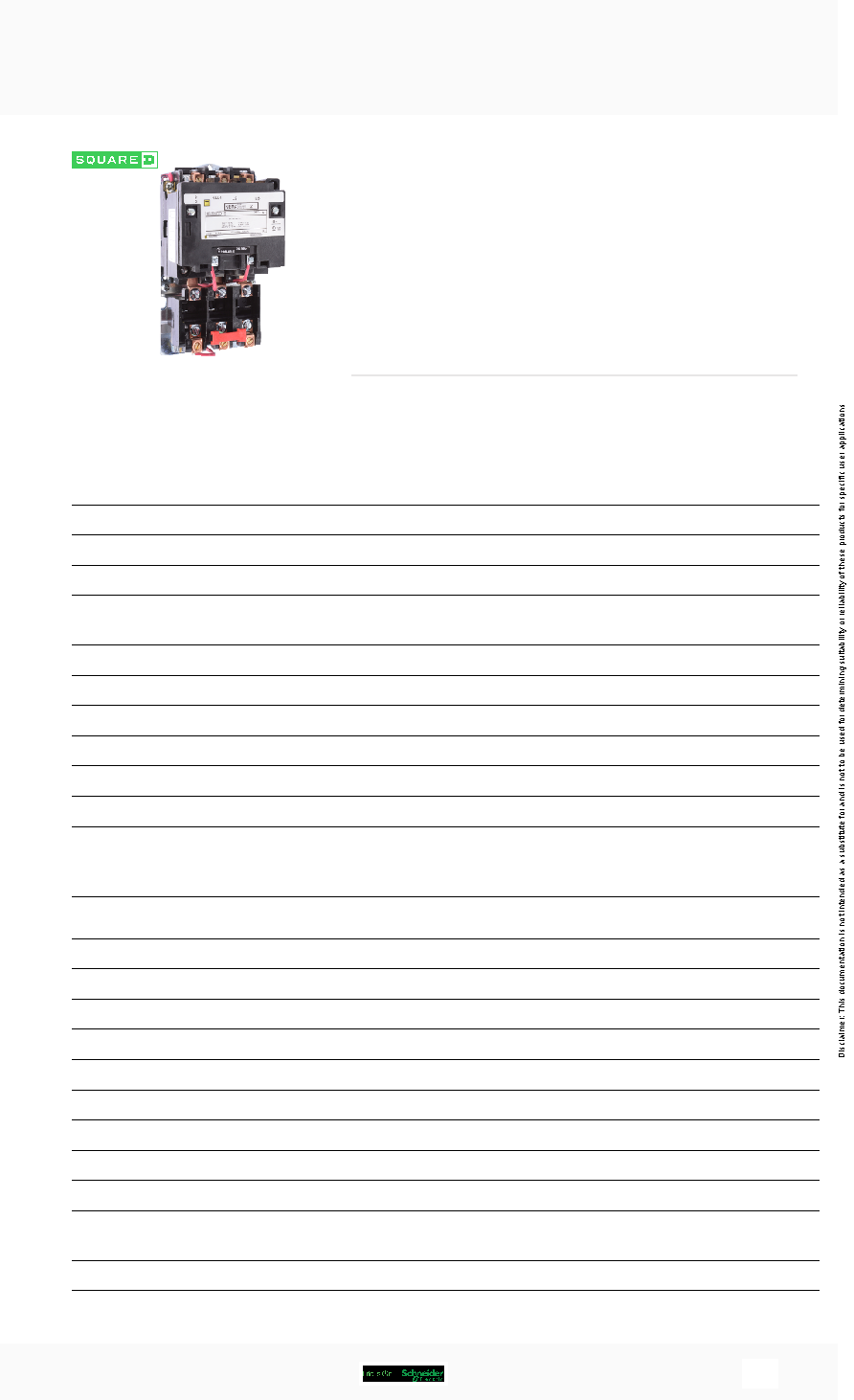

Product data sheet

Specifications

NEMA Motor Starter, Type S,

nonreversing, Size 2, 45A, 25 HP

at 460 VAC, 5 kA SCCR, 2 phase,

4 pole, melting alloy, 24 VAC coil,

open

8536SDO2V01S

Product availability : Non-Stock - Not normally stocked in

distribution facility

Main

Product Type

Motor starter

Product Range

S

Starter Type

Non reversing

Complementary

NEMA Size

2

Rated Current

45 A

Number of Poles

4P

Maximum Voltage Rating

600 V AC

Phase

2 phases

Type of Overload

Melting alloy 2

Horsepower Rating

10 HP 200 V AC

15 HP 230 V AC

25 HP 460 V AC

25 HP 575 V AC

SCCR

Circuit-breaker: 5 kA at 600 V AC

Fuse: 5 kA at 600 V AC

Coil Voltage

24 V AC 60 Hz

Control Circuit Type

Separate control circuit

Control Units

No control units

Pilot Light

Without pilot light

Auxiliary Contacts

Without

Terminal Type

Screw clamp terminals

Height

7.81 in (198.37 mm)

Width

5.63 in (143.00 mm)

Depth

4.94 in (125.48 mm)

Environment

Enclosure Type

Not rated (open device)

Certiﬁcations

UL Listed

Aug 3, 2022

1
