H7CC-A

Counter

Note: 1. If the configuration selection is set to dual counter, CP1 and CP2 input will operate in the same way as the count input (CP1) of UP

(increment) mode.

must be greater than the minimum signal width and

must be at least 1/2 the minimum signal width.

If they are less, a count error of

±1 may occur.

3. Minimum signal width: 16.7 ms (when maximum counting speed = 30 Hz)

100 µs (when maximum counting speed = 5 kHz)

4. The meaning of the H and L symbols in the tables is explained below.

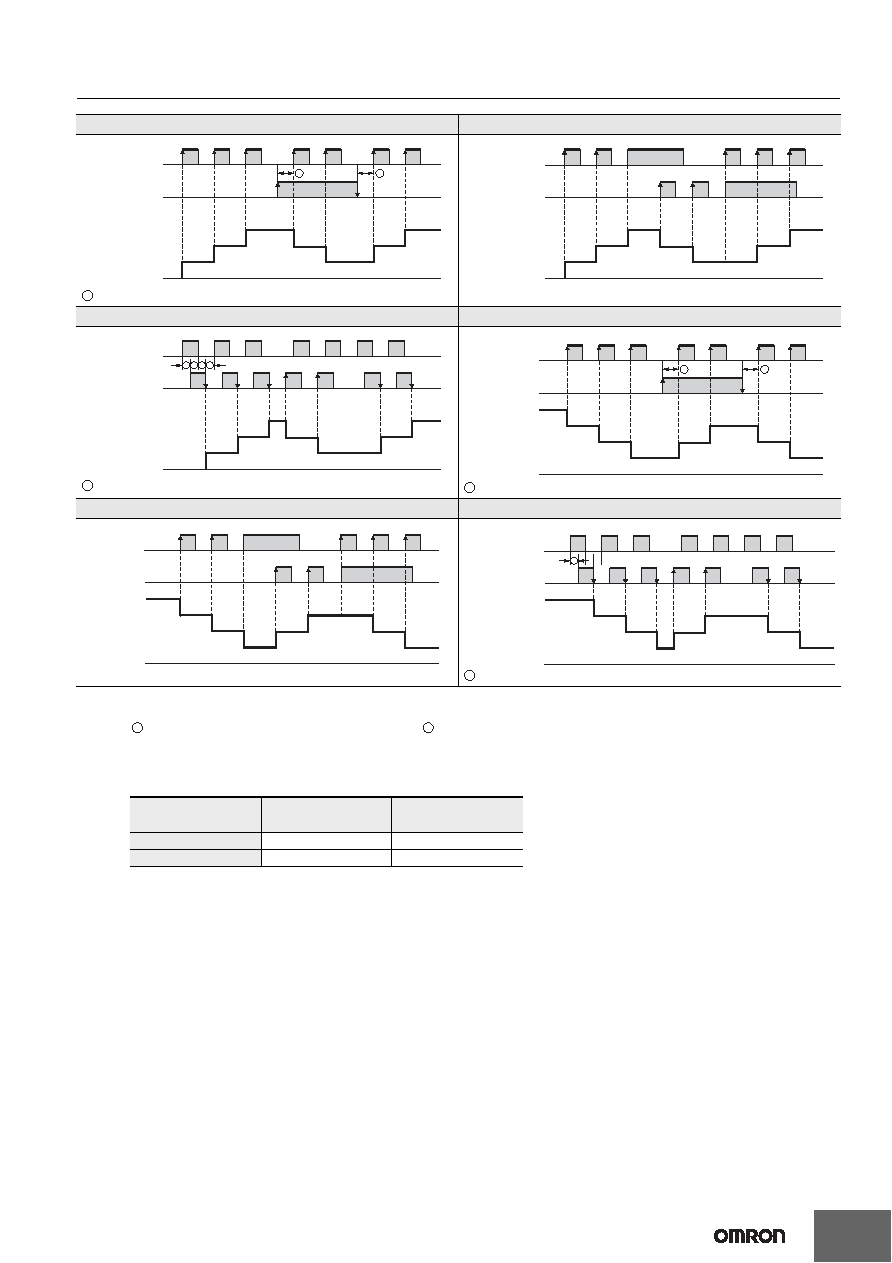

UP/DOWN A Command Input Mode

UP/DOWN B Individual Input Mode

must be greater than the minimum signal width. (See note 2.)

UP/DOWN C Quadrature Input Mode

UP/DOWN D Command Input Mode

must be at least 1/2 the minimum signal width. (See note 2.)

UP/DOWN E Individual Input Mode

UP/DOWN F Quadrature Input Mode

must be at least 1/2 the minimum signal width. (See note 2.)

CP1

CP2

Present value

CP1

CP2

Present value

CP1

CP2

Present value

B B B B

CP1

OFF

CP2

OFF

n-1

n-2

n-1

n-3

Present value

n-1

n-2

n-1

n-3

CP1

OFF

CP2

Present value

OFF

n-1

n-2

n-1

n-3

CP1

OFF

CP2

OFF

Present value

Input method

Symbol

No-voltage input

(NPN input)

Voltage input

(PNP input)

Short-circuit

4.5 to 30 VDC

Open

0 to 2 VDC
