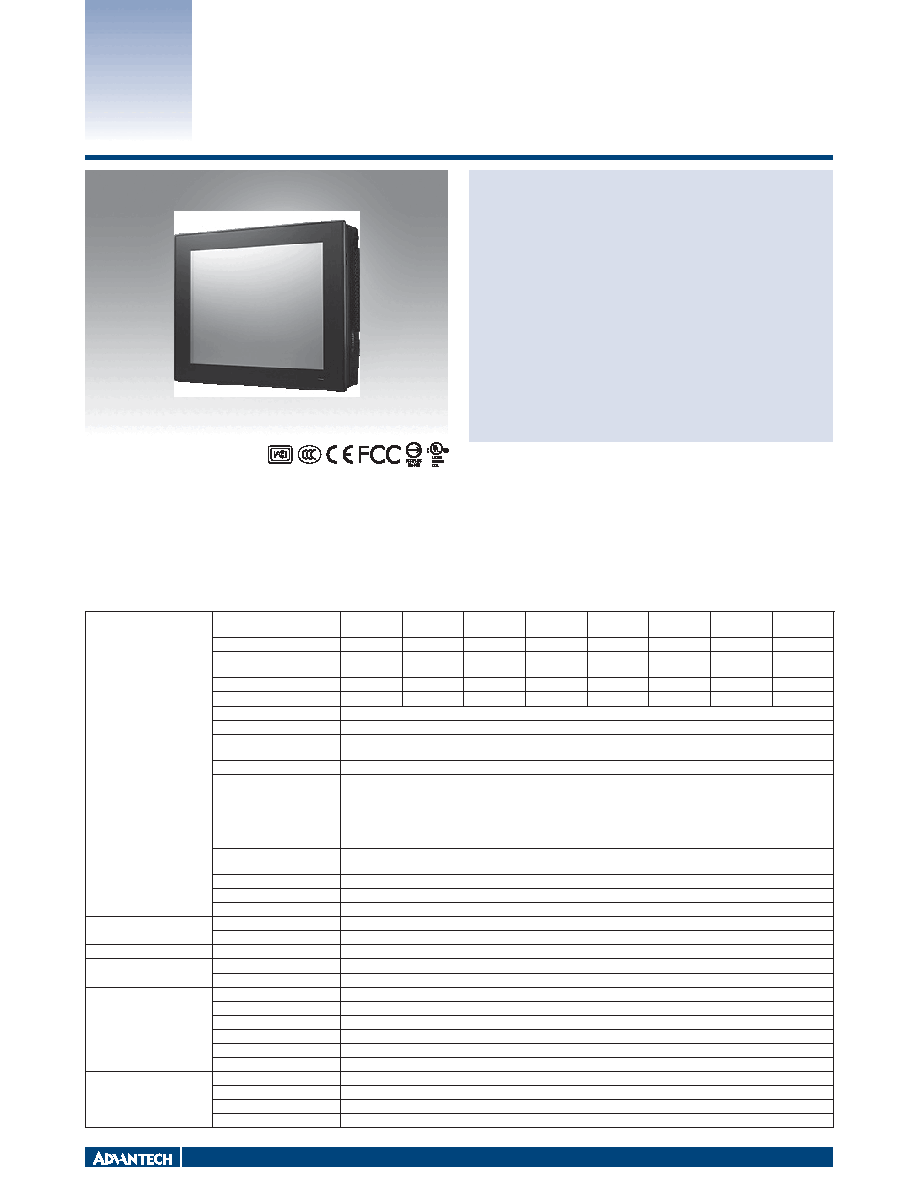

General Panel PCs

Features

PPC-6121

ƒ

12.1" TFT XGA LCD panel with resistive touch control

ƒ

8th/9th generation Intel® Core™ i/Celeron® processor (thermal power design:

35W)

ƒ

2 x 260-pin SO-DIMM DDR4 2666 MHz (max. 32 GB)

ƒ

1 x M.2 2230 (E key)

ƒ

1 x mSATA bay (SATA SSD + mSATA support RAID 0&1)

ƒ

1 x Optional TPM2.0

ƒ

1 x Optional PCI/PCIe x4 expansion kit

ƒ

1 x Isolated RS422/485 (terminal block)

ƒ

1 x VGA and 1 x HDMI

ƒ

Dual GbE with Intel® AMT12.0 support

12.1" Panel PC with 8/9th Generation

Intel® Core™ i/Celeron® Processor

Introduction

The PPC-6121 is a 12.1" color TFT LCD panel PC that supports 8th/9th generation Intel® Core™ i/Celeron® processors for high-performance computing. Featuring various connectors,

PPC-6121 can be easily installed to support diverse application. Additionally, the system’s user-friendly interface makes it ideal for information-based applications. The provision

of 4 x RS-232, 1 x isolated RS422/485, and dual Intel® Gigabit Ethernet connectors with Intel® AMT support, as well as 1 x expansion slot, makes PPC-6121 a highly reliable and

versatile display platform.

Specifications

Processor System

CPU

I7-8700T

i5-8500T

I3-8100T

Pentium

G5400T

Celeron

G4900T

i7-9700TE

i5-9500TE

i3-9100TE

Cores

6

6

4

2

2

8

6

4

Frequency

2.4 GHz (up

to 4.0 GHz)

2.1 GHz (up

to 3.5 GHz)

3.1 GHz

3.1 GHz

2.9 GHz

1.8 GHz (up

to 3.8GHz)

2.2 GHz (up

to 3.6GHz)

2.2 GHz (up

to 3.2GHz)

L3 Cache

12 MB

9 MB

6 MB

4 MB

2 MB

12 MB

9 MB

6 MB

TDP

35W

35W

35W

35W

35W

35 W

35 W

35 W

Chipset

Q370

Memory

2 x 260-pin SO-DIMM DDR4 2666 MHz (max. 32 GB)

Storage

1 x 2.5" SATA bay;

1 x mSATA bay (SATA SSD+mSATA support RAID 0&1)

Network (LAN)

2 x 10/100/1000 Mbps Ethernet (Intel I219-LM + Intel I211) , supports Intel AMT 12.0 (only i7 /i5 support)

I/O ports

4 x RS-232, 1 x RS-422/485 with 1K VDC isolation,

4 x USB3.1

1 x DB15 VGA, 1 x HDMI 1.4

1 x Mic in, 1 x Line out

1 x GPIO(TTL, 8 pin programmable)

1 x TPM2.0 (optional)

Expansion

1 x M.2 2230(E key)

1 x PCIe x4 or 1 x PCI (optional)

Watchdog Timer

255 timer levels; setup by software

Speaker

2 x 1W

SYS Fan

40 x 40 x 10 mm (1.57 x 1.57 x 0.39 in)

Physical Characteristics

Dimensions

317 x 246 x 73mm(12.48 x 9.69 x 2.87 in)

Weight

3.8 kg (8.38 lb)

OS Support

OS Support

Microsoft® Windows 10 64bit, Linux (Ubuntu; Fedora 28)

Power Consumption

Input Voltage

12 ~ 30VDC

Power Consumption

120W (Burn-in test 8.1, Windows 10 64bit, i7-8700T, 16G RAM, 500G HDD)

LCD Display

Display Type

12.1" TFT LCD panel

Max. Resolution

1024 x 768

Viewing Angle

89 (left), 89 (right), 89 (up), 89 (down)

Luminance (cd/m2)

600

Contrast Ratio

1000

Backlight Lifetime

50,000 hr (min.)

Touchscreen

Touch Type

5-wire resistive

Light Transmission

80±5% at 550nm wavelength

Controller

USB interface

Durability (Touches)

Greater than 35 million touches in one location without failure

All product specifications are subject to change without notice.

Last updated: 14-Apr-2021
