T48C862M-R3 datasheet(28/107 Pages) ATMEL

28 / 107 page

T48C862-R3

4554A–4BMCU–02/03

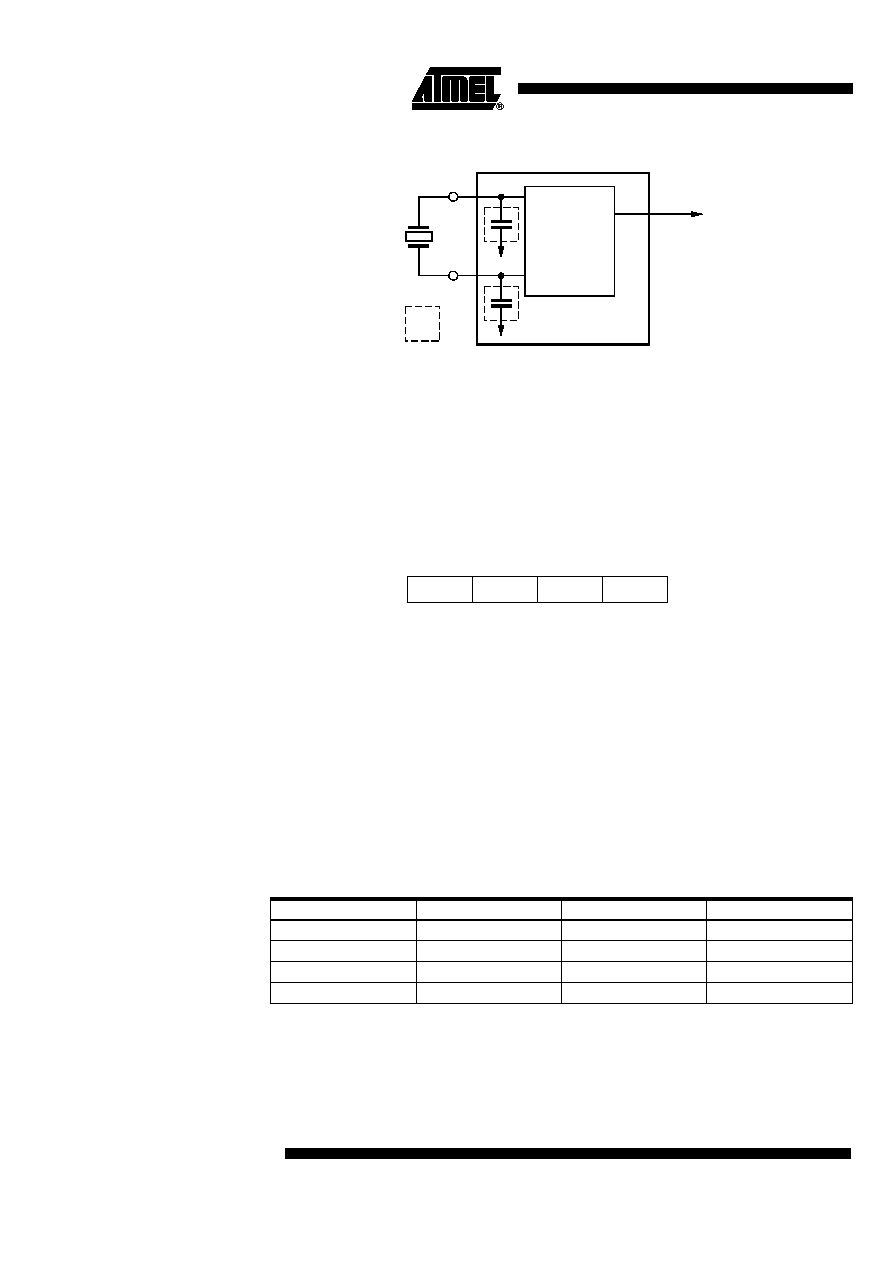

Figure 26. 32-kHz Crystal Oscillator

Clock Management

The clock management register controls the system clock divider and synchronization

stage. Writing to this register triggers the synchronization cycle.

Clock Management Register

(CM)

Auxiliary register address: "3"hex

32-kHz

oscillator

32Out

OSC1

OSC2

Oscin

Oscout

XTAL

32 kHz

Configurable

Bit 3Bit 2Bit 1Bit 0

CM:

NSTOP

CCS

CSS1

CSS0

Reset value: 1111b

NSTOP

Not STOP peripheral clock

NSTOP = 0, stops the peripheral clock while the core is in SLEEP mode

NSTOP = 1, enables the peripheral clock while the core is in SLEEP mode

CCS

Core Clock Select

CCS = 1, the internal RC-oscillator 1 generates SYSCL

CCS = 0, the 4-MHz crystal oscillator, the 32-kHz crystal oscillator, an external

clock source or the internal RC-oscillator 2 with the external resistor at OSC1

generates SYSCL dependent on the setting of OS0 and OS1 in the system

configuration register

CSS1

Core Speed Select 1

CSS0

Core Speed Select 0

CSS1

CSS0

Divider

Note

118

Reset value

104

012
