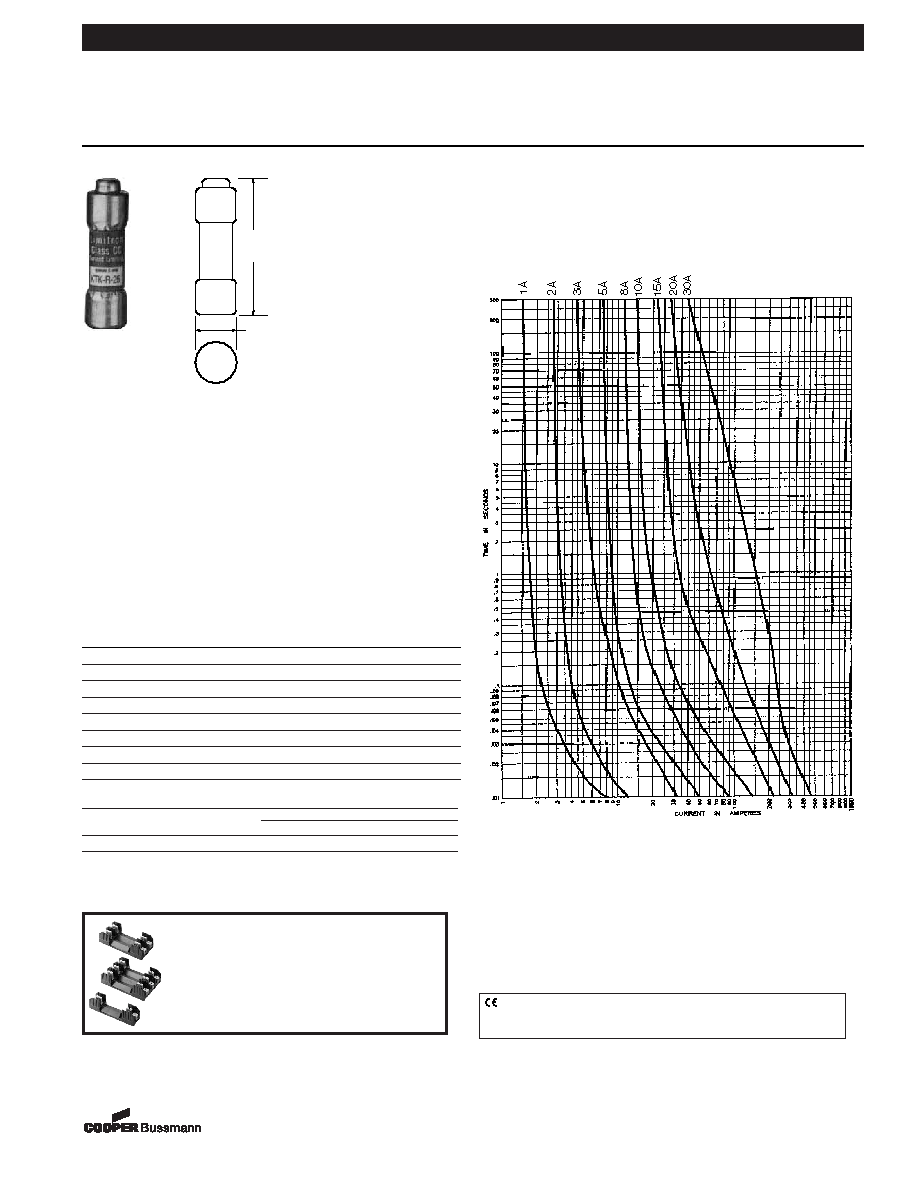

LIMITRON®

KTK-R

Fast-Acting Fuses

13/32” x 1-1/2”, Class CC - 600 Volt, 1/10 - 30 Amps

Form No. KTK-R

Page 1 of 1

Data Sheet: 1015

Bussmann®

3-19-03

SB03078

The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this Data Sheet are by definition uncontrolled. This bulletin is intended to clearly

present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products

and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been selected, it

should be tested by the user in all possible applications.

Carton Quantity and Weight

Ampere

Carton

Weight*

Ratings

Qty.

Lbs.

Kg.

1/10–30

10

.180

.082

*Weight per carton.

Electrical Ratings (Catalog Symbol and Amperes)

600Vac - UL Listed & C.S.A.

KTK-R-1/10

KTK-R-6/10

KTK-R-3-1/2

KTK-R-10

KTK-R-1/8

KTK-R-3/4

KTK-R-4

KTK-R-12

KTK-R-2/10

KTK-R-1

KTK-R-5

KTK-R-15

KTK-R-1/4

KTK-R-1-1/2

KTK-R-6

KTK-R-20

KTK-R-3/10

KTK-R-2

KTK-R-7

KTK-R-25

KTK-R-4/10

KTK-R-2-1/2

KTK-R-8

KTK-R-30

KTK-R-1/2

KTK-R-3

KTK-R-9

–

1.5

(

±0.031)

(38.1mm)

.41

(

±0.005)

(10.3mm)

Catalog Symbol: KTK-R

Fast-Acting Branch Circuit Fuse:

1/10 TO 30A

Voltage Rating:

600Vac (or less): 0-30A

Interrupting Rating:

ac: 200,000A RMS Sym.

UL LIisted, STD. 248-4, Class CC,

(Guide #JDDZ, File #E4273)

CSA Certified, C22.2 NO. 248.4, (File #53787—Class

#1422-02)

• LIMITRON® fast-acting fuse.

• Melamine tube. Nickel-plated brass endcaps.

• U.L. Listed for branch circuit protection.

• Rejection type; for both standard holders or those which

reject other type fuses.

Time-Current Characteristic Curves–Average Melt

Dimensional Data

CE logo denotes compliance with European Union Low Voltage Directive

(50-1000Vac, 75-1500Vdc). Refer to Data Sheet: 8002 or contact

Bussmann Application Engineering at 636-527-1270 for more information.

Recommended fuseblocks/fuseholders for

Class CC 600V fuses

See Data Sheets listed below

• Open fuseblocks - 1105

• Finger-safe fuseholders - 1109, 1102, 1103, 1151

• Panel-mount fuseholders - 2114, 2113

• In-line fuseholders - 2126
