STLC3075 Arkusz danych(PDF) 21 Page - STMicroelectronics

Numer części STLC3075
Szczegółowy opis  INTEGRATED POTS INTERFACE FOR HOME ACCESS GATEWAY AND WLL
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Producent  STMICROELECTRONICS [STMicroelectronics]
Strona internetowa  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

STLC3075 Arkusz danych(HTML) 21 Page - STMicroelectronics

Back Button STLC3075 Datasheet HTML 17Page - STMicroelectronics STLC3075 Datasheet HTML 18Page - STMicroelectronics STLC3075 Datasheet HTML 19Page - STMicroelectronics STLC3075 Datasheet HTML 20Page - STMicroelectronics STLC3075 Datasheet HTML 21Page - STMicroelectronics STLC3075 Datasheet HTML 22Page - STMicroelectronics STLC3075 Datasheet HTML 23Page - STMicroelectronics STLC3075 Datasheet HTML 24Page - STMicroelectronics STLC3075 Datasheet HTML 25Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 21 / 26 page
background image
21/26
STLC3075

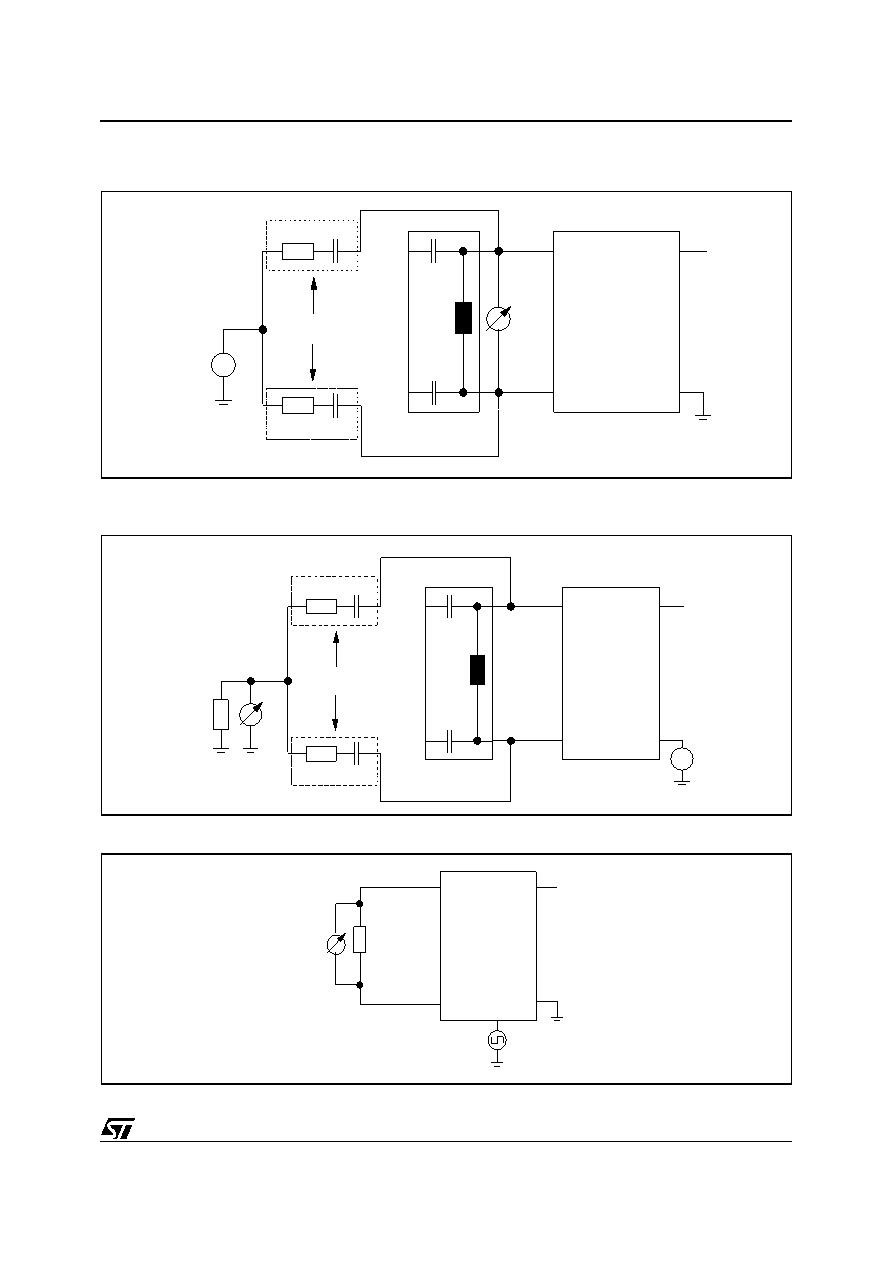

Figure 18. L/T Longitudinal to Transversal Conversion
L/T = 20Log|Vcm/Vl|
Figure 19. T/L Transversal to Longitudinal Conversion
T/L = 20Log|Vrx/Vcm|
Figure 20. VTTX Metering Pulse level on line
TIP
RING
RX
TX
STLC3075
application
circuit
W&G GH1
Vcm
Vl
100 F
100 F
100mA
DC max
Zin = 100K
200 to 6kHz
300ohm
100 F
300ohm
100 F
Impedance matching
better than 0.1%
600ohm
TIP
RING
RX
TX
STLC3075
application
circuit
Vcm
W&G GH1
100 F
100 F
100mA
DC max
Zin = 100K
200 to 6kHz
300ohm
100 F
300ohm
100 F
Impedance matching
better than 0.1%
Vrx
TIP
RING
RX
TX
STLC3075
application
circuit
fttx (12 or 16kHz)
Vlttx
200ohm
CKTTX
