500mV to 5.5V Input nanoPower
Boost Converter with Short-Circuit
Protection
and True Shutdown
MAX18000
www.analog.com
Analog Devices | 16
GND
OUT
EN
0402
0603
LEGEND
VIAS
0805
RSEL
LX
IN

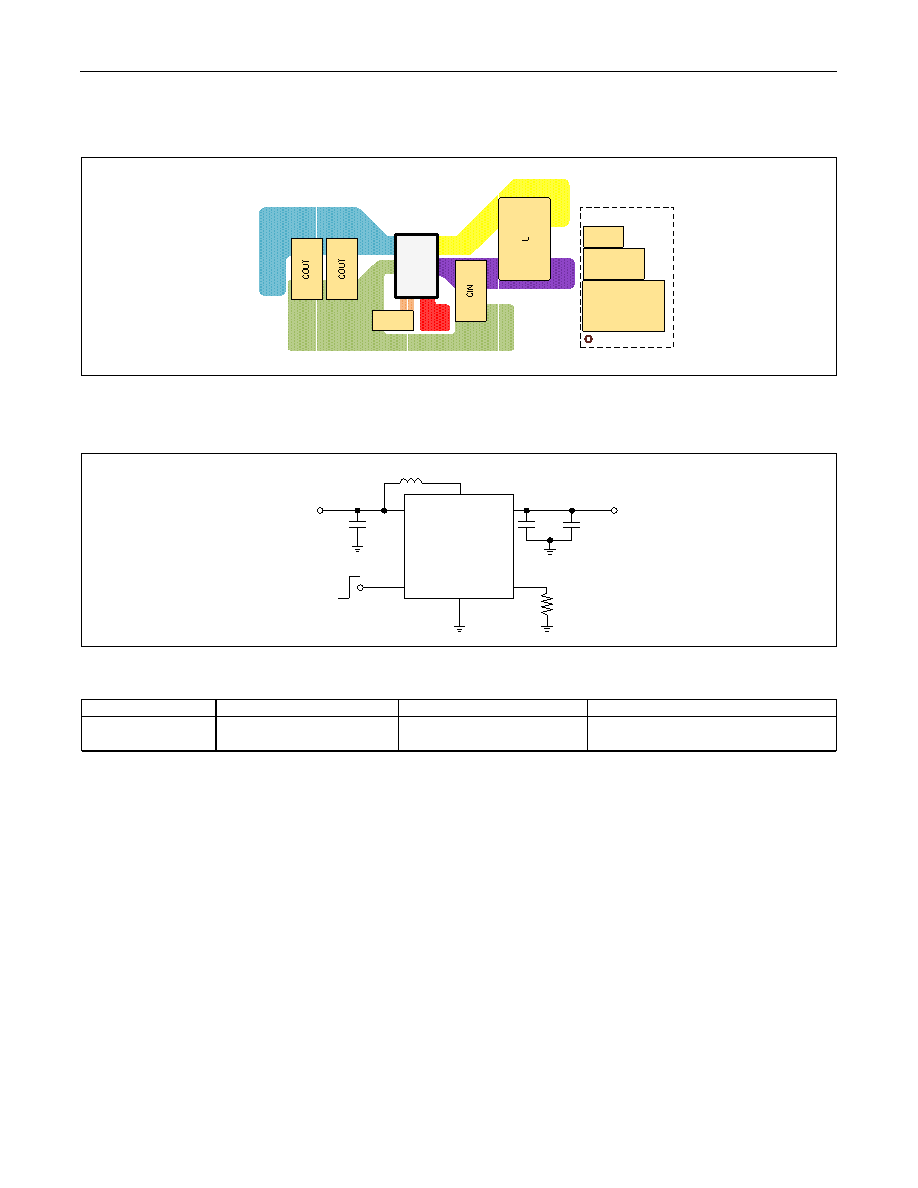

Figure 5. PCB Layout Recommendation for WLP Package
Typical Application Diagram
RSEL
OUT
RSEL
IN
LX
EN
GND
0.5V TO 5.5V
DC SOURCE
VOUT
2.5V TO 5.5V
MAX18000
LOW (OFF)
HIGH (ON)
L
CIN
10V, X5R,
0603, 22µF
COUT
10V, X5R,
0603, 2 x 22µF
Ordering Information
PART NUMBER
TEMPERATURE RANGE
PACKAGE
FEATURES
MAX18000AWT+T
-40°C to +125°C
6-Bump WLP, 1.05mm x
1.55mm
3.6A IPEAK, nanoPower PFM mode,
True Shutdown/Active Discharge
+Denotes lead(Pb)-free/RoHS packaging.
T = Tape and reel
