Data Sheet

ADL5308

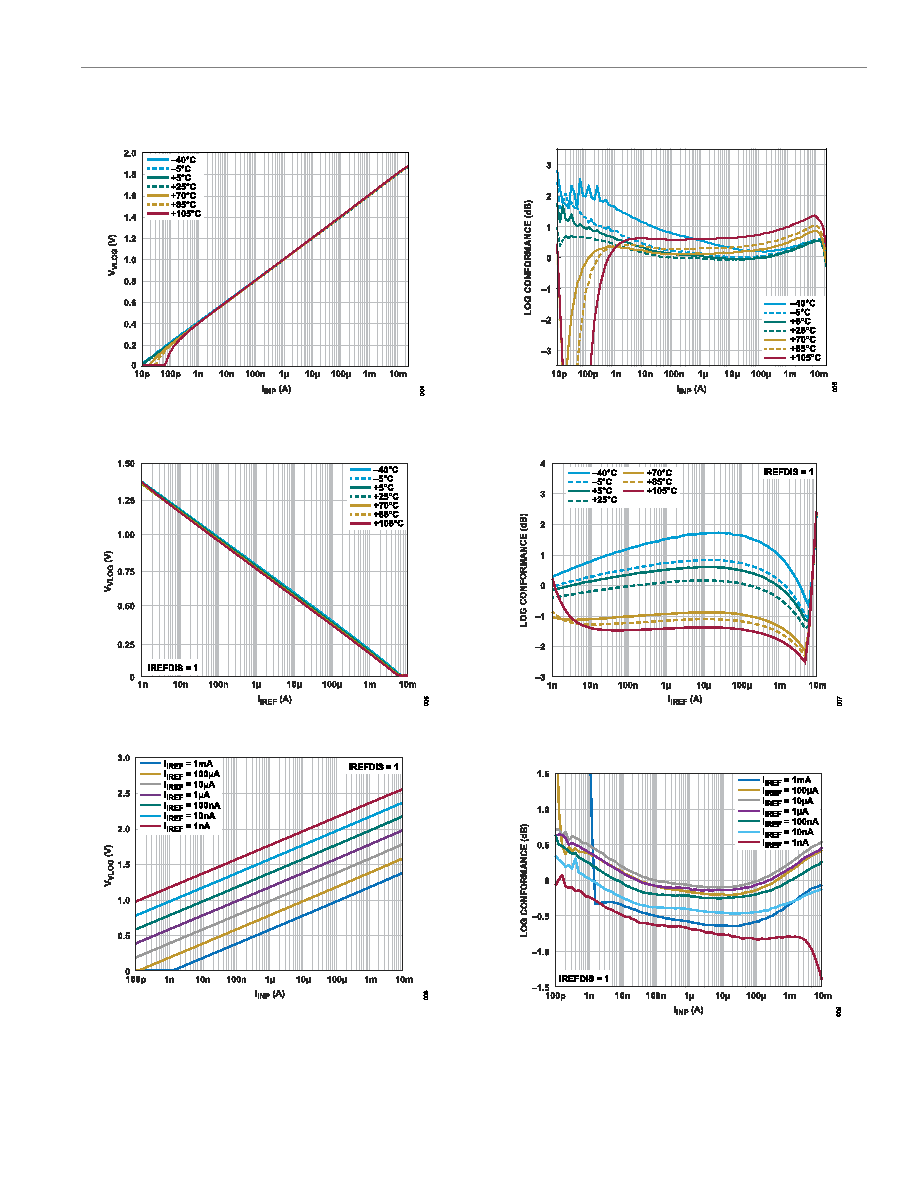

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 7 of 22

VCC = 5.0 V, TA = 25°C, Input current (IINP) = 10 nA, default register settings, unless otherwise noted.

Figure 4. VVLOG vs. IINP at Various Temperatures with Internal Trimmed IIREF

Value

Figure 5. VVLOG vs. IIREF at Various Temperatures for IINP = 10 nA

Figure 6. VVLOG vs. IINP at Various IIREF Values in Decades Steps

Figure 7. Log Conformance Error vs. IINP at Various Temperatures,

Normalized to 25°C

Figure 8. Log Conformance Error vs. IIREF at Various Temperatures for IINP =

10 nA, Normalized to 25°C

Figure 9. Log Conformance Error vs. IINP at Various IIREF Values in Decade

Steps
