AD8551/AD8552/AD8554
Rev. C | Page 12 of 24
5
FREQUENCY (kHz)
0
32
48
64
80
96
112
16
VSY = 5V
RS = 0Ω
10
15
20
25

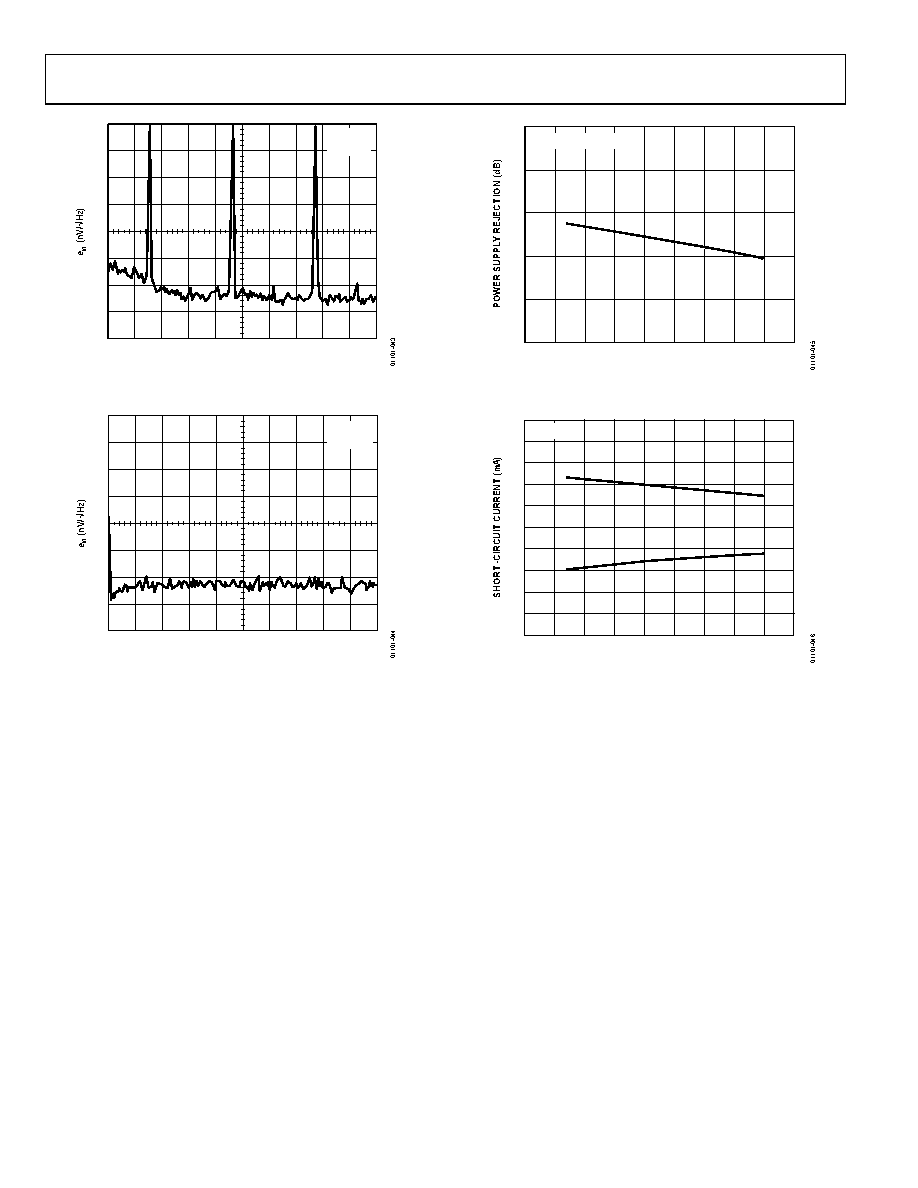

Figure 43. Voltage Noise Density at 5 V from 0 Hz to 25 kHz
FREQUENCY (Hz)
0
48
72
96
120
144
168
24
VSY = 5V
RS = 0Ω
510
Figure 44. Voltage Noise Density at 5 V from 0 Hz to 10 Hz
TEMPERATURE (°C)
150
145
125
140
135
130
–75
–50
–25
0
25
50
75
100
125
150
VSY = 2.7V TO 5.5V
Figure 45. Power Supply Rejection vs. Temperature
–10
50
30
–50
10
–40
–30
–20
0
20
40
TEMPERATURE (°C)
–75
–50
–25
0
25
50
75
100
125
150
VSY = 2.7V
ISC–
ISC+
Figure 46. Output Short-Circuit Current vs. Temperature
