ADL5330

Rev. A | Page 6 of 24

PIN CONFIGURATION AND FUNCTION DESCRIPTIONS

VPS2

COM2

OPLO

OPHI

COM2

VPS2

VPS1

COM1

INLO

INHI

COM1

VPS1

ADL5330

TOP VIEW

(Not to Scale)

PIN 1

INDICATOR

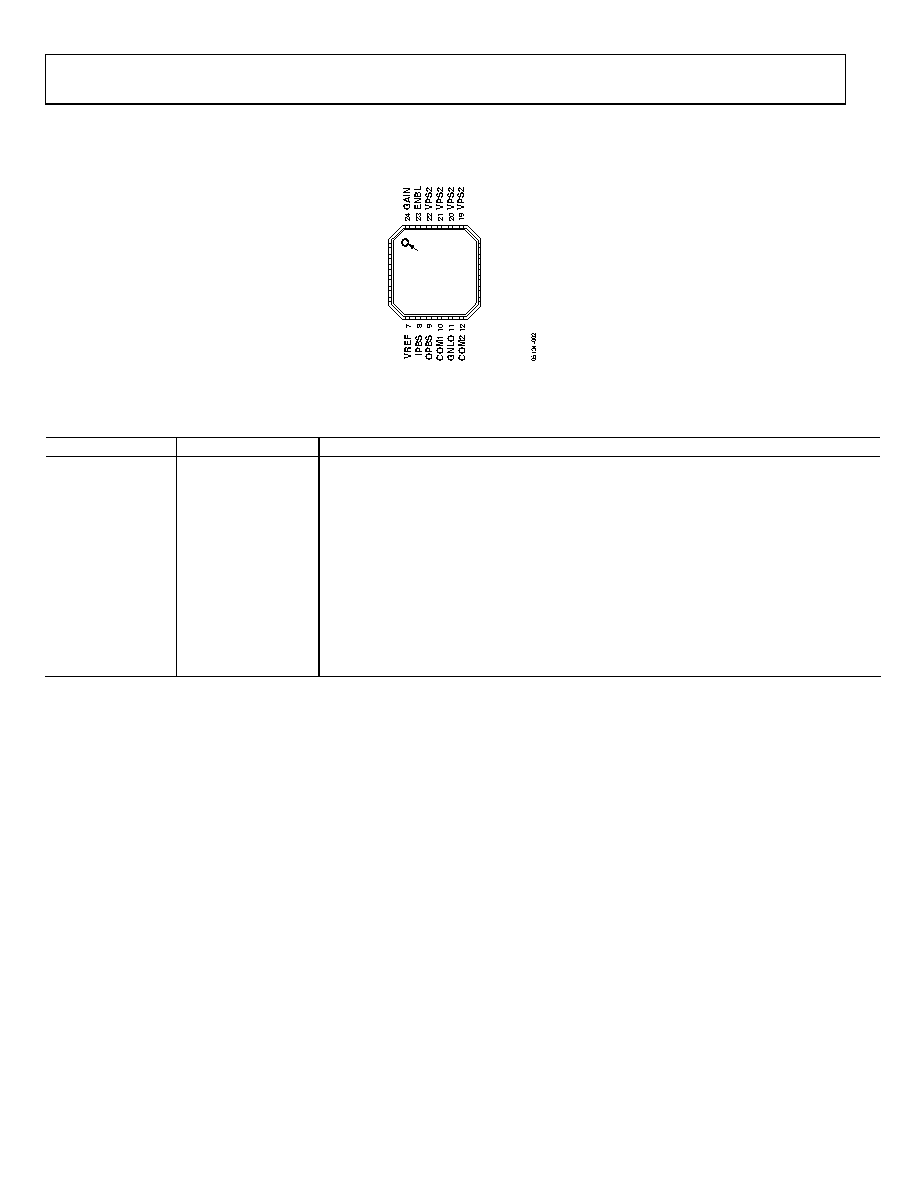

Figure 2. Pin Configuration

Table 3. Pin Function Descriptions

Pin No.

Mnemonic

Descriptions

1, 6, 13, 18 to 22

VPS1, VPS2

Positive Supply. Nominally equal to 5 V.

2, 5, 10

COM1

Common for Input Stage.

3, 4

INHI, INLO

Differential Inputs, AC-Coupled.

VREF

Voltage Reference. Output at 1.5 V; normally ac-coupled to ground.

IPBS

Input Bias. Normally ac-coupled to ground.

OPBS

Output Bias. AC-Coupled to ground.

GNLO

Gain Control Common. Connect to ground.

12, 14, 17

COM2

Common for Output Stage.

OPLO

Low Side of Differential Output. Bias to VP with RF chokes.

OPHI

High Side of Differential Output. Bias to VP with RF chokes.

ENBL

Device Enable. Apply logic high for normal operation.

GAIN

Gain Control Voltage Input. Nominal range 0 V to 1.4 V.
