ams Datasheet
Document Feedback
[v1-00] 2017-Feb-16
AS7220 − Application Information
PCB Layout
Suggested PCB pad layout guidelines for the LGA package are
shown. Flash Gold is recommended as a surface finish for the
landing pads.

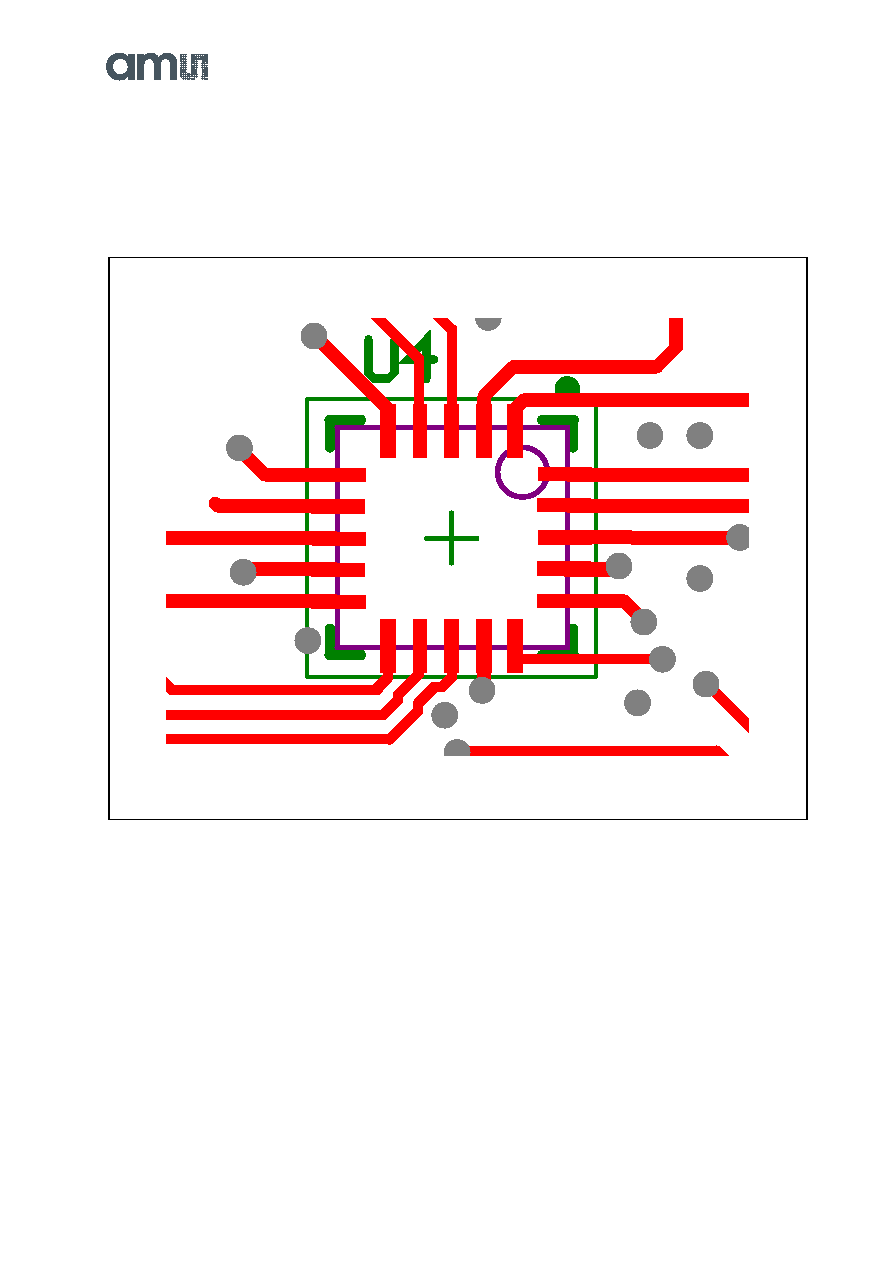

Figure 22:
Typical Layout Routing
In order to prevent interference, avoid trace routing
feedthroughs with exposure directly under the AS7220. An
example routing is illustrated in the diagram.
The AS7220 Smart Lighting Integration Kit (SLIK) demo board
with schematic and PCB layout documentation is available from
ams for additional design information.
