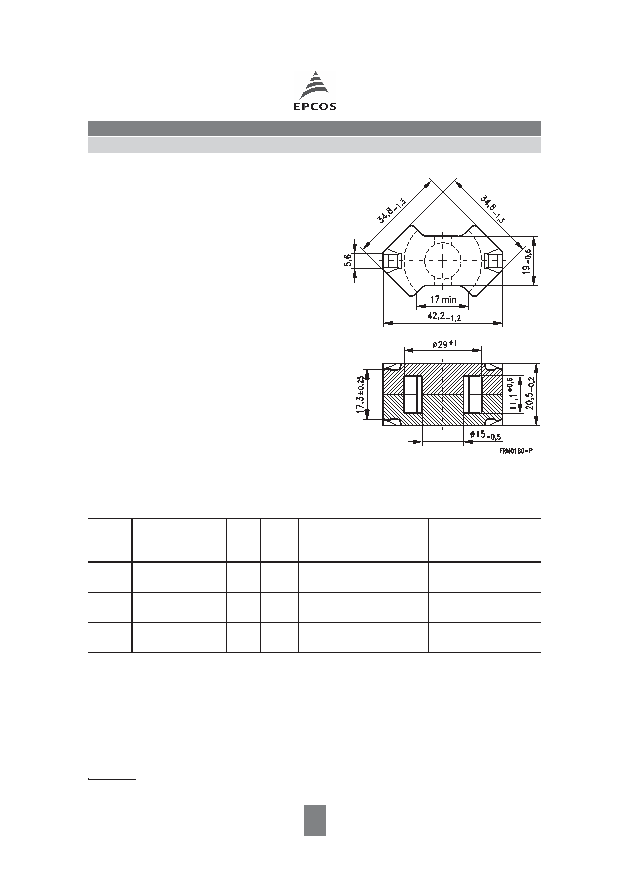

1 / 2 page

256 08/01

I In accordance with IEC 61860

I For compact transformers

I Without center hole

I RM cores are supplied in sets

Magnetic characteristics (per set)

Σl/A = 0,25 mm–1

le

= 50,9 mm

Ae

= 201 mm2

Amin = 170 mm2

Ve

= 10 230 mm3

Approx. weight 55 g/set

Ungapped

Material

AL value

nH

µe

AL1min

nH

PV

W/set

Ordering code

N49

5100 + 30/– 20 %

1020

3500

< 2,0

(50 mT, 500 kHz, 100

°C)

B65887-P-R49

N921)

5400 + 30/– 20 %

1100

4500

< 6,1

(200 mT, 100 kHz, 100

°C)

B65887-P-R92

N87

7100 + 30/– 20 %

1430

4500

< 5,5

(200 mT, 100 kHz, 100

°C)

B65887-P-R87

1) Preliminary data

B65887-P

Core

RM 14 »Low Profile«
