DATA SHEET

SE4150L: GPS Receiver IC

Preliminary Datasheet

Skyworks Solutions, Inc.

• Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com

202445B • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • July 1, 2019

21

Recommended PCB Footprint – Stencil Apertures Pattern

The stencil apertures design below is only for reference.

It is based on a 6mil [0.15mm] stencil thickness with apertures oversized by 1mil [0.025mm] on the pad metal.

The user should modify the design layout in order to meet their particular solder fillet & solder joint reliability

requirements.

All dimensions in the figure below are in mm.

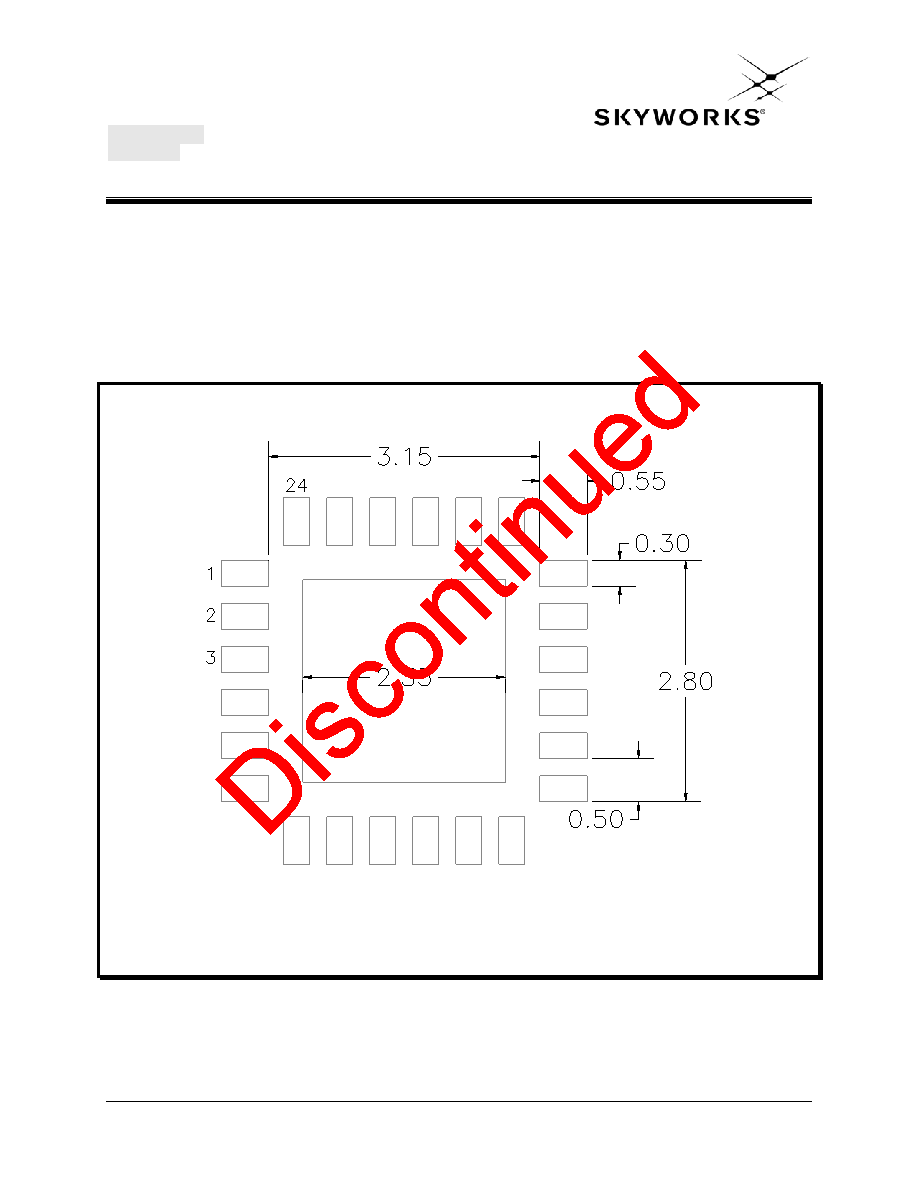

SE4150L QFN 24-pin [4x4mm] PCB Footprint – Stencil Pattern

Scale 20:1

Units in mm
