Mounting assembly for printed circuit boards

Terminal carrier

Material:

GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:

F

max. operating temperature 155 °C), color code gray

Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s

Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3,5 s

Yoke

Spring yoke, made of nickel silver (0,6 mm), with ground terminal

Complete mounting assembly (10 solder terminals)

Ordering code: B65615-B1

a) Yoke

b) Terminal carrier with 10 solder terminals

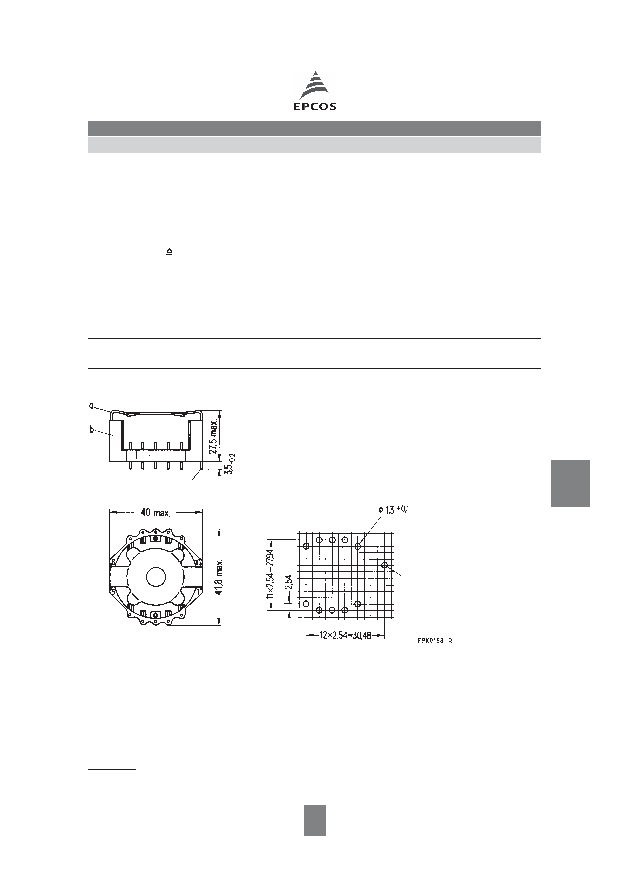

Hole arrangement

View in mounting direction

Ground

Ground terminal

B65615

Accessories

P 36

× 22
