CUI DEVICES | SERIES: SDF-J | DESCRIPTION: STANDARD DIN CONNECTOR
date 08/05/2022 | page 8 of 9
cuidevices.com

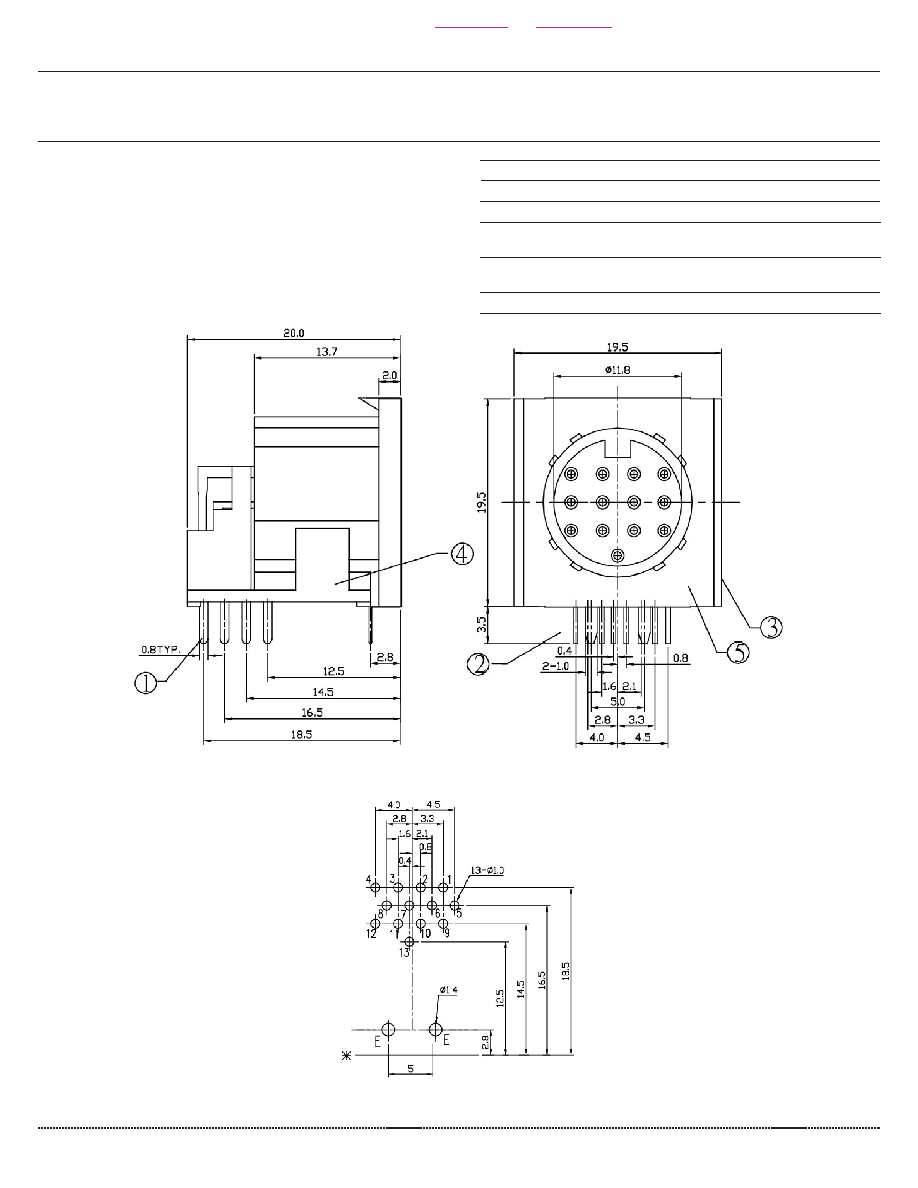

MECHANICAL DRAWING (SDF-130J)
MATERIAL
PLATING
1
terminal
phosphor bronze
silver
2
ground contact
phosphor bronze
silver
3
housing
PBT 4815
UL94V-0
black
4
cover
PBT 4815
UL94V-0
black
5
sealed plate
copper alloy
copper/tin
units: mm
tolerance: ±0.30 mm
PCB: ±0.05 mm
Recommended PCB Layout
Top View
Additional Resources: Product Page | PCB Footprint
